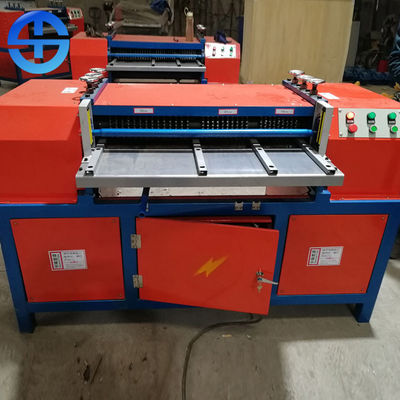

Electric Drive Red 3 Kw + 4kw Radiator Recycling Machine Aluminum Radiator Separating Machine
Product Details:
| Place of Origin: | Henan, China (Mainland) |
| Brand Name: | TMS |
| Certification: | CE, CO, ISO |
| Model Number: | TMS-017 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set/Sets |
|---|---|
| Price: | US $4,000-6,500 / Sets |
| Packaging Details: | aluminum radiator separating machine is packed by ply wooden case which meet export standard or full container for large quantity |
| Supply Ability: | 50 Set/Sets per Month aluminum radiator separating machine |
|
Detail Information |
|||
| Condition: | New | Name: | Aluminum Radiator Separating Machine |
|---|---|---|---|
| Power: | 3 Kw+4 Kw | Capacity: | 2000-3000 Kg/day |
| Dimension: | 1800*800*1200 Mm | Weight: | 650 Kg |
| Function: | Separator Copper And Aluminum | Voltage: | 380v/50HZ(as Customers' Request ) |
| Application: | Scrap Radiators | Warranty: | 12 Months |
| Color: | Customer Requirement | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
| High Light: | copper wire granulator separator,scrap metal granulators |
||
Product Description
Product Description
Aluminum radiator separating machine is designed to strip and separate the scrap radiator for recycling copper and aluminum with high efficiency and stable performance. There are three kinds of blade center distance: 19mm, 21mm and 25mm; that is to say it can strip the radiator whose copper tube center distance is 19mm, 21mm or 25mm.
Before processed, the radiators shall be cut with a band saw into pieces of certain width. It can separate one layer or two layers radiators. When radiators are more than two layers, it will be cut into one layer or two layers by band saw machine.
Main Features:

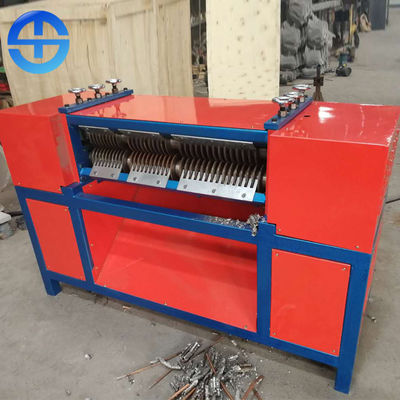

This kind of machine is composed of motor, reduction box, rack, press roller, blade, and pinch roller and so on. The copper and aluminum of the radiator are separated by the cut of the blade. After separated, the copper pipe is stay the same, and the aluminum is irregular pieces.
Working Principle:
After starting motor, the vee belt drives the compression roller, pinch roller, and blade to rotate through the reduction box. The raw material is compacted and sent to the fly-cutter blade by pinch roller. Then, the radiator is cut up by the fly-cutter blade, the copper pipe is separated, and the aluminum scattered network is cut up.
| Model | Dimension | Capacity | Power | Weight | Motor |
| TMS-017 | 1800*800*1200 mm | 2000-3000 kg/day | 3+4 kw | 650kg | customised |
Aluminum radiator separating machine is packed by export standard ply wooden case. It is solidly and can not broken during transportation.
1. Is there quick-wear part on the machine?
The spare part of the machine is blades, their use life is more than 2 years, and we could also supply blade sharping machine to you for maintenance.
2. How many layers of radiator can separat for this machine?
This machine can separate one and two laryers. More than 2 layers, the band saw machine will be used to cut it into one or two layers.
3. Is the machine easy to operate? How many workers required to operate it?
We design precise but simple control system for the machine. And one or two worker is required.
