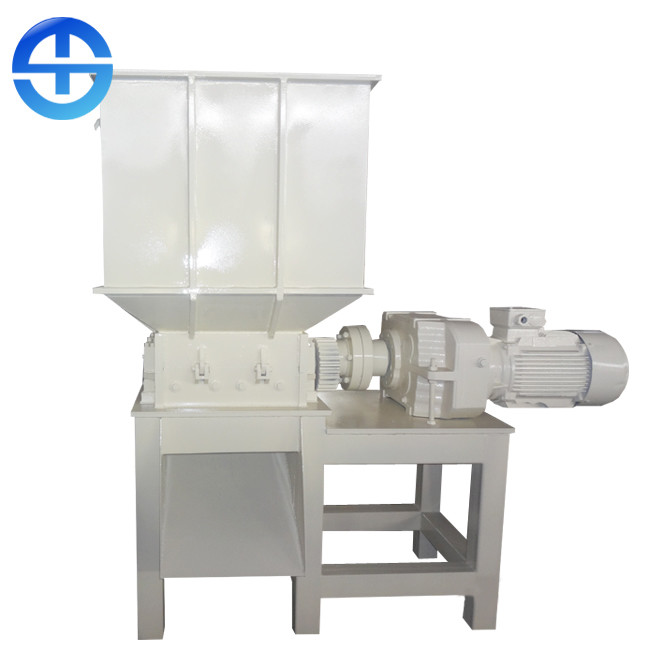

High Efficiency Dual Shaft Shredder Steel Scrap Shredder Machine For Recycling

Minimum Order Quantity : 1 set Price : negotiable
Packaging Details : Ply wooden case or loaded into a full container Delivery Time : 10 work days
Payment Terms : L/C, T/T, Western Union Supply Ability : 50 sets per month
Place of Origin: Henan, China (Mainland) Brand Name: TMS
Certification: CE, ISO Model Number: TMS-500

Detail Information

Name: Steel Scrap Shredder Application: Copper, Aluminum, Woood Etc
Power: 22kw*2 Capacity: 2-3 Ton/h
Weight: 4500kg Speed: 40 R/min
Size: 3100*1500*1800mm Type: Double Shaft
Function: Shredding
High Light:

double shaft shredder machine

,

two shaft shredder

Product Description

Widely applied 1.5-2 ton per hour steel scrap shredder machine


Machine Description

Steel scrap shredder can meet the requirements of waste recycling in various industries, and is suitable for shredding thicker and refractory materials, such as electronic waste, plastics, metals, wood, waste rubber, packaging barrels, pallets, etc. There are many kinds of recyclable materials. The torn materials can be directly recycled or further refined according to demand. It is suitable for industrial waste recycling, medical treatment recycling, electronic manufacturing, pallet manufacturing, wood processing, domestic waste recycling, plastic recycling, tire recycling, paper making and other industries. This series of double shaft crusher has the characteristics of low speed, high torque and low noise. It adopts PLC control system and can be automatically controlled. It has the functions of starting, stopping, reversing and overloading automatic reversing control.

The double shaft crusher is driven independently by two shaft, so that the material can be pressed correspondingly in production to achieve the function of automatic feeding. Unique shaft structure and four-corner rotary blades will not entangle the shaft or jam the equipment in the production process of low speed and high torque, thus improving the production efficiency. This equipment is suitable for crushing various materials with high toughness and viscidity.

Technical parameters

Model Power (kw) Capacity (T/H) Speed (r/min) Dimension (mm) Weight (kg)
TMS-500 22 1.5-2 20 1900*1100*2500 3500
