Wear Resistant Scrap Metal Recycling Machine Hydraulic Motor Recycling Machine 30-50 Pieces/H
Product Details:
| Place of Origin: | China |
| Brand Name: | TMS |
| Certification: | CO, ISO |
| Model Number: | TMS-003 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | negotiable |
| Packaging Details: | Standard exported ply wooden case or Full container for large quantity |
| Delivery Time: | 10 work days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 30 sets per month |
|
Detail Information |
|||
| Name: | Scrap Motor Stator Recycling Machine | Function: | Cutting And Pulling Copper From Stator |
|---|---|---|---|
| Stator Diameter: | 100-250 Mm | Power: | 4.5 Kw |
| Capacity: | 30-50 Pieces/h | Size: | 1470*740*2040 Mm |
| Weight: | 1050 Kg | Voltage: | 380V Or Customized |
| High Light: | copper cable granulator machine,scrap metal recycling equipment |
||
Product Description

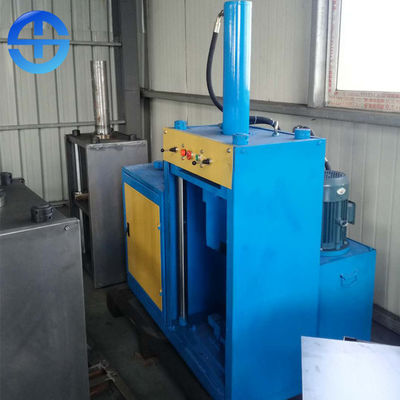

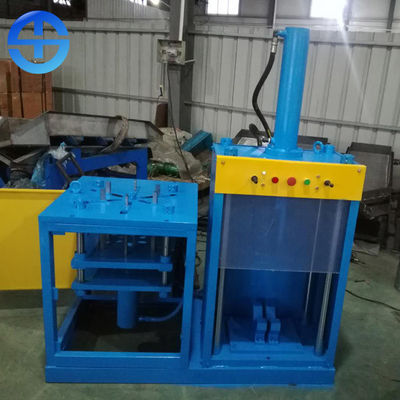

Hydraulic 30-50 pieces/h scrap motor stator recycling machine
Machine Introduction
The scrap motor stator recycling machine is used for cutting and pulling copper out from stator. It can be process all kinds of motor stator with external diameter 100-250mm. It cut the stator/motor in half firstly, then take all the inside copper out finally that all steps within 2 times.
Machine character
1. Adopted hydraulic system, the disassembly function is stable, the disassembly efficiency is greatly improved, and the labor intensity is reduced.
2. The cutting blade is made of high wear-resistant carbide, which is easy to operate, reliable, fast to cut, and does not produce adhesion and burr.
3. Equipped with automatic line grabbing device, the worker can greatly reduce the labor intensity in the process of operation.
4. Cutting blade, gripping claw can adjust the reciprocating distance, more conducive to the placement of stator coil.
Machine Specifications
| Model | Power | Capacity | External diameter | Size | Weight |
| TMS-003 | 4.5kw | 30-50 pcs/h | 100-250mm | 1470*740*2040mm | 1050kg |
