Intermediate Frequency Electric Metal Melting Furnace Power Scrap Copper Smelting Furnace Machine
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | TMS |
| Certification: | CO, ISO |
| Model Number: | TMS-35 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | negotiable |
| Packaging Details: | Standard exported ply wooden case or Full feet container for large quantity |
| Delivery Time: | 15 work days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 100 sets per month |
|
Detail Information |
|||
| Name: | Metal Aluminum Smelting Furnace | Function: | Smelting Copper Aluminum And Gold |
|---|---|---|---|
| Input Power: | 35 Kw | Output Current: | 10-70 A |
| Output Voltage: | 70-550 V | Capacity: | 30 Kg Per Furnace |
| Power Size: | 650*350*550 Mm | Power Weight: | 45 Kg |
| High Light: | gold melting furnace,aluminum melting furnace |
||
Product Description

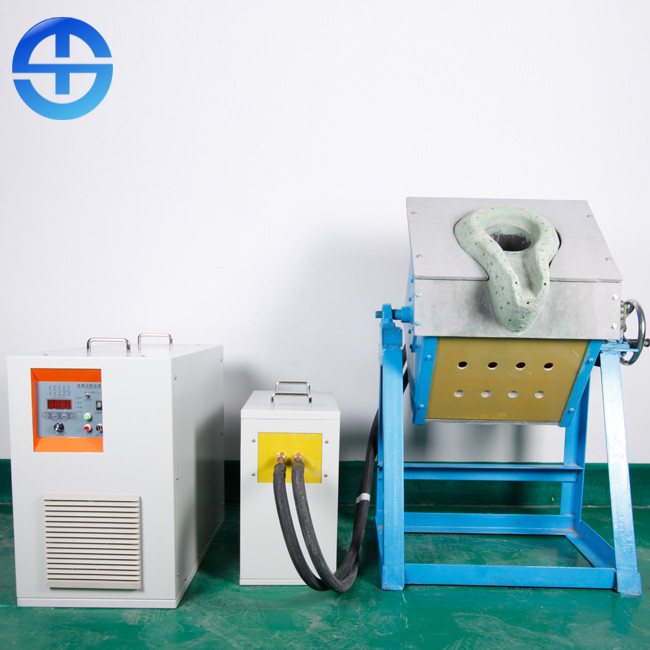

Intermediate Frequency Electric Metal Melting Furnace Power Scrap Copper Smelting Furnace Machine
Working principle of copper smelting furnace
The alternating current flows to a conductor (usually a copper tube) that is curled into a ring, which generates a magnetic beam. When the metal is placed in it, the magnetic beam runs through the metal body and generates a pit current (rotating current) in the direction of the Self-turning of the magnetic beam... At this time of induction, the resistance in the metal produces Joule heat (1 square R), which makes the temperature rise. This is induction heating. Thus, the heated objects such as metals can be heated in a non-contact state. (Fever is caused by Joule heat and hysteresis loss, but mainly by Joule heat).
Specification of copper smelting furnace
| Input Power | 35kw |
| Output Current | 10-70A |
| Output Voltage | 70-550V |
| Oscillation frequency | 1KHZ-20KHZ |
| Load continued rate | 100% 24hours work continuous work |
| Power weight | 45KG |
| Power size | W650*H350*L550mm |
| Capacitance box size | L440*W250*H440mm |
| Furnace size | Customized by capacity |
| Requirement of cooling water system | ≥0.2Mpa ≥15L/Min |
Features of copper smelting furnace
1. Using IGBT power devices and our company's unique converter control technology, the equipment has higher reliability and lower maintenance cost.
2. 100% load sustainability, 24 hours operation at maximum power;
3. It has constant voltage/constant power control function and higher heating efficiency.
4. Full display of output power, frequency and current;
5. Installation is simple. It can be used only by connecting electricity and water, and no special person is required to install it.
6. Miniaturization is only 20-130KG.
Type of copper smelting furnace

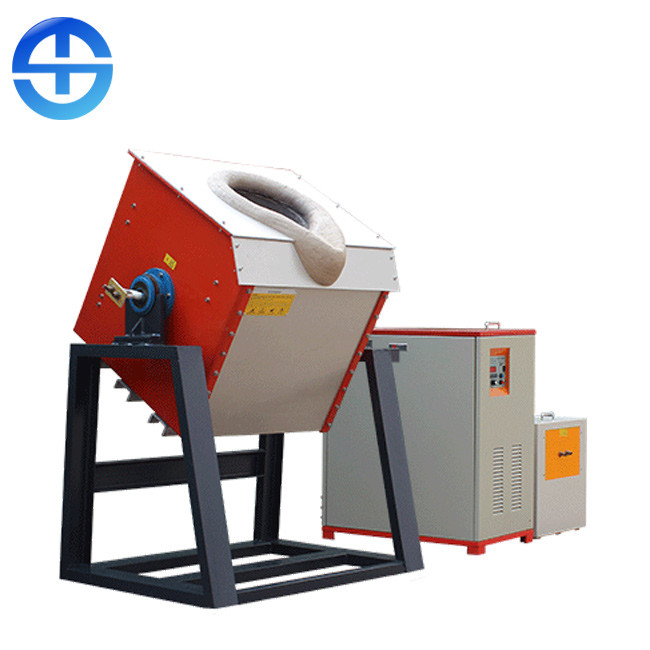

1. There are three kinds of smelting furnaces: tilting smelting furnace, ejecting smelting furnace and fixed copper melting furnace.
2. Dumping furnace: it can be divided into mechanical dumping furnace, electric dumping furnace and hydraulic dumping furnace.
3. According to different application requirements, it can be equipped with infrared thermometer, temperature controller and other devices.
4. It can be customized according to your needs.
Application of copper smelting furnace
1. It is used for heating and melting of steel, stainless steel, brass, copper, aluminum, aluminum alloy, gold, silver and other metal materials.
2. The melting capacity is 3kg to 500kg.
