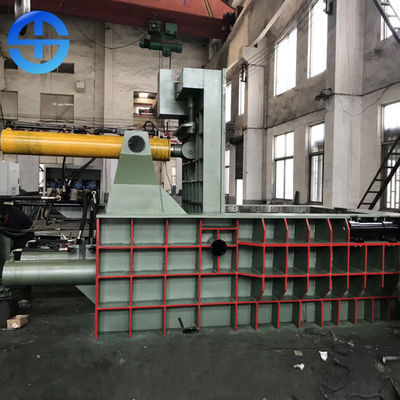

Full Automatic Scrap Metal Press Machine Scrap Steel Baler Simple Operate
Product Details:
| Place of Origin: | Henan, China (Mainland) |
| Brand Name: | TMS |
| Certification: | CE, ISO |
| Model Number: | TMS-2500A |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | negotiable |
| Packaging Details: | Full container 20'GP or 40'GP |
| Delivery Time: | 20 work days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 20 Set/Sets per Month aluminum cans press machine |
|
Detail Information |
|||
| Name: | Scrap Metal Baler Machine | Application: | Copper, Aluminum, Steel |
|---|---|---|---|
| Power: | 22 Kw*2 | Operation: | Full Automatic PLC |
| Bale Size: | 500*500 Mm | Nominal Pressure: | 2500 KN |
| Capacity: | 40-55 Ton/day | Function: | Press Scrap Into Bale |
| High Light: | scrap metal baling machine,hydraulic baling press machine |
||
Product Description

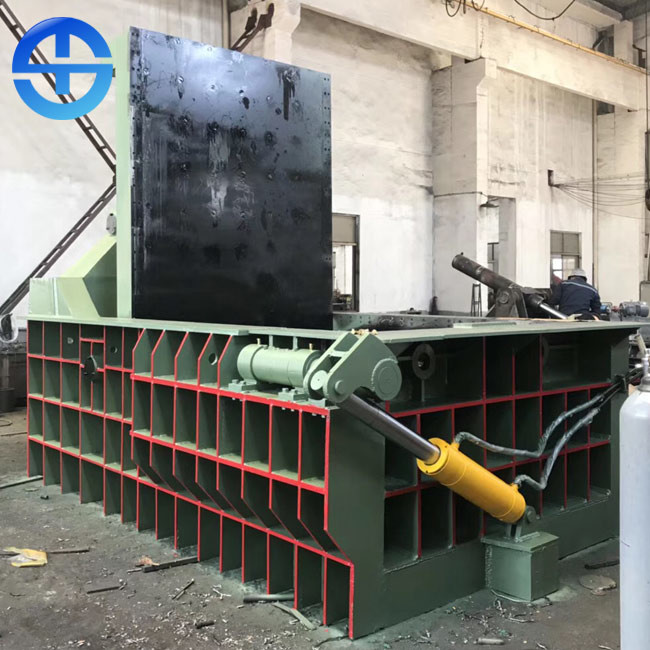

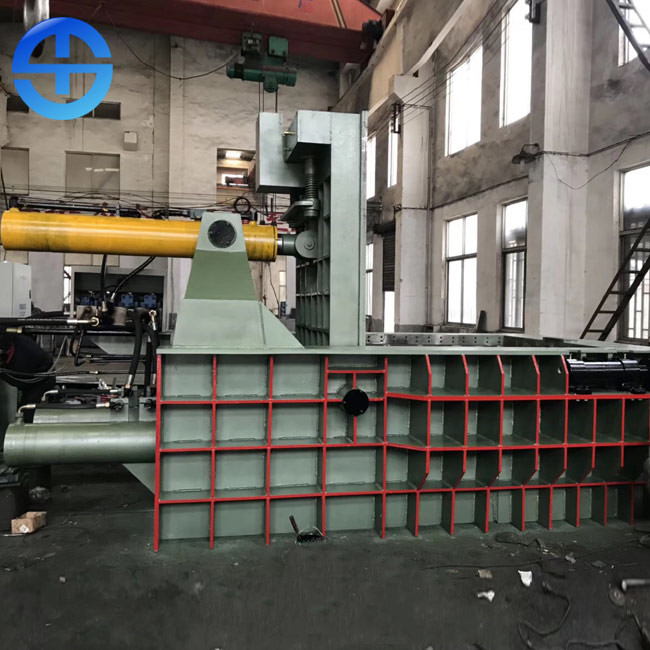

Hydraulic model TMS-2500A 40-55 ton/day scrap metal baler machine
Scrap metal baler machine can extrude all kinds of metal raw materials, such as metal edges and corners, steel shavings, scrap steel, scrap iron, scrap copper, scrap aluminum, aluminum shavings, disintegrated automobile shells, scrap oil drums, etc. into qualified furnace materials of various shapes such as cuboids and cylinders. It is convenient for storage, transportation and recycling.
Product Advantage
Scrap metal baler machine is easy to use, move and install, simple to operate, easy to maintain, reliable to seal, and no sole screw is used in installation. Users can customize packaging specifications and sizes according to their needs to maximize cooperation with transportation or storage. It is a good equipment to improve labor efficiency, reduce labor intensity, save manpower and reduce transportation costs.
Product features
1. The discharging forms are: rollover bale, roll bale, forward bale or no bale.
2. Installation does not require sole screw, where there is no power supply, diesel engine can be used as power.
3. Product specifications and types: Metal balers have 63-600 tons, 10 varieties and more than 20 specifications, which can meet the different needs of customers at different levels.
4. Driven by hydraulic pressure. It works smoothly and safely.
| Model | Nominal pressure | Material box size | Bale size | Daily Output | Power | Pump |
| 1250 | 1250KN | 1200*700*600mm | 300*300mm | 10-20T | 15kw | YCY-63 |
| 1350 | 1350KN | 1400*800*700mm | 300*300mm | 15-25T | 18.5kw | YCY-80 |
| 1600 | 1600KN | 1600*1000*800mm | 400*400mm | 20-35T | 22kw | YCY-160 |
| 2000 | 2000KN | 2000*1400*900mm | 450*450mm | 30-45T | 22+15kw | YCY-160+63 |
| 2500A | 2500KN | 2200*1850*1000mm | 500*500mm | 40-55T | 22kw*2 | YCY160*2 |
| 2500B | 2500KN | 2500*2000*1000mm | 500*500mm | 55-65T | 30kw*2 | YCY160*2 |
| 3150A | 3150KN | 2500*2000*1000mm | 600*600mm | 80-95T | 45kw*2 | YCY-250*2 |
| 3150B | 3150KN | 3000*2500*1200mm | 600*600mm | 100-115T | 45w*2 | YCY-250*2 |
| 4000 | 4000KN | 3500*3000*1400mm | 700*700mm | 120-140T | 75kw*2 | YCY-350*2 |
