22KW PLC Control Industrial Waste Shredder Light Duty 3100 * 1400 * 2200 Mm

22KW PLC Control Industrial Waste Shredder Light Duty 3100 * 1400 * 2200 Mm

Product Details:

Place of Origin: China
Brand Name: TMS
Certification: ISO, CO
Model Number: TMS-800

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: USD 14500-16000 per set
Packaging Details: Ply wooden case or Full container
Delivery Time: 10 work days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 15 sets per month
Get Best Price Contact Now

Detail Information

Name: Double Shaft Shredder Machine Function: Shredding
Size: 3100*1400*2200 Mm Power: 22 Kw
Blade Disc Diameter: 300 Mm Blade Disc Thickness: 8 Mm
Principal Shaft Diameter: 145 Mm Blade Disc Material: H13
High Light:

scrap metal shredder machine

,

double shaft shredder machine

Product Description

22KW PLC Control Industrial Waste Shredder Light Duty 3100 * 1400 * 2200 Mm

22KW PLC Control Industrial Waste Shredder Light Duty 3100 * 1400 * 2200 Mm 0

1. Application of double shaft shredder machine

The items that can be torn up by double shredding machine are

(1). Wood processing industry: wooden pallets, branches, seats, wood, roots; Wisconsin environmental protection.

(2). Plastic products industry: mixed plastics, plastic buckets, rubber blocks, nozzle materials, garbage cans.

(3). Waste tire industry: automobile tires, tires with rough steel wire removed, rubber.

(4). Metal recovery industry: scrap iron and steel, lead, aluminum alloy, copper scrap.

(5). Electronic waste industry: electronic appliances, plugs, transformers, air conditioners, induction cookers, television.

2. Working Principle of double shaft shredder machine

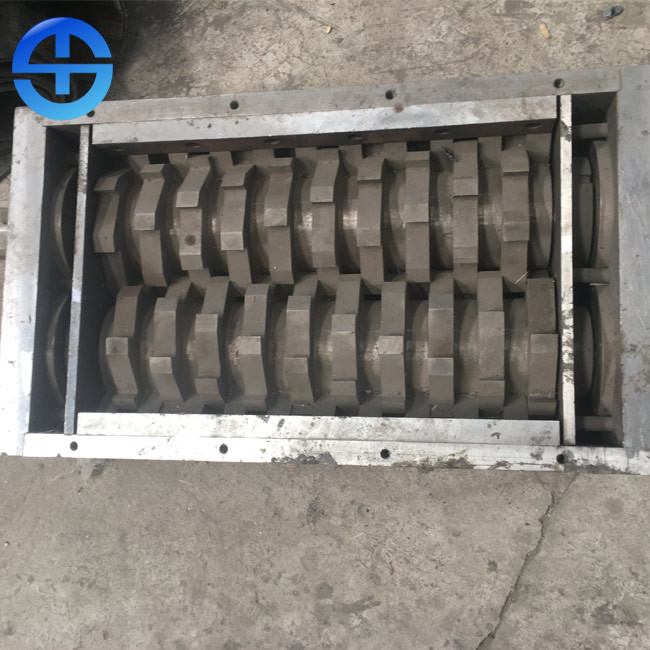

The main working parts of this machine are a pair of relatively rotating rollers, which are equipped with spirally arranged gear teeth. When the material enters the machine, it is torn and sheared by the teeth of the high hardness wear-resistant material which rotates staggeredly and is splitted, broken and crushed into smaller than the set size, and then forcibly excluded from the machine. Roller driven by motor through reducer has super-large torque, encounter difficult debris, will automatically reverse under the action of PLC automatic control system, and many times positive and negative, until the material is broken and discharged.

3. Structural Features of double shaft shredder machine

(1). The machine is reasonably designed and welded with high-quality steel.

(2). Fastening with high strength screw, solid structure, durable.

(3). The design of the main engine is exquisite, and the separation design is adopted for the fragments to make the output higher.

(4). The processed fragments are uniform and wear-and-tear is small. Various sieves can be replaced at the same time to meet different needs.

(5). Tools of different materials are equipped at the same time, so that they can be flexibly adjusted for different materials. They can be grinded after bluntness, used many times, and have long service life.

(6). The machine has the advantages of advanced structure, beautiful appearance, simple operation, stable operation, low investment and high efficiency.

(7). Equipped with large belt pulley to increase the inertia of crusher, it can save energy and strong crushing.

4. Technical parameters of double shaft shredder machine

Blade disc diameter 300mm
Blade disc thickness 8mm
Reducer 500
Power 22KW
Principal shaft 145mm
Material of principal shaft 42 Chromium-molybdenum steel
Power Distribution Cabinet PLC
Material of blade disc H13
Thickness of body steel 30mm
Size 3100*1400*2200mm

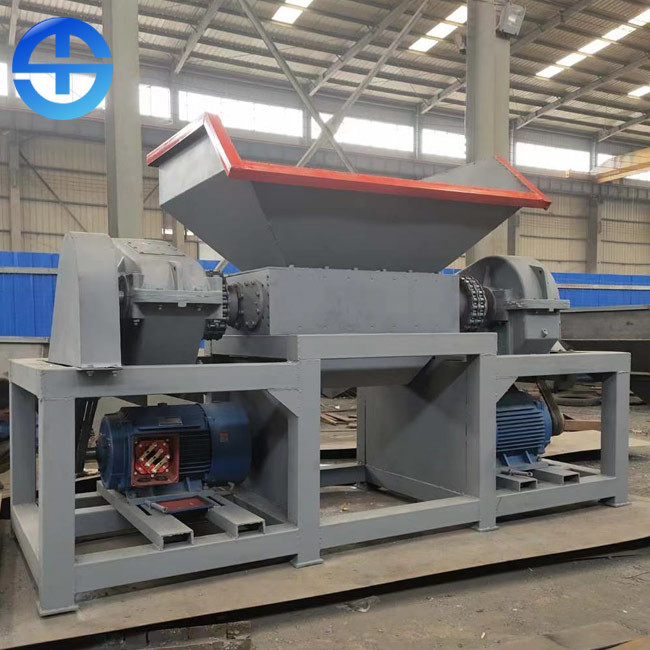

22KW PLC Control Industrial Waste Shredder Light Duty 3100 * 1400 * 2200 Mm 1
