Dry Type Copper Cable 52.36kw Scrap Metal Recycling Machine

Dry Type Copper Cable 52.36kw Scrap Metal Recycling Machine

Product Details:

Place of Origin: Henan, China (Mainland)
Brand Name: TMS
Certification: CO, ISO, CE
Model Number: TMS-600

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: One 20 feet container
Delivery Time: 15 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 15 sets per month
Get Best Price Contact Now

Detail Information

Name: Scrap Copper Cable Recycling Machine Type: Dry Type
Power: 52.36kw Function: Separate Copper From Plastic
Copper Purity: 99.9% Output: 300-400 Kg/h
Weight: 3400kg After-sale: 12 Month
High Light:

copper wire recycling machine

,

scrap metal recycling equipment

Product Description

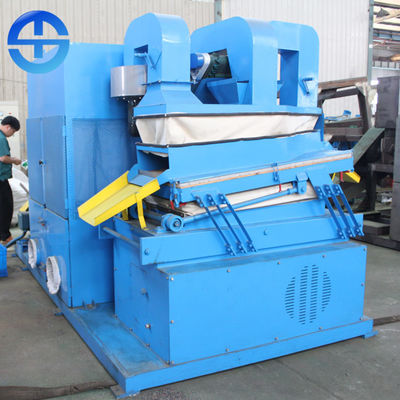

Dry Type Copper Cable 52.36kw Scrap Metal Recycling Machine


Dry Type Copper Cable 52.36kw Scrap Metal Recycling Machine 0


Features
1. The whole system is controlled by the Electricity Control Panel.
2. The bottom air flow is controlled by the Airlock.
3. The operation is stable.
4. Minimum copper recovery rate can reach 99%.
Introduction

Copper cable granulator and separator is used for recycling scrap copper wires/cables with diameter less than 25mm, better for single conductor diameter of 0.2-0.5mm. The wire is like auto wires, communication cables and kinds of miscellaneous wires and cables.
copper wires are shredded by crushers, then plastic and copper granules are separated by vibration and airflow. They come out from different outlets, dust is collected by dust collector. The copper granules and plastic granules will be separated by small vibrator twice time. The recovery rate can reach 99.9%.


Technical Specifications
ModelDimension (mm)Total Power (kw)Capacity (kg/h)Weight (kg)
Mini-4001500*1500*190011.92100750
TMS-4002700*1900*230023.12150-2001200
TMS-600A4000*1950*230048.36300-4003400
TMS-600B4300*1950*240052.36300-4003400
TMS-8009200*4100*240078.76500-8008000
TMS-120016000*10000*3000129.361000-150012000

After-sale

1. The machines except spare parts are guaranteed for 12 months.
2. Engineer will be sent to your place to guide how to operate for the production line.
3. We will send you extra set of spare parts and two sets small vibrators.
Noise Level
1). The machine’s unloading noise level is below 80dB.
2). Special Note: when the machine is working, the noise would increase as the machine’s working load is increasing, so the operator must wear protective earplugs in working.
Use & Maintenance
In the case of correct selection of machines, the service life also depends on appropriate use and timely maintenance. High temperature complex lithium base grease is used for bearings, so they are high temperature resistant, good at impact resistance, have a long service life. According to the actual use, users shall regularly inject grease. When Chopper blades get blunt, remove the blades and sharpen them with a blade sharpening machine, and adjust the spacing between fixed blades and rotating blades to 0.15mm-0.25mm. The grease for bearings should be replaced every 300 working hours, and grease for chains shall be added every 15000 working hours.
