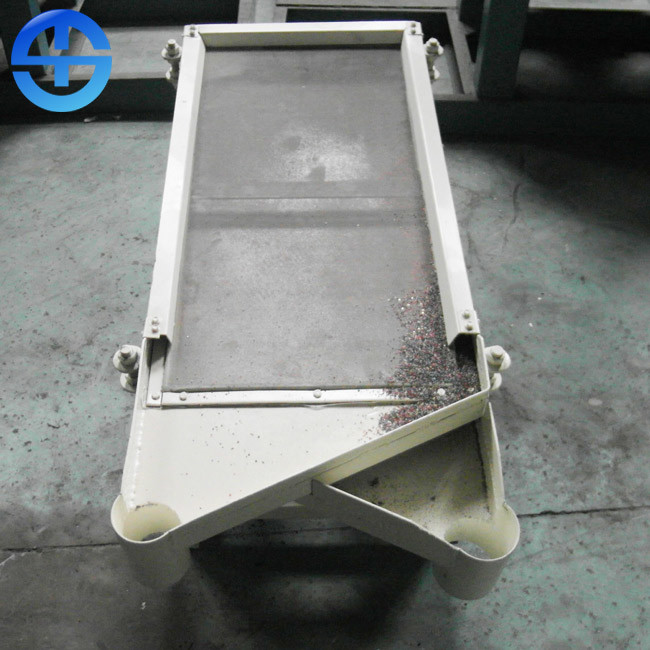

100% Separating Rate 0.18kw 600*1900mm Screen Shaker Separator

100% Separating Rate 0.18kw 600*1900mm Screen Shaker Separator

Product Details:

Place of Origin: Zhengzhou, China
Brand Name: TMS
Certification: CE, ISO
Model Number: TMS-02

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiated
Packaging Details: Ply wooden case
Delivery Time: 5-8 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 50 sets per month
Get Best Price Contact Now

Detail Information

Name: Screen Shaker Separator Function: Separate Copper And Plastic
Power: 0.18kw Size: 600*1900mm
Height: Customised Color: White
High Light:

600*1900mm Screen Shaker Separator

,

0.18kw Screen Shaker Separator

,

600*1900mm copper cable recycling machine

Product Description

100% Separating Rate 0.18kw Screen Shaker Separator With Different Mesh Size

Description of screen shaker separator

Screen shaker separator is very practical in chemical, food, medicine and other industries. It has high screening accuracy, large processing capacity, simple structure, low energy consumption, low noise, long service life, good sealing, little dust spillage and convenient maintenance.Often cooperate with other mechanical equipment, such as conveyor, hoist, crusher, etc., to complete the automatic operation of the whole assembly line. The linear powder screening machine uses the vibration motor as the vibration source, so that the material is thrown up on the screen and moves forward in a straight line. The material evenly enters the feed inlet of the screening machine from the feeder, and generates several specifications of the upper and lower screen materials through the multi-layer screen, which are discharged from their respective outlets. Because the material trajectory is linear motion.

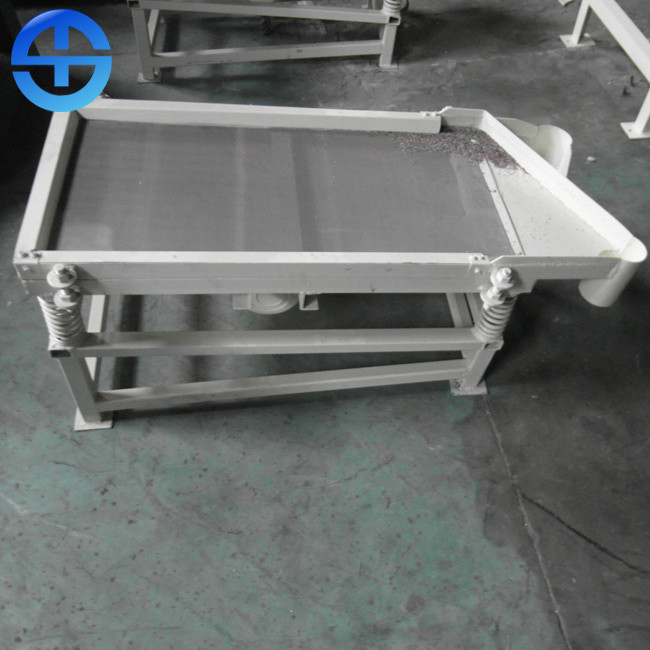

The small linear vibrating screen is mainly composed of screen box, screen frame, screen, vibration motor, motor pedestal, damping spring, support, etc.

1. Screen box: welded by several kinds of steel plates with different thickness, with certain strength and stiffness, is the main component of the screen machine.

2. Screen frame: made of pine or wood with small deformation, mainly used to keep the screen smooth and reach normal screening.

3. Screen: low carbon steel, brass, bronze, stainless steel wire, etc.

4. Vibration motor: (for operation and maintenance methods, please refer to the operation manual of vibration motor).

5. Motor pedestal: when installing the vibration motor, the connecting screw must be tightened before use, especially three days before the trial use of the new screen machine, it must be repeatedly tightened to avoid loosening and causing accidents.

6. Damping spring: prevent vibration from being transmitted to the ground, and support all the weight of screen box. When installing, the spring must be perpendicular to the ground.

7. Support: it is composed of four pillars and two channel steel, supporting the screen box. When installing, the support must be vertical to the ground, and the channel steel under the two pillars should be parallel to each other.

Features of screen shaker separator

1. Screen machine design, delicate and easy to assemble, one person can operate the screen machine.

2. Compared with other related brand manufacturers, it has large screening area and high efficiency processing capacity..

3. The mother net fully supports the fine net, so the fine net can have a longer service life, and reduce the use of the fine mesh consumables, and the production process with a long deposition time can reduce many costs.

Technical parameters of screen shaker separator

Model Size Power Weight
TMS-01 350*1200mm 0.12kw 80kg
TMS-02 600*1900mm 0.18kw 200kg
TMS-03 800*2000mm 0.4kw 280kg

Use and Maintenance of screen shaker separator

1. The machine should be equipped with electrical protection device.

2. At the beginning of the machine operation, check the anchor bolts at least once a day to prevent loosening.

3. When the motor rotation direction does not meet the requirements, adjust the power phase sequence.
