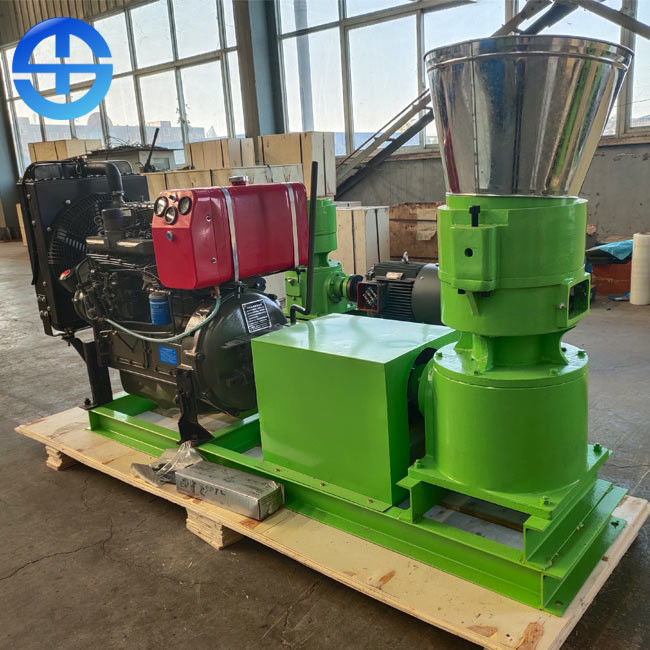

Diesel Engine Driven Flat Die 150mm Biomass Pellet Mill
Product Details:
Place of Origin: | Zhengzhou, China |
Brand Name: | TMS |
Certification: | CE, ISO |
Model Number: | 150C |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 set |
---|---|
Price: | USD1060-1150 per set |
Packaging Details: | Exported ply wooden case for diesel pellet mill |
Delivery Time: | 7 working days |
Payment Terms: | L/C, T/T, Western Union |
Supply Ability: | 100 sets per month |
Detail Information |
|||
Name: | Diesel Pellet Mill | Main Function: | Make Feed Pellet Or Fuel Pellet |
---|---|---|---|
Pellet Output: | 90-120kg/h | Power: | 8HP |
Dimension: | 950*650*750mm | Moisture Required: | 10-12% |
Flat Die Diameter: | 150mm | Pellet Size: | 3,4,5mm |
High Light: | Flat Die 150mm Biomass Pellet Mill,120kg/h Biomass Pellet Mill,Flat Die 150mm feed pellet making machine |
Product Description

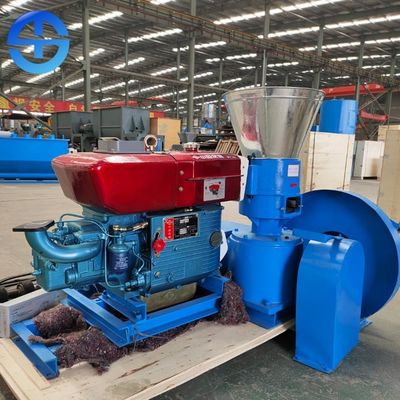

150mm Flat Die Diameter Diesel Engine Driven Biomass Pellet Mill
Description of diesel pellet mill
Diesel pellet mill turns the raw materials into the high-efficient biomass fuel. What's more, the conversion of raw material into more energy-dense forms facilitates transport, storage and use through the rest of the value chain. The future of the biomass is on continuous developing.
Wood pellet is easy to store and produce a minimal amount of ash. Wood pellets are environmentally-friendly. They are a sustainable fuel source
Features of diesel pellet mill
1. It is easy to move this pellet press. You can move it to any place where you want to make pellets. You may place it near the place where the raw materials are stored, like on farm or at home.
2. Driven by a diesel engine makes pellet production available especially in the rural area with shortage supply of electricity. The customers who don't have 3 phase also can choose this type machine, which is convenient.
3. Adopt rotating rollers and stationary die design. Ensure the quality of pellets and production rate of pellets.
4. The pelleting process is visible, so it is convenient to solve problems in time.
Application of diesel pellet mill
(1). Livestock and poultry's waste,tea waste,tea waste,forestry wastes,forestry wastes,wood chips and many other organic waste resources.
(2). All kinds of wood waste or agro-forestry waste can be used,such as:Wood waste,scobs,branch,palm tree,sugarcane residue,sawdust,medical slag,hay,discarded edible fungus bags.Bean stalk,wheat stalk,corn stalk,cotton stalks,sunflower stalks,mustard stalk,rice stalks,coffee husk,cotton shell,peanut shell,rice shell,coconut shell.
Working principle of diesel pellet mill
When the diesel pellet mill is working, the stirred raw materials are continuously and smoothly fed into the feeding chamber, and the feeding scraper evenly spreads the materials on the flat die surface, At the same time, the spindle drives the press roll to rotate. Because of the friction between the press roller, the flat die and the raw material, the pressure roller rotates around the roller shaft again, and the material is forced to squeeze into the hole of the flat die due to the extrusion force generated by the rotation of the press roll, When the material overcomes the friction resistance, the material to be formed will be continuously extruded out of the flat die hole. Finally, the cutter installed on the main shaft is cut into a certain length of pelles according to the required length, and finally thrown out from the discharge plate.
Technical parameters of diesel pellet mill
Model | Power | Output (kg/h) | Dimension (mm) | G.W | N.W | Moisture required |
120C | 7.6HP | 60-100 | 850*450*750 | 140kg | 120kg | 10-18% |
150C | 8HP | 90-120 | 950*650*750 | 180kg | 160kg | 10-18% |
200C | 15HP | 200-300 | 1450*550*850 | 280kg | 260kg | 10-18% |
230C | 22HP | 300-400 | 1800*560*1050 | 450kg | 430kg | 10-18% |
260C | 30HP | 400-600 | 1800*560*1050 | 500kg | 480kg | 10-18% |
300C | 55HP | 600-800 | 2100*590*1200 | 720kg | 700kg | 10-18% |
400C | 55HP | 800-1200 | 2200*640*1400 | 780kg | 750kg | 10-18% |
