20-120mm Cables 5.5kw Copper Wire Stripping Machine
Product Details:
Place of Origin: | Zhengzhou, China |
Brand Name: | TMS |
Certification: | CE, ISO |
Model Number: | MS-120 |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 set |
---|---|
Price: | USD840-880 per set |
Packaging Details: | Standard exported ply wooden case for copper cable stripping machine |
Delivery Time: | 7 work days |
Payment Terms: | L/C, T/T, Western Union |
Supply Ability: | 100 sets per month |
Detail Information |
|||
Name: | Copper Cable Stripping Machine | Function: | Strip Copper Cable |
---|---|---|---|
Motor Power: | 5.5kw | Diameter Stripped: | 20-120mm |
Dimension: | 660*680*1500mm | Knife: | 2 Pieces |
Feeding Hole: | 1 Pieces | Net Weight: | 250kg |
High Light: | 5.5kw Copper Wire Stripping Machine,120mm Copper Wire Stripping Machine,120mm commercial wire stripping machine |
Product Description

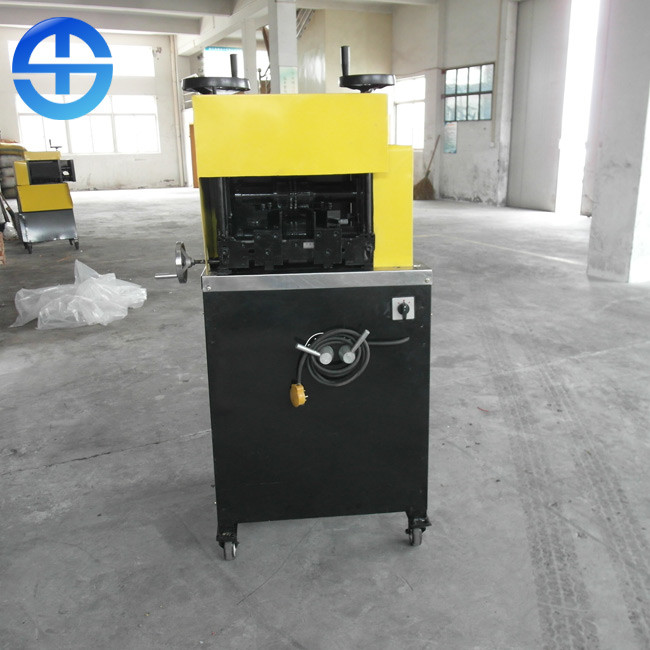

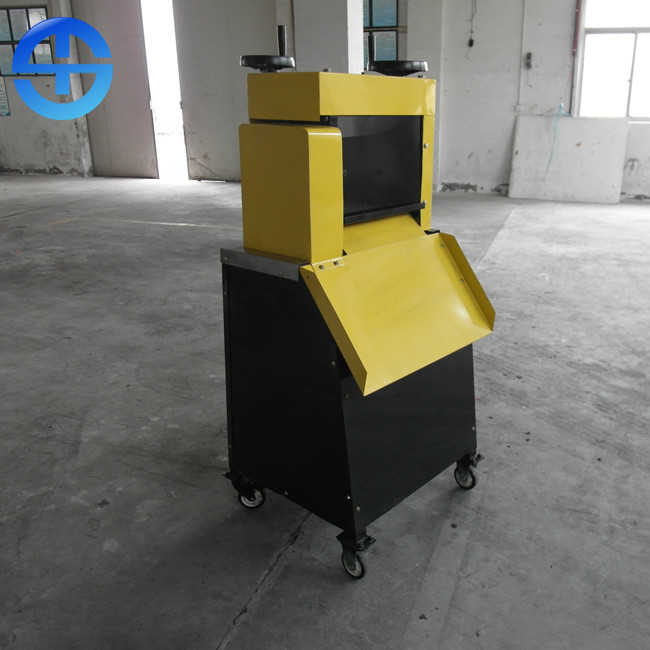

20-120mm Cables 5.5kw Copper Cable Stripping Machine
Description of copper cable stripping machine
We provide various types of copper wire stripper for you to strip the scrap wires and cables easily. They can not only strip wires with plastic cover but also can make rubber cable stripped easily. The metal core can be either copper wires or aluminum wires. Copper wire stripper is composed of Frame, knife shaft, rolling shaft, inlet hole, gear, motor etc.
This model MS-120 can strip many types of cables including electric cables, high-tension cables and optic fiber cables, etc.. The motor is 4*4, 3 Phase. Gearbox can provide 4 speeds which are adjusted according to your need. It has forward and reverse running switch.
Note: when adjusting speed, first move one handle to Neutral position and then move the other handle for adjusting.
1. Screws for Blades
2. Screws for Blade Bases
3. Screws for Blade Base Frame
4. Lower Roller
5. Upper Roller 6. Blades
A. Adjusting Handle for Upper Roller Height
B. Adjusting Handle for Blade Distance
C. Adjusting Handle for Blade Height
Features of copper wire stripper
1. Small dimensions, easy to move.
2. High efficiency, low power consumption.
3. Easy operation and easy maintenance.
4. Various voltages are optional and customized as required.
Working Principle of copper cable stripping machine
The Upper Roller and the Lower Roller press cables between them, the motor provides traction power and the blades cut cables in left and right. This machine has a motor and a gearbox for speed adjusting, so it has stable performance and is convenient for maintenance. Blades are fixed on left and right which is convenient to adjust blades according to the thickness of cable insulation.
Technical specificaition of copper wire stripper
Model | MS-120 |
Motor Power | 5.5kw |
Wire diameter stripped | 20-120mm |
Knife | 2 pieces |
Feeding Hole | 1 pieces |
Dimension | 660*680*1500mm |
Net Weight | 250kg |
Productivity | 1000-3000kg/day |
