30M/Min Copper Wire Cable Stripping Machine 1-25mm Wire

30M/Min Copper Wire Cable Stripping Machine 1-25mm Wire

Product Details:

Place of Origin: Zhengzhou, China
Brand Name: TMS
Certification: CO, ISO
Model Number: 918-A

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: USD350-430 per set
Packaging Details: Standard exported ply wooden case or Full container for large quantity
Delivery Time: 10 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 150 sets per month
Get Best Price Contact Now

Detail Information

Name: Copper Wire Stripping Machine Usage: Strip Copper Cables
Motor: 1.5kw Wire Diameter Range: 1mm-25mm
Whole Size: 550*510*840mm Blades: 8 Pieces
Wire Hole: 3 Flat Hole+8 Round Hole Machine Weight: 60kg
High Light:

30M/Min Copper Wire Cable Stripping Machine

,

25mm Copper Wire Cable Stripping Machine

,

30M/Min scrap copper wire stripping machine

Product Description

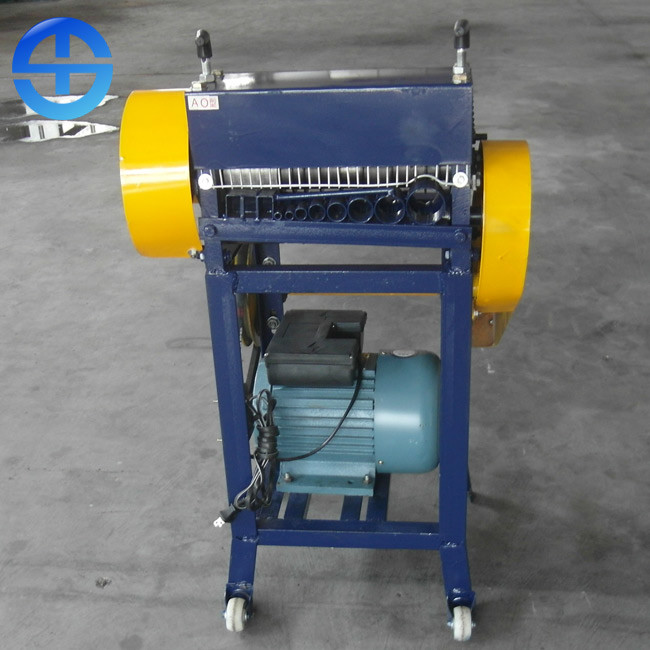

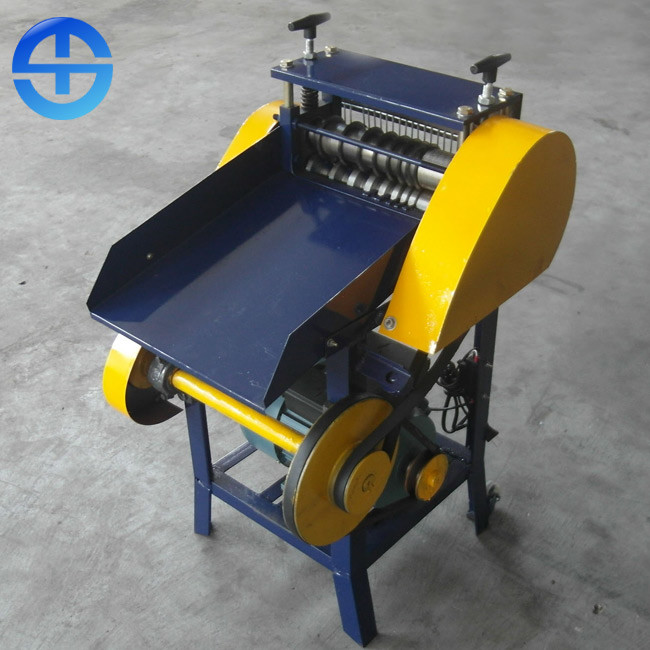

30M/Min Copper Wire Stripping Machine For 1-25mm Wire

Details of copper wire stripping machine

Copper wire stripping machine is used for cable cutting and stripping, cable stripping, is a used cable recycling equipment. The machine can separate the cable core from the cable jacket, the blade cuts the cable jacket, and the roller separates the core from the jacket by squeezing.
It is suitable for all kinds of wires (automatic dispersion), copper-clad wires, aluminum-clad wires and steel wires, especially single-core or two-core flat wires. Stable performance, convenient operation, high efficiency and wide range of uses.
Copper wire stripping machine has a total of 11 holes, including 8 round wire holes, 3 flat wire hole. It is stable, easy to use and very practical, so it is the most common wire stripper. The principle of the wire stripper is to cut and pass through two shafts, and the blades on the shaft can recover copper.

Advantage of copper wire stripping machine

1. Light weight can be easily movement and carry to any places.

2. Cost effective machine and suitable for industory and personal usage.
3. Working by adjust the diameter of holes.
4. Processing flat cable and round cable.
5. Blades and rollers rotate together at the same time to keep wire won't slip.

Technical datas of copper wire stripping machine

Model 918-A
Motor  1.5 kw
Wire diameter range 1mm-25mm
Blades quantity 8 pcs
Wire Hole 3+8
Dimension 550*510*840 mm
Net Weight 60 kg
