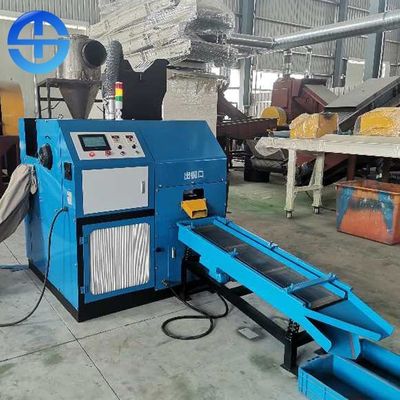

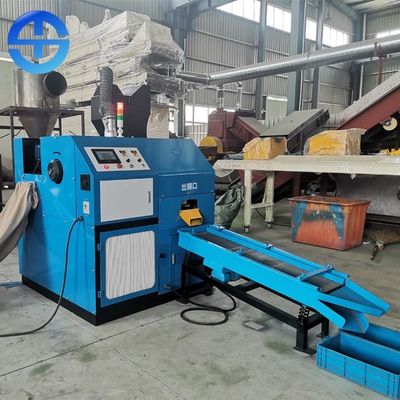

Dry Type 100kg/H Copper Cable Granulator machine 99.9% Recovery Rate
Product Details:
| Place of Origin: | Zhengzhou, China |
| Brand Name: | TMS |
| Certification: | CE, CO, ISO |
| Model Number: | 300 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | USD7430-7650 per set |
| Packaging Details: | Ply wooden case |
| Delivery Time: | 15 work days after receiving the deposit |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 30 Sets per month |
|
Detail Information |
|||
| Name: | Copper Cable Granulator | Application: | Copper Cable |
|---|---|---|---|
| Function: | Copper Recovery | Type: | Automatic |
| Motor Power: | 12.24kw | Separation Rate: | 99.9% |
| Input: | 60-100 Kg/h | Wire Diameter Processed: | 0.1-20mm |
| Dimension: | L1360*W1300*H1915 Mm | Net Weight: | 1220kg |
| High Light: | 100kg/H Copper Cable Granulator Machine,99.9% Copper Cable Granulator Machine,100kg/H scrap cable granulator machine |
||
Product Description
Dry Type 99.9% Recovery Rate 100kg/H Copper Cable Granulator
Description of copper cable granulator
This copper cable granulator is use for 1-20mm copper wires and cables. It can deal with 60-100KGS materials in one hour. If the wires/cables is short and diameter less than 10mm. It can deal with 100KGS materials in one hour. Have PLC control system(Function: One click Start, One click trun off, AMP monitor, Motor protection and so on)
Copper cable granulator is mainly used to recycle different types of cable wires, such as all kinds of automotive circuit cable lines, communication cable lines and various waste wires that are not suitable to be processed by stripping machines. Like: computer wires, automobile wires, tele-communication cables, electric telephone wires. The functions of these cable recycling system include pre-shredding, steel removal, granulation and separation of plastics from copper or aluminum. The advanced design of these plants results in excellent separation of the different fractions, even when processing mixed cables of varying size and composition.
Advantages of copper cable granulator
1. Eco-friendly equipment: Each copper recycling machine is equipped with a dust collection device, so the recycling process does no harm to environment;
2. Cover a small area: The structure of the machine is compact. In addition, it’s easy to install a copper recycling machine;
3. Easy operation: PLC control system, highly automatic, high efficiency;
4. High-quality spare parts, long service life. The blade is made of high-quality alloy steel;
Technical parameters of copper cable granulator
| Model | 300 |
| Machine Size | 1360*1300*1915mm |
| Equipment display size | 4410*1360*1915mm |
| Input | 60-100kg/h |
| Total power | 12.24kw |
| Wire diameter processed | 1-20mm |
| Blades for crusher | 5+2 pcs |
| Weight | 1220kg |
RFQ for copper cable granulator
1. How to sell copper wire?
Copper tends to yield the most money compared to other recyclable scrap metal. If you renovate your home or own a business that produces junk metal, consider recycling it for extra cash. Most copper wire requires a little prep work to command the highest price. It often has insulation or other attached components that brings its value down. Collect scrap copper wire until you have about 20 lbs. or more, remove the components and bring it to a recycling center to sell.
(1). Separate your copper wire into grades. Grade three includes copper foil and other thin pieces of copper. Grade two includes copper wire that is corroded, tarnished or painted. Grade one copper wire is clean and has no paint, varnish or any other alterations. Recycling centers pay the most for grade one wire and the least for grade three.
(2). Strip the insulation off if the recycling center pays less for wire with insulation. Slide a sharp knife along the insulation and peel it off. Small-gauge copper wire is challenging to strip; if you have trouble, leave the wire as is and avoid risking injury to your hands.
