30Pieces/H 50Pieces/H Motor Stator Recycling Machine

30Pieces/H 50Pieces/H Motor Stator Recycling Machine

Product Details:

Place of Origin: Zhengzhou, China
Brand Name: TMS
Certification: CE, ISO
Model Number: TMS-003

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: USD8100-8500 per set
Packaging Details: Standard exported ply wooden case for electric motor recycling machine
Delivery Time: 10 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 30 sets per month
Get Best Price Contact Now

Detail Information

Name: Stator Recycling Machine Main Function: Recycle Scrap Motor Stator
Motor Stator: 100-250mm Motor: 4.5kw
Yield: 30-50 PCS/H Whole Size: 1470*740*2040m
Gross Weight: 1100kg Voltage: 380V/60HZ, 3 Phase
High Light:

50Pieces/H Motor Stator Recycling Machine

,

30Pieces/H Motor Stator Recycling Machine

,

50PCS/H Motor Stator Recycling Machine

Product Description

30Pieces/H 50Pieces/H Motor Stator Recycling Machine



Description of motor stator recycling machine



Motor stator consists of three parts,the stand and installed within the frame of the cylindrical core and the copper wire winding.Waste motor stator cutting and dismantling machine is forcible entry of special equipment for motor stator,the equipment adopts the hydraulic system work,the equipment can cut stator frame (limited to cast iron frame), cylindrical iron core in half,exhaustion copper wire winding From cylindrical core,complete the stator and rotor of the motor dismantling process.The equipment to work stable and reliable, high efficiency, convenient and flexible operation, zero pollution to the environment, is the ideal equipment of motor stator forcible entry.

As the name suggests, the motor stator recycling machine is a kind of electric motor dismantling equipment. It can be process all kinds of motor stator with external diameter 100-250mm. It cut the stator/motor in half firstly, then take all the inside copper out finally that all steps within 2 times. This machine is composed of hydraulic system, electronic control system, blade, push rod, claws, motors and main body. It is used in the motor factory to recover the unqualified motor stator enameled wire and steel sheet, and also widely used in some factories specialized in the recovery of motor disassembly. It is also widely used in the recovery of copper wire in washing machine motor and air conditioning compressor.The machine is flexible and convenient, easy to operate, compact in structure and large in output.



Technical parameters of motor stator recycling machine



Model TMS-003
Motor Power 4.5kw
Capacity 30-50 PCS/H
External diameter processed 100-250mm
Whole size 1470*740*2040mm
Weight 1050kg



Features of motor stator recycling machine



1. This machine is our self-developed product, which is targeted with high efficiency, after cut the stator in half, it can take out all the copper winding within 2 times, which is high economic efficiency.

2. Nice appearance with reasonable structure.

3. Using heavy cylinder, large torque, can withstand high loads.

4.  The process of equipment is without metal loss, with improved recycling.

5. We use international famous brand for hydraulic solenoid valve with durable long life.

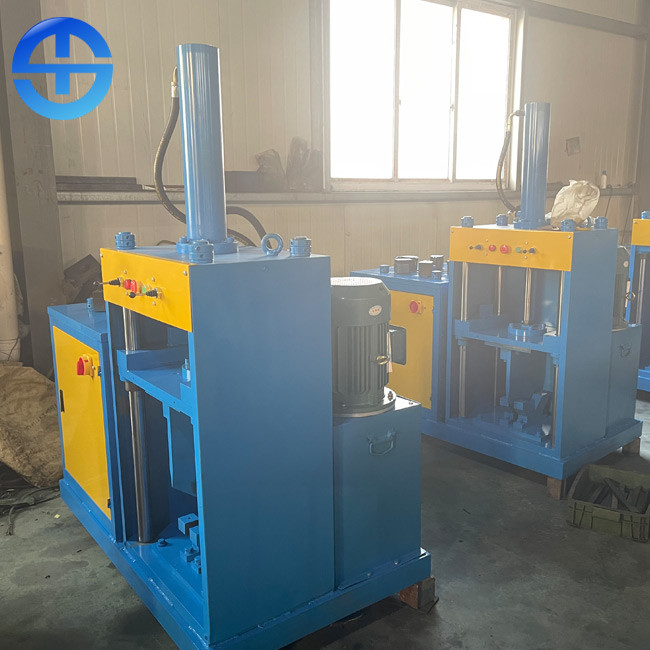

30Pieces/H 50Pieces/H Motor Stator Recycling Machine 0

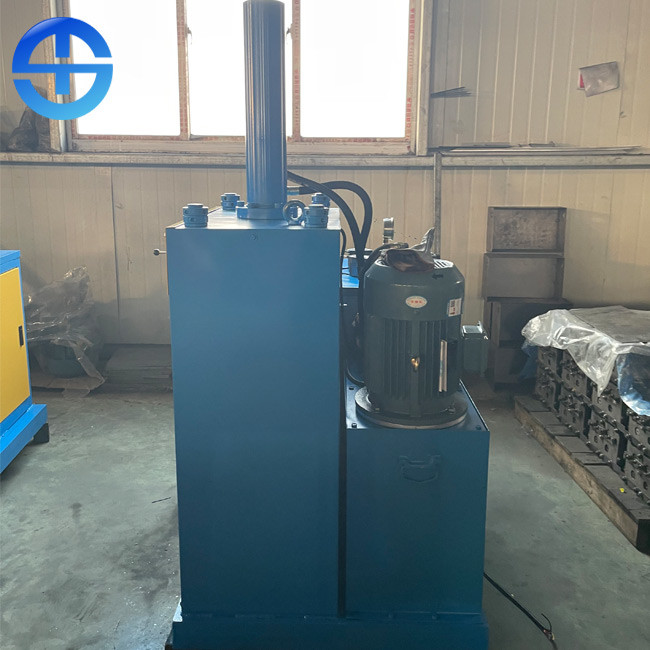

30Pieces/H 50Pieces/H Motor Stator Recycling Machine 1
