700kg/H 800kg/H Scrap Double Shaft Shredding Machine

700kg/H 800kg/H Scrap Double Shaft Shredding Machine

Product Details:

Place of Origin: China
Brand Name: TMS
Certification: ISO, CO, CE
Model Number: TMS-400

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiated
Packaging Details: Ply wooden case with 4200*2300*2700 mm or Full container
Delivery Time: 20 work days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 20 sets per month
Get Best Price Contact Now

Detail Information

Name: Dual Shaft Shredding Machine Function: Shredding Scraps
Total Dimension: 1650*900*1600mm Total Power: 18.5kw
Input Capacity: 700-800kg/h Rotate Speed: 50r/min
Total Weight: 700kg Voltage: 380V/50HZ
High Light:

700kg/H Double Shaft Shredding Machine

,

800kg/H Double Shaft Shredding Machine

,

800kg/H small dual shaft shredder

Product Description

700kg/H 800kg/H Scrap Dual Shaft shredding machine



Introduction of dual shaft shredding machine



The dual shaft shredding machine is driven by planetary gear reducer, and the blade is made of high-strength alloy steel. It has the characteristics of strong wear resistance and high strength. The differential operation between shafts has the functions of tearing, extrusion, biting and so on. It is specially designed for all kinds of domestic waste materials and is suitable for crushing all kinds of domestic waste, such as waste clothes, waste shoes, waste quilts, waste daily necessities, packaging bags, waste wood, waste plastics, food waste, medical waste, etc. The output can be provided with professional design according to the requirements of customers. It has the advantages of uniform discharge, controllable size, large output and low noise.



Specification of dual shaft shredding machine



Model TMS-400
Total Motor 18.5kw
Voltage 380v/50hz
Input Capacity 700-800kg/h
Rotate speed 50 r/min
Dimension 1650*900*1600 mm
Weight 700 kg



Features of dual shaft shredding machine



1. The dual shaft shredding machine is firm and durable. It is suitable for recycling all kinds of large solid materials, refractory materials, plastic containers, plastic barrels and plastic backing plates. Shredded particles can be as small as 20mm according to different needs. And we can provide all kinds of feeding buckets according to customer needs. The equipment has the advantages of low speed knife rotation, low noise and more energy saving.

2. It is composed of moving cutter head and fixed cutter to complete the function of chopping materials. The cutter head is composed of a base shaft and several moving cutter blocks in the shape of quadrilateral. The moving blade block has 4 cutting edges, which can be replaced. The moving cutter blocks are arranged in V-shaped rows along the base shaft, fixed on the base shaft with screws, and rotate together with the base shaft to form a moving cutter head. There are two groups of static knives, which are fixed on the frame. The material is pushed by the horizontal hydraulic cylinder to feed in the direction of the cutter head. The speed is stable and adjustable, and the propulsion force is large and uniform. It is suitable for recycling all kinds of large solid materials, irregular and difficult to treat materials, plastic containers, plastic barrels, tubes, films, fibers, paper, etc. The spindle speed is 45 ~ 100 rpm.

3. Different knife sticks can be selected for different materials. Correct selection of knife sticks can greatly improve the service performance and production efficiency of the equipment. Our factory now provides knife sticks: high-performance knife sticks, hard material knife sticks and film knife sticks.

4. While selecting different knife sticks, our factory also designs different installation methods of knife holder according to the characteristics of different materials: Welded movable knife holder, removable movable knife holder and integrated movable knife holder.



Application of dual shaft shredding machine



The items that can be torn up by metal shredding machine are

(1). Wood processing industry: wooden pallets, branches, seats, wood, roots; Wisconsin environmental protection.

(2). Plastic products industry: mixed plastics, plastic buckets, rubber blocks, nozzle materials, garbage cans.

(3). Waste tire industry: automobile tires, tires with rough steel wire removed, rubber.

(4). Metal recovery industry: scrap iron and steel, lead, aluminum alloy, copper scrap.

(5). Electronic waste industry: electronic appliances, plugs, transformers, air conditioners, induction cookers, television.

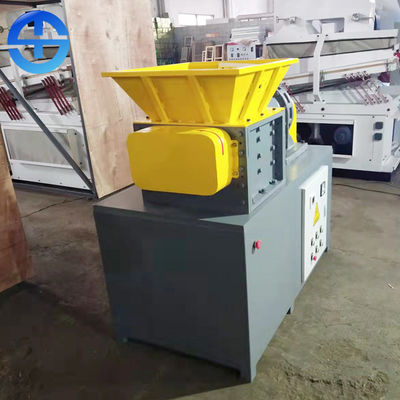

700kg/H 800kg/H Scrap Double Shaft Shredding Machine 0
