100% Separating Rate Radiator Copper And Aluminum Separating Machine

Minimum Order Quantity : 1 Set/Sets Price : US $4,000-6,500 / Sets
Packaging Details : Radiator copper and aluminum separating machine is packed by ply wooden case which meet export standard. Delivery Time : 7 work days
Payment Terms : L/C, T/T, Western Union Supply Ability : 50 Set/Sets per Month Radiator copper and aluminum separating machine
Place of Origin: Henan, China (Mainland) Brand Name: TMS
Certification: CE,CO,ISO Model Number: TMS-016

Detail Information

Name: Radiator Copper And Aluminum Separating Machine Material Processed: Scrap Radiators
Power: 3 Kw+4 Kw Capacity: 2000-3000 Kg/day
Dimension: 1800*800*1200 Mm Weight: 600 Kg
Function: Separator Copper And Aluminum Voltage: 380v/50HZ(as Customers' Request )
High Light:

scrap metal granulators

,

copper cable granulator machine

Product Description

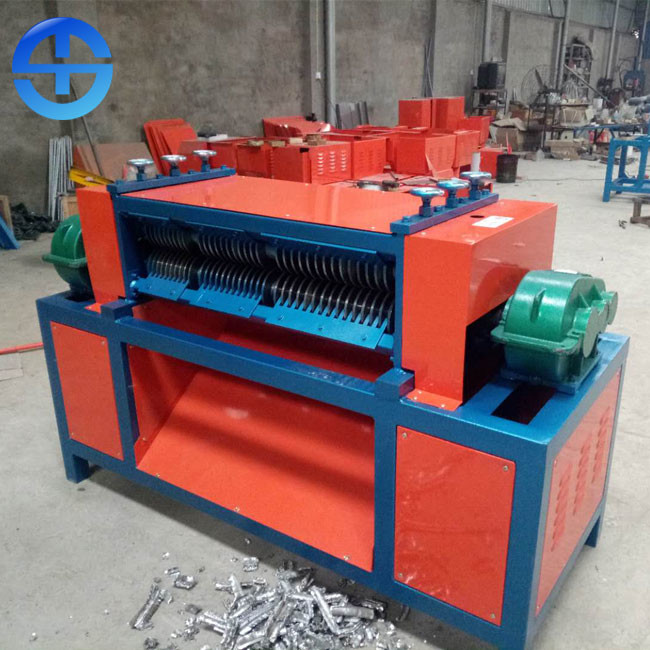

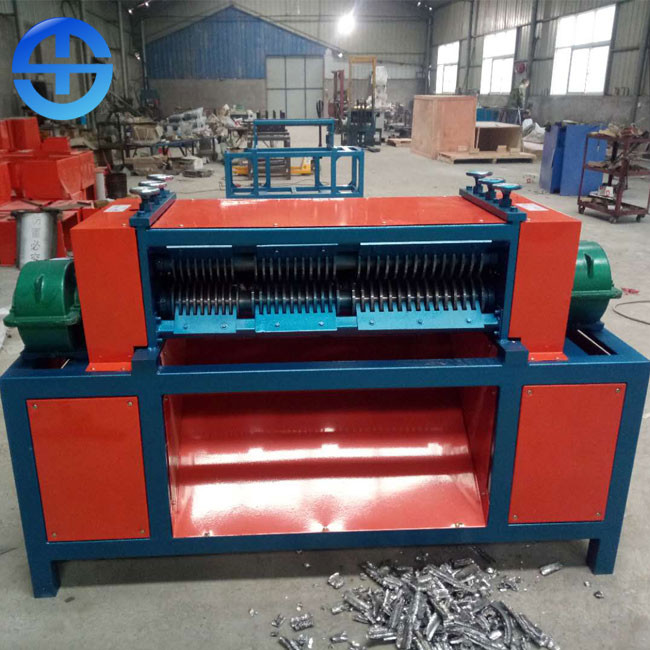

100% Separating Rate Radiator Copper And Aluminum Separating Machine



Description of radiator copper and aluminum separating machine



Radiator copper and aluminum separating machine is designed to strip and separate the scrap radiator for recycling copper and aluminum with high efficiency and stable performance. There are three kinds of blade center distance: 19mm, 21mm and 25mm; that is to say it can strip the radiator whose copper tube center distance is 19mm, 21mm or 25mm.

Before processed, the radiators shall be cut with a band saw into pieces of certain width. It can separate one layer or two layers radiators. When radiators are more than two layers, it will be cut into one layer or two layers by band saw machine.

Technical parameter of radiator copper and aluminum separating machine



Model TMS-016
Dimension 1800*800*1200mm
Capacity 2-3 Ton/day
Power 3kw+4kw
Weight 600kg
Voltage 380V/50HZ or Customised



Features of Copper and Aluminum Separating Machine


1. After the copper and aluminum separated, the copper pipes are not damaged and almost no copper loss.
2. This machine can separate one layer of radiators or two-layer of radiators.
3. Each set of this machine can separate three kinds of copper pipe center distances, namely 25mm, 21mm and 19mm. (It also can be customized according to your copper pipe center distance.)
4. Easy operation, high efficiency and labor-saving.
5. Drying separating process and no crushing is needed.



Application of radiator copper and aluminum separating machine



Various water tanks, convection radiators, steel radiators, aluminum radiators, copper radiators, stainless steel radiators, copper-aluminum composite radiators, etc., as well as the original cast iron radiators.



Attention



1) This TMS-016 radiator copper and aluminum separating machine can process the radiators which is flat and non-deformed .
2) The diameter centerline of the copper pipes in level need to be 19mm or 21mm or 25 mm , if your radiator is other size , we also can customized for you .
3) This machine only can process radiator fins with single layer or double layer . If your radiator is multiple layers , you need to cut the radiators by band saw machine firstly . Then it can be processed by this radiator copper and aluminum separating machine .



FAQ of radiator copper and aluminum separating machine



1. Is there quick wear part on the machine?

The spare part of the machine is blades, their use life is more than 2 years, and we could also supply blade sharping machine to you for maintenance.

2. What’s the lognest continuous working time for the recycling machine?

Whole day.

3. Is the machine easy to operate? How many workers required to operate it?

We design precise but simple control system for the machine. One or two worker is required.



100% Separating Rate Radiator Copper And Aluminum Separating Machine 0
