3mm 4mm Pellet Size Flat Die 260mm Animal Feed Pellet Mill
Contact Person : Thomas Wang
Phone Number : +86 18203683590
WhatsApp : +8618203683590
|Minimum Order Quantity :||1 set||Price :||USD2500-2650 per set|
|Packaging Details :||Exported ply wooden case||Delivery Time :||10-20 working days|
|Payment Terms :||L/C, T/T, Western Union||Supply Ability :||80 sets per month|
|Place of Origin:||Zhengzhou, China||Brand Name:||TMS|
|Certification:||CE, ISO||Model Number:||300|
|Name:||Wood Pellet Mill Machine||Function:||Produce Pellet As Feed Or Fuel|
|Die:||Flat Die||Material Moisture:||10-18%|
|Raw Material:||Bean Pulp, Maize, Grass, Wheat Bran, Rice Hull Etc||Pellet Size:||3 - 8mm|
800kg/H Biomass Pellet Machine,
600kg/H Biomass Pellet Machine,
800kg/H Wood Pellet Mill Machine

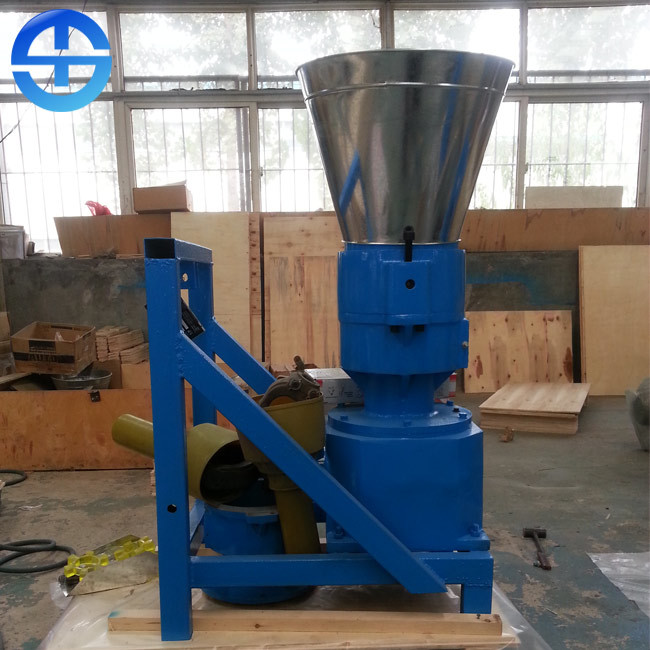

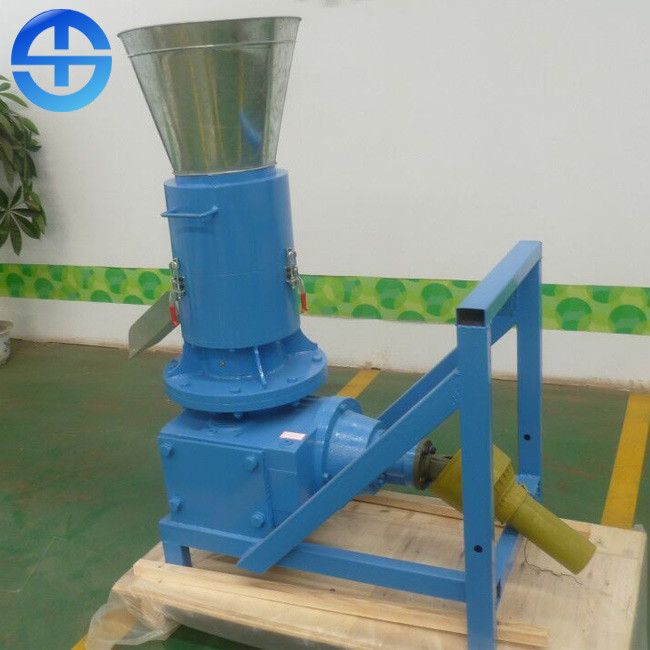

22kw Large Capacity 600-800kg/H Biomass Wood Pellet Mill Machine
Biomass pellet can take the agricultural and forestry processing wastes such as sawdust, straw, rice husk, bark and other biomass as raw materials, and solidify them into high-density pellet fuel through pretreatment and processing. It can not only save energy, but also reduce emissions, economic and social benefits. It is an efficient and clean renewable energy. Biomass pellet machine is divided into flat biomass pellet and ring biomass pellet and updated products. Our company mainly produce the flat biomass pellet machine.
Features of wood pellet mill machine
1. It has simple structure and it can be easily cleaned and maintained.
2. It provides small capacity at lower price; it is in small size and light weight; it is a best choice for pellet production on a small scale.
3. This pellet mill is easy to operate--just 1 or 2 workers can operate the pellet machine.
4. Operators are able to have a view of the chamber, so it is easy to find problems during pelleting.
5. Spare parts, i.e. rollers and die are easy to change.
6. It is also a right choice for wood pellet producers and animal bedding pellet producers.
Advantages of wood pellet mill machine
Wood pellet mill machine enjoys high efficiency, stable performance, strong durability, and little maintenance. Its die compression ratio can be adjusted according to the specific raw material. And the service life of its flat die prolongs as both sides of the die can be used. It is made of high-quality steel, thus ensuring the machine’s long service life.
Materials of wood pellet mill machine
For making animal feed: The suitable raw materials for making feed pellets include bean pulp, maize, grass, wheat bran, rice hull, straw, silage, etc. Pelleted feed made by the flat die pellet mill can be stored for a long time. It can shorten the period of feeding, so it can efficiently guarantee many users' productive cost. Feed pellets are mainly adopted to feed cattle, chicken, pig, rabbits and other animals.
For making fuel pellets: Raw materials for biomass pellets mainly include: wood wastes (such as sawdust, wood chips, wood shavings, and other parings from furniture manufacturers or wood working factory; wood wastes including pine tree waste, spruce tree waste) and agricultural wastes (like rice straw, peanut shells, coconut shells, palm wastes, corn stover, switchgrass, etc.). In the process of making wood pellets, the lignin and resin of woods can serve as binder for pelletizing. So there is no need to add any additives.
Technical parameters of wood pellet mill machine
|Model||Power||Output (kg/h)||Dimension (mm)||G.W||N.W||Moisture required|
