250 Ton Pressure 500*500mm Bale Size Scrap Metal Baler Scrap Recycling Machine
Contact Person : Thomas Wang
Phone Number : +86 18203683590
WhatsApp : +8618203683590
|Minimum Order Quantity :||1 set||Price :||negotiable|
|Packaging Details :||Standard exported ply wooden case||Delivery Time :||10 work days|
|Payment Terms :||L/C, T/T, Western Union||Supply Ability :||20 sets per month|
|Place of Origin:||China||Brand Name:||TMS|
|Certification:||CO, ISO||Model Number:||TMS-400|
|Name:||Copper Wire Granulator Machine||Usage:||Recycle Scrap Copper Wire|
|Size:||2700*1900*2300 Mm||Power:||23.12 Kw|
|Wire Diameter Processed:||0.1-20 Mm||Capacity:||150-200 Kg/h|
|Copper Purity:||99.9%||Voltage:||380 V Or Customised|
copper wire recycling machine,
scrap metal recycling equipment

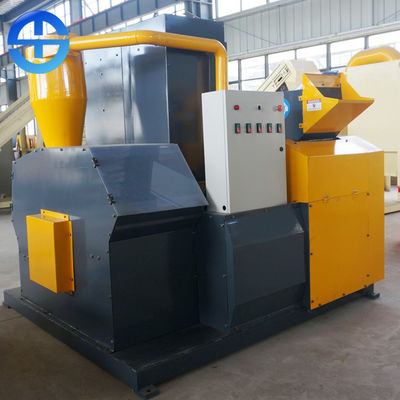

Medium model 400 copper wire granulator machine capacity 150-200 kg/h

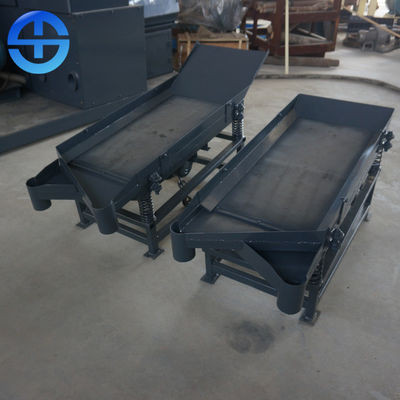

The copper wire granulator machine is used for recycling scrap copper wires & cables with diameter less than 20mm. Such as auto wires, communication cables and kinds of miscellaneous wires and cables. Firstly, the material is feed into the crusher and crushed into about 3-5 mm, then the granules is conveyed to the vibrating table by the suction fan. Finally, plastic and copper granules are separated by vibration and blower. The copper purity can be reach 99.9%. Greatly increased the copper profit.
1. Compact structure, Low power consumption, Stable performance.
2. Adopt totally closed production mode, good dust collector, no pollution for environment.
3. One time feeding, Single machine finished.
4. Environment protected, and low noise.
|Model||Power||Blade QTY||Cpacity||Size (mm)||Voltage||Weight|
|TMS-400||23.12kw||10 +2 pcs||150-200 kg/h||2700*1900*2300||customised||1600 kg|
