250 Ton Pressure 60 Ton/Day 80 Ton/Day Scrap Metal Baler

Minimum Order Quantity : 1 set Price : USD49500-51600 per set
Packaging Details : Full container 20'GP or 40'GP for metal baling machine Delivery Time : 25 work days
Payment Terms : L/C, T/T, Western Union Supply Ability : 10 sets per month
Place of Origin: Zhengzhou, China Brand Name: TMS
Certification: CE, ISO Model Number: 2500

Detail Information

Name: Scrap Metal Baler Function: Press Metals Into Bale
Motor Power: 22kw+22kw Pressure: 250 Ton
Material Box: 2.0*1.5*1.0m Bale Size: 500*500mm
Bale Weight: 300kg Bale Out: Turn Over
High Light:

80 Ton/Day Scrap Metal Baler

,

60 Ton/Day Scrap Metal Baler

,

60 Ton/Day metal scrap baling press machine

Product Description

250 Ton Pressure 60 Ton/Day 80 Ton/Day Scrap Metal Baler

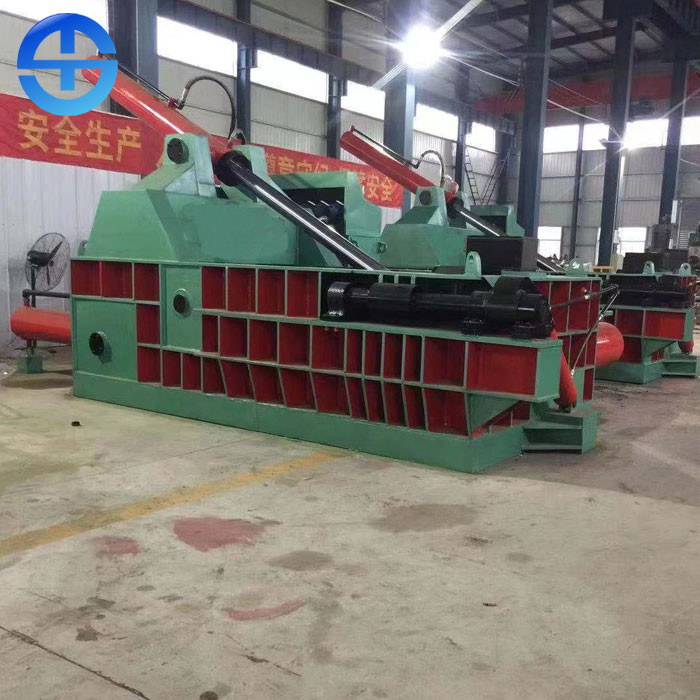

250 Ton Pressure 60 Ton/Day 80 Ton/Day Scrap Metal Baler 0

Purpose of scrap metal baler

Scrap metal baler can cold press each kind of metal scrap including leftover bits and pieces, scrap steel, waste oil tank and disassembled vehicle hood etc. that have the thickness under 2mm into block to facilitate transportation, handling and storage, which is an ideal equipment for recovery and steel enterprises.

Features of scrap metal baler

1) Hydraulic drive is used in this machine, having reasonable design, compact structure and reliable sealing performance.

2) Super bin design with large one-time feeding and high working efficiency.

3) Stable movement, low consumption of motive power, strong adaptability and visibility of operating.

4) 100 degree turnover type bale discharging form, having clear, ordered and beautiful corner angle.
Overall structure of scrap metal baler

This machine is composed of frame, hydraulic system and electric system.
1. Main machine is composed of frame, door cover and cover cylinder, main cylinder and main pressure head, side cylinder and side pressure head, bale turning cylinder and bale turning machine etc.
1) Frame is composed of base, right and left wall plates, cover plate, main cylinder bracket, side cylinder frame etc. Compressed bin is composed of base, right and left wall plates, door cover, main pressure head, side pressure head and panel turnover etc., each part (except panel turnover) is installed with abrasion resistant lining board through carburizing and quenching.
2) Door cover and cover cylinder. Door cover should be hinge jointed with spindle sleeve on right and left wall plates, cover cylinder should also be hinge jointed with beam support by pin, slipper of door cover (tapered end should be installed at front end) should be connected with piston rod head of cover cylinder, under movement of cover cylinder, close and open of door cover are finished, at this time, it takes effect of tight locking and loose locking.
3) Main cylinder and main pressure head. Main cylinder should be installed at lower side part of cover cylinder support, main pressure head should be connected with piston rod of main cylinder with screw, under the advance and retreat effect of main cylinder, impaction and return action of bale block are finished.

4) Side cylinder and side pressure head. Side cylinder should be installed at lower side part of cover cylinder support, side pressure head should be connected with piston rod of side cylinder with screw, under the advance and retreat effect of side cylinder, precompression and return action of bale block are finished.
5) Bale turning cylinder and bale turning mechanism. Bale turning cylinder and bale turning mechanism should be installed in opposite to the main cylinder, turnover and reset action of bale block are finished by advance and retreat of bale turning cylinder.
6) All main cylinder, side cylinder, cover cylinder and bale turning cylinder are of single piston rod double acting cylinder, there is a piston inside cylinder which is installed with sealing component, it makes the cylinder body form front and rear oil chambers. When high-pressure oil acts on front chamber (rear chamber), piston will be pushed and made advance movement (return movement). Cylinder port is designed with a guide sleeve that is used for supporting guides and sealing of piston rod.
2. Hydraulic system is composed of motor pump station, valve station, oil tank and pipeline etc.
3. Electric system is mainly composed of motor start circuit etc.

Technical datas of scrap metal baler
Model 2500
Nominal pressure 2500KN
Power 22kw+22kw
Pump 160YCY14-1B
Material box size 2000*1500*1000mm
Bale size 500*500mm
Bale-out  Turn over / manual
Bale density ≥2200kg/m3
Production efficiency  60-80 ton / day

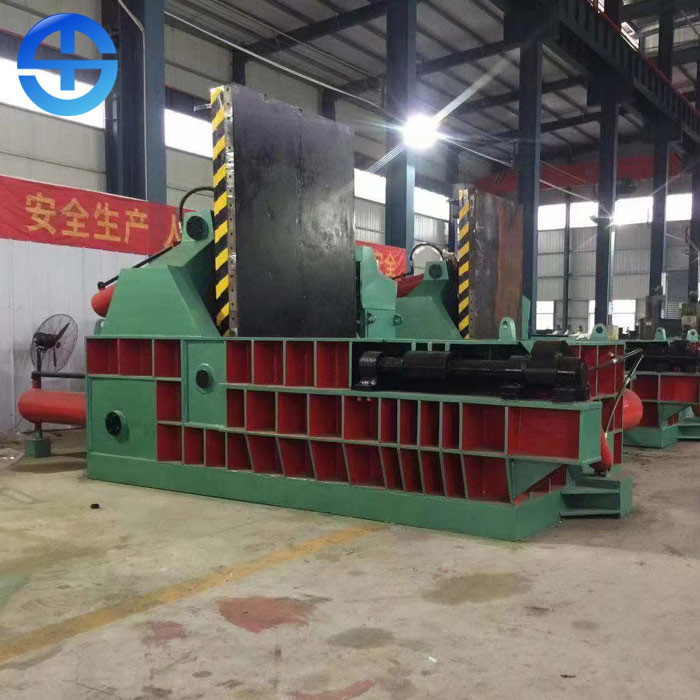

250 Ton Pressure 60 Ton/Day 80 Ton/Day Scrap Metal Baler 1
