250 Ton Pressure Bale 450*450mm Scrap Metal Baler Machine

Minimum Order Quantity : 1 set Price : USD49500-51600per set
Packaging Details : Full container 20'GP or 40'GP for scrap metal baler machine Delivery Time : 15 work days
Payment Terms : L/C, T/T, Western Union Supply Ability : 15 sets per month
Place of Origin: Zhengzhou, China Brand Name: TMS
Certification: CE, ISO Model Number: 2500

Detail Information

Name: Scrap Metal Baler Machine Usage: Press Metals Into Bale
Motor Power: 30kw Main Pressure: 2500KN
Material Box: 2000*1500*1000mm Bale Size: 450*450mm
Bale Weight: 230-280kg Bale Out: Turn Over / Manual
High Light:

450*450mm Scrap Metal Baler

,

250 Ton Scrap Metal Baler

,

250 Ton metal baler machine

Product Description

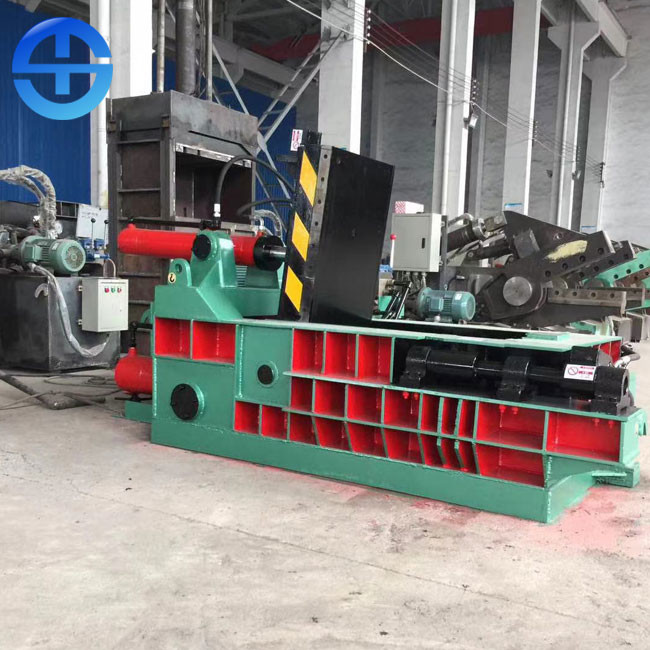

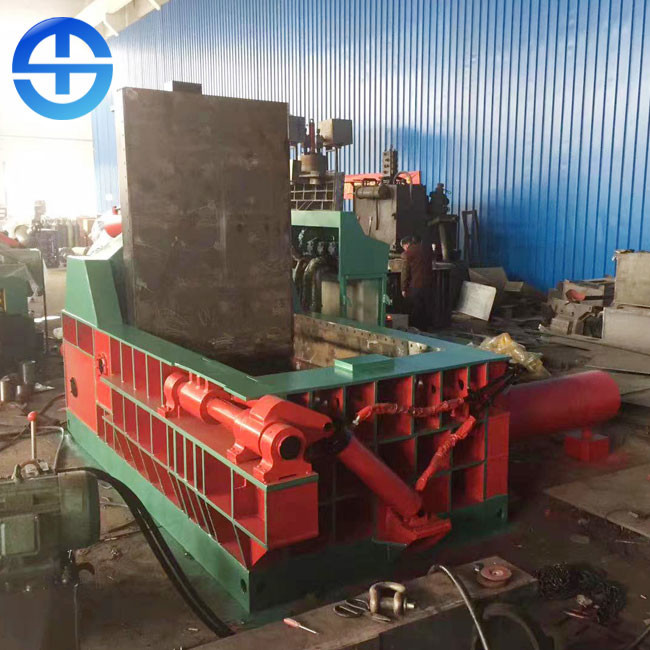

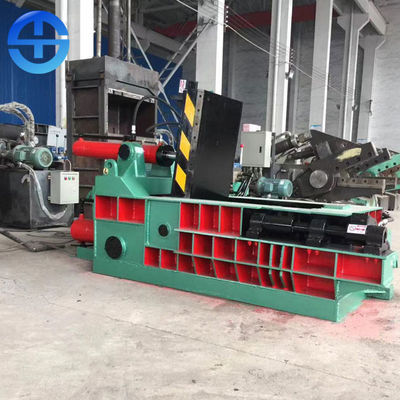

250 Ton Pressure Bale 450*450mm Scrap Metal Baler Machine

250 Ton Pressure Bale 450*450mm Scrap Metal Baler Machine 0

Description of scrap metal baler machine

Scrap metal baler machine can extrude various relatively large metal scraps, scrap steel, scrap iron, scrap copper, scrap aluminum, disintegrated automobile shell, waste oil barrel, etc. into qualified charges of various shapes such as cuboid, cylinder, octagon, etc. It is convenient for storage, transportation and recycling. After pressing into blocks, it is put into furnace to recover and use, and the loss is very low. The whole production process does not need heating, additives or other processes, direct cold pressing molding, molding together also ensures the original raw materials unchanged. For example, cast iron chips are used instead of cast pig iron. For the castings with special raw materials, the meaning of recovery is greater.

working principle of scrap metal baler machine

One is to run the scrap metal baler machine with no load, start the motor oil pump, the spool of the directional valve is in the middle, the output oil of the oil pump returns to the oil cylinder through the electro-hydraulic directional valve under the pressure regulated by the relief valve, and the system is unola. The second is the hydraulic packing action. When the oil pump is working, the output of the oil pump enters through the control valve under the regulated pressure through the directional valve. The piston rod behind the main cylinder chamber slowly drops, and the oil in front of the cylinder is Rutu. The oil tank is connected to the oil tank through the reversing valve, and the packing machine realizes the packing function; finally, the metal hydraulic packer is reset, and the oil pump works, and the output of the oil pump is transferred to the front chamber of the main oil cylinder under the regulated pressure, and the oil returns to the oil tank and the packing box at the rear of the oil cylinder, and the oil tank returns.

Features of scrap metal baler machine

(1) All kinds of machines are driven by hydraulic pressure. Manual or PLC automatic control operation can be selected.

(2) The device does not need foot screw, and can be equipped with diesel engine for power in places without power supply.

(3) There are two forms of package delivery: turn over, side push and forward out.

(4) There are eight levels of extrusion force from 63 tons to 400 tons, and the production efficiency is from 0.5 tons / hour to 20 tons / hour.

(5) According to the customer's specific scrap metal, furnace mouth and other factors, the size of the material box and the shape of the bale can be customized according to the user's material standard.
Technical parameters of scrap metal baler machine

Model 2500
Nominal pressure 2500KN
Power 22kw+22kw
Pump 160YCY14-1B
Material box size 2000*1500*1000mm
Bale size 500*500mm
Bale-out  Turn over / manual
Bale density ≥2200kg/m3
Production efficiency  60-80 ton / day
250 Ton Pressure Bale 450*450mm Scrap Metal Baler Machine 1
