380V/50HZ Readiator Recycling Machine Radiator Copper Pipe Recycling Machine

Minimum Order Quantity : 1 Set/Sets Price : US $4,000-6,500 / Sets
Packaging Details : radiator copper pipe recycling machine is packed by ply wooden case which meet export standard. Delivery Time : 5-8 work days
Payment Terms : L/C, T/T, Western Union Supply Ability : 50 Set/Sets per Month
Place of Origin: Henan, China (Mainland) Brand Name: TMS
Certification: CE, CO, ISO Model Number: TMS-016

Detail Information

Appliction: Scrap Radiator Function: Separate Copper From Radiator
Power: 3 Kw+4 Kw Capacity: 2000-3000 Kg/day
Dimension: 1800*800*1200 Mm Weight: 600 Kg
Voltage: 380v/50HZ After-sales Service Provided: Engineers Available To Service Machinery Overseas
High Light:

scrap metal granulators

,

copper cable granulator machine

Product Description

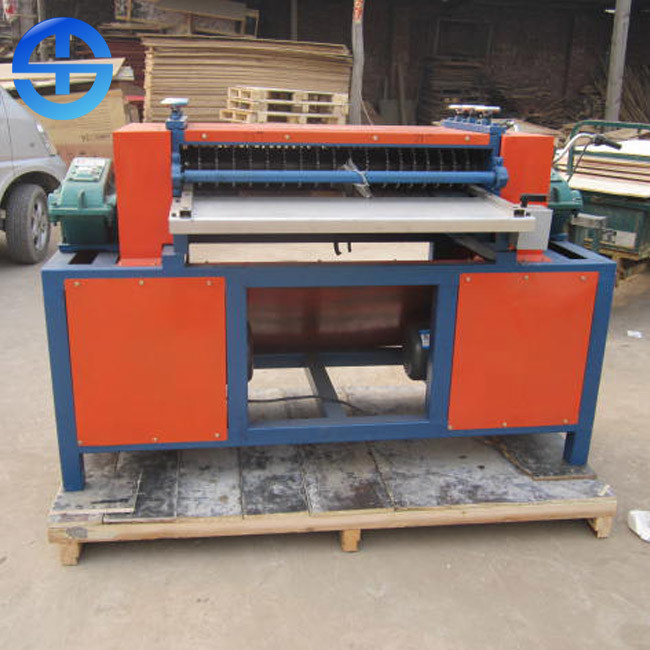

380V/50HZ Readiator Recycling Machine Radiator Copper Pipe Recycling Machine 0



Product Description

Radiator copper pipe recycling machine is designed to strip and separate the scrap radiator for recycling copper and aluminum with high efficiency and stable performance. There are three kinds of blade center distance: 19mm, 21mm and 25mm; that is to say it can strip the radiator whose copper tube center distance is 19mm, 21mm or 25mm

Before processed, the radiators shall be cut with a band saw into pieces of certain width. It can separate one layer or two layers radiators. When radiators are more than two layers, it will be cut into one layer or two layers by band saw machine.

Operation

1.Before feeding, cut large radiators into small pieces ( one or two floor),make sure the width 30-40cm

2. Please put the radiator into the correct feeding hole. ( see the distance between two copper tubes)

3. Turn on the power, feed the radiators , the radiator separated by blades & pressure wheel, so you can recycle the copper from the radiator.

4. If the radiator don’t separate or the blade cut so deep. You need to adjust by the Knob handle, let the blade and the shaft in the suitable position

5. To protect the motor, you need to add oil to reducer.

Technical Parameters
Model Dimension Capacity Power Weight Motor
TMS-016 1800*800*1200 mm 2000-3000 kg/day 3+4 kw 600kg 380V/50HZ
Packaging & Shipping

Radiator copper pipe recycling machine is packed by export standard ply wooden case. It is solidly and can not broken during transportation.

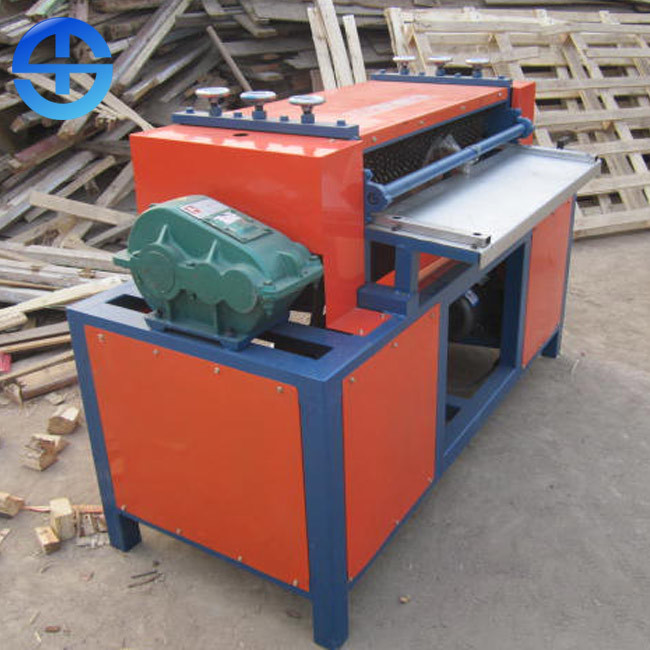

380V/50HZ Readiator Recycling Machine Radiator Copper Pipe Recycling Machine 1

Our Services

1. We provide good after-sale service. If spare part is broken not for man-made reason, we will send new one to you free.

2. We also can send our engineer to your place to guide you and your worker to operate this machine.

3. Extra blades will be sent to you free when deliver this machine.

FAQ

1. Is there quick-wear part on the machine?

The spare part of the machine is blades, their use life is more than 2 years, and we could also supply blade sharping machine to you for maintenance.

2. Whats the lognest continuous working time for the recycling machine?

Whole day.

3. Is the machine easy to operate? How many workers required to operate it?

We design precise but simple control system for the machine.

One or two worker is required.
