3 Ton/Day AC Radiator Recycling Machine 100% Separation

Minimum Order Quantity : 1 Set/Sets Price : USD5720-5980 per set
Packaging Details : Ply wooden case which meet export standard for radiator recycling machine Delivery Time : 7 work days
Payment Terms : L/C, T/T, Western Union Supply Ability : 40 sets per month
Place of Origin: Zhengzhou, China Brand Name: TMS
Certification: CE, ISO Model Number: TMS-017

Detail Information

Name: Radiator Recycling Machine Raw Materials: AC Radiators
Usage: Separate Copper From Aluminum Power: 3kw+4kw
Daily Production: 2-3 Ton/day Machine Dimension: 1800*800*1200mm
Machine Weight: 600kg Voltage: 380V, 220V, 240V
High Light:

3 Ton/Day AC Radiator Recycling Machine

,

4kw AC Radiator Recycling Machine

,

3 Ton/Day copper wire granulator

Product Description

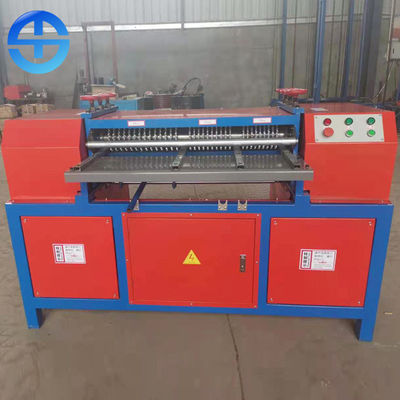

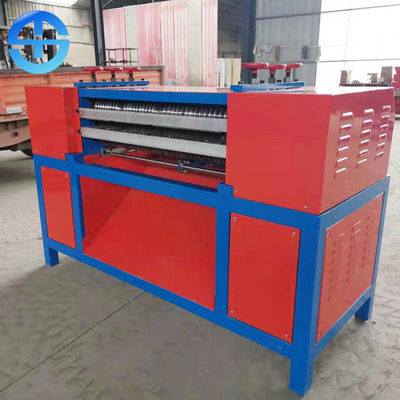

3 Ton/Day Production 100% Separation AC Radiator Recycling Machine



Introduction of radiator recycling machine



Air conditioner radiators are almost exclusively made of copper pipe and aluminum fin. To recycle scrap AC radiator, copper and aluminum are to be separated to get a higher price. Our radiator recycling machine is designed to separate complete copper pipe from aluminum fin. Our radiator recycling plant can crush whole radiators to recycle metal pieces separately.

Radiator recycling machine can completely strip copper pipes inside the discarded copper aluminum air conditioning radiator, aluminum foils also keep the type of blocks, can strip the production of single-layer and double-layer copper pipes by simply setting up the same machine, copper pipes and aluminum foils can be quickly separated with high efficiency and simple operation. In terms of safety, set up the light eye control at the inlet of materials, and when working, set up the position by hand, and the machine stops running. There are three kinds of blade center distance: 19mm, 21mm and 25mm; that is to say it can strip the radiator whose copper tube center distance is 19mm, 21mm or 25mm. Before processed, the radiators shall be cut with a band saw into pieces of certain width. It can separate one layer or two layers radiators. When radiators are more than two layers, it will be cut into one layer or two layers by band saw machine.



Technical datas of radiator recycling machine



Model TMS-17
Machine Dimension 1800*800*1200mm
Daily Production 2-3 ton/day
Motor power 3kw & 4kw
Machine Weight 600kg
Voltage 380V/50HZ, 3Phase or Customized



Advantage of radiator recycling machine



1. Compact structure, taking up small area.
2. No damage to copper pipe, no copper loss.

3. The user can adjust the blades using the handle provided.

4. This machine is simple in structure consisting of a frame, two motors, two speed reducers, material feeding part, material cutting part, material separation unit, transmission unit and a material feeding panel.

5. We can customise the machine depending on the distance between the copper tubes in the radiators you wish to recycle.


Material requirement of radiator recycling machine



1. Iron heads of radiators must be cut off the two sides of radiators.

2. Radiators must be cut with a band saw according to the width of each Material Inlet.

3. Radiators that are more than 2 layers must be cut into one layer and two layers with the band saw.

4. Do not feed radiators into wrong Material Inlets (three inlets each are for 19mm, 21mm, 25mm radiators respective).

5. For both one-layer and two-layer radiators, the left side of radiators must touch the Guiding Rulers and are radiators must be fed into Material Inlets along the guiding rulers.

6. Twisted radiators can not be processed.

3 Ton/Day AC Radiator Recycling Machine 100% Separation 0
