Double Rolling Double Knife 3 Kw Copper Wire Stripping Machine

Minimum Order Quantity : 1 set Price : Negotiable
Packaging Details : Standard exported ply wooden case Delivery Time : 7 work days
Payment Terms : L/C, T/T, Western Union Supply Ability : 200 sets per month
Place of Origin: China Brand Name: TMS
Certification: CO, ISO Model Number: KOA

Detail Information

Name: Copper Wire Stripper Function: Strip 1-65mm Wires
Power: 3kw Wire Diameter Stripped: 1-65mm
Size: 700*630*820 Mm Blades: 2 Pieces
Wire Hole: 14 Weight: 110kg

Product Description

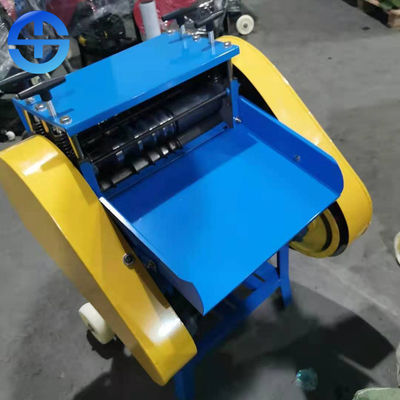

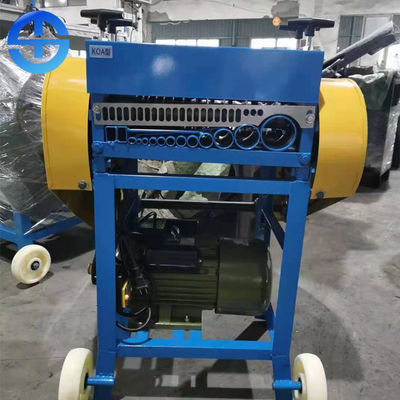

Double Rolling Double Knife 3 Kw Copper Wire Stripping Machine



Description of copper wire stripper



Copper wire stripper is used to strip scrap copper wires and cables to recycle the net copper. It can process wires with diameter 1-65 mm. One point needs to pay attention is that the wires and cables to be processed should be straight or without knots.



Technical specification of copper wire stripper



Model KOA
Power 3kw
Wire diameter stripped 1-65mm
Blades 2pcs
Hole 14
Size 700*630*820 mm
Weight 110kg
Output 30 m per minute



Features of copper wire stripper



1. Multi-functional wire & cable stripper is driven by single or three phase motor. It can be used to process various wires, wrapped copper clad, wrapped aluminum wire and the steel wire etc.
2. Our wire stripping machine can strip single-core and double-core flat wires at one time. The machine is equipped with many wire holes to process different types of wires, such as round wire hole, twins wire hole, rack knife wire hole as well as pressing wire hole.
3. Two adjusting handles can change the distance between knives to process wires with different diameter.
4. Gearbox and electric motor is equipped with start and stop button which can ensure safe operation.
5. The copper wires stripped by wire stripper machine is still entire which are easy to store and convenient to be remanufactured.
6. Others: Easy operation, simple knife change, low cost and no pollution. What’s more, all our wire stripping machines are with CE certification.



Basic accessories of copper wire stripper



1. Wire feeding wheel: conveying wire rod and stripping wire head. When stripping the short wire, the wire stripper strips both the wire head and the wire tail (the wire length is less than 50mm). When stripping, in addition to the wire head, the wire stripper also has the function of stripping the middle parts.

2. Outlet wheel: conveying wire rod and stripping outlet tail for wire stripper( The wire stripper has no function when stripping short wires, and the "outlet wheel lifting knob" shall be in the "U" position)

3. Clearance adjustment knob of incoming pulley: adjust the clearance of incoming pulley of wire stripper, increase the upward rotation clearance and decrease the downward rotation clearance (adjust according to the thickness of wire).

4. Pressure adjustment knob of wire stripper inlet wheel: adjust the pressure of wire stripper inlet wheel, rotate clockwise after pulling out, the pressure of wire inlet wheel increases, rotate counterclockwise after pulling out, and the pressure of wire inlet wheel decreases( It is determined according to the wire skin strength of the wire rod, that is, it is difficult to peel the wire, the pressure increases if it is difficult, and the pressure decreases if it is easy)

5. Lifting knob of wire feed wheel: lift the wire feed wheel when threading the wire stripper. Turn the knob clockwise to lift the wire feed wheel so that it can pass through the wire smoothly; When working, put down the incoming wheel and turn the knob counterclockwise to put down the incoming wheel and press the wire.

6. Outlet wheel clearance adjustment knob: adjust the outlet wheel clearance for the wire stripper. The upward rotation clearance increases and the downward rotation clearance decreases (adjusted according to the thickness of the wire).

7. Outlet wheel pressure adjustment knob: adjust the outlet wheel pressure for the wire stripper. After pulling out, rotate counterclockwise to increase the outlet wheel pressure. After pulling out, rotate clockwise to reduce the inlet wheel pressure( It is determined according to the wire skin strength of the wire rod, that is, it is difficult for the wire stripper to peel, the pressure increases if it is difficult, and the pressure decreases if it is easy)

8. Outlet wheel lifting knob: lift the outlet wheel when taking out the wire rod. Turn the knob counterclockwise to lift the outlet wheel so that the wire rod can be taken out smoothly; Put down the outlet wheel during operation, and turn the knob clockwise to put down the outlet wheel( When using the short stripping procedure, the outlet wheel shall be lifted)

9. Tool holder assembly: in the wire stripper, it is responsible for cutting wire, stripping head and tail. In the shutdown state, the upper and lower blades need to be opened to the maximum so that the wire can pass through the tool smoothly.



Double Rolling Double Knife 3 Kw Copper Wire Stripping Machine 0
