High Performance Radiator Recycling Machine Large Scale 150000 Kg Weight

Minimum Order Quantity : 1 set Price : negotiable
Packaging Details : One 40 feet container Delivery Time : 20 work days
Payment Terms : L/C, T/T, Western Union Supply Ability : 15 sets per month
Place of Origin: China Brand Name: TMS
Certification: CO, ISO Model Number: TMS-500

Detail Information

Name: Radiator Recycling Plant Function: Recycle Radiator
Power: 118.3 Kw Capacity: 800-1000 Kg/h
Separating Rate: 99% Size: 12000*9000*40000
Material: Scrap Radiator Weight: 150000 Kg
High Light:

copper separator machine

,

plastic separator machine

Product Description

High performance TMS-500 scrap radiator recycling plant machine



Machine Introduction

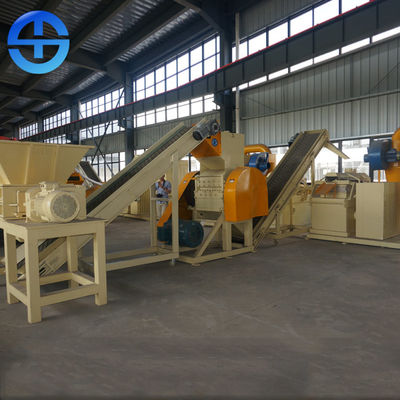

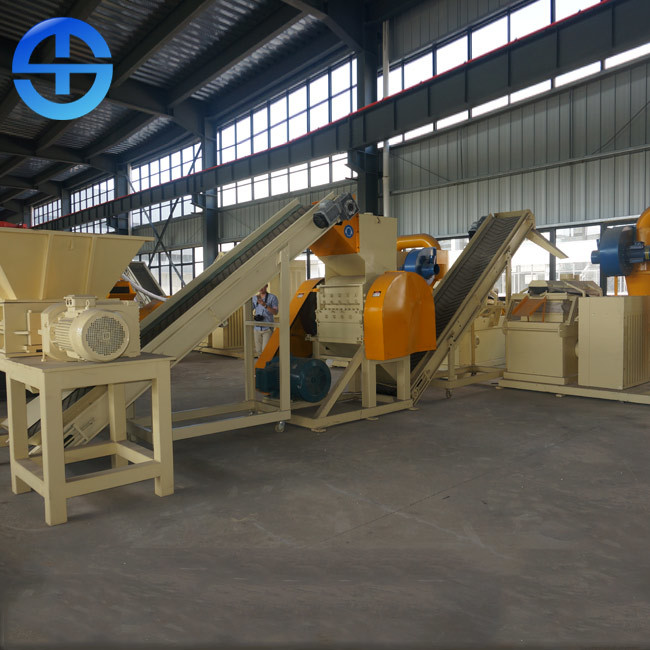

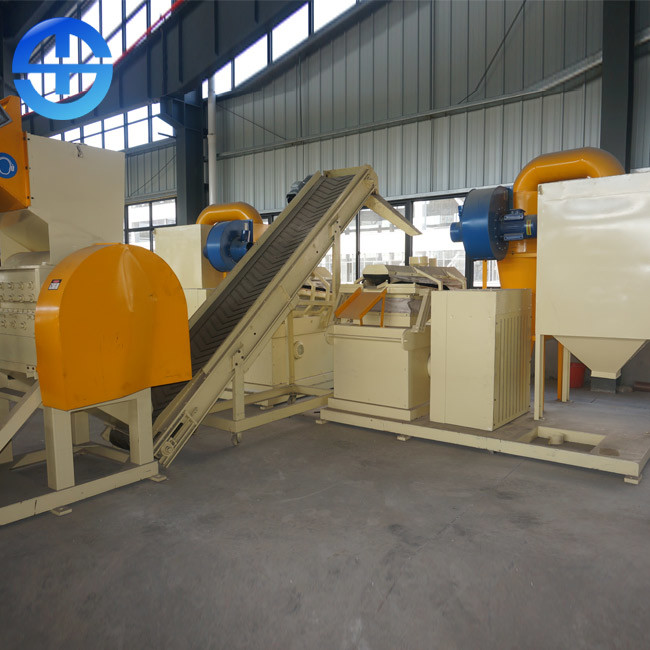

The radiator recycling plant is a large-scale separation equipment specializing in processing air-conditioning radiator fin and automobile water tank radiator fin. It has a high separation effect on copper, iron, aluminum and other materials in radiator fin. The separation rate can reach 98%. The development of this equipment successfully solves the cost and efficiency problems caused by manual disassembly and separation.

Through the first crusher, the equipment breaks the bulk material into 5-10cm size. After conveying to the crusher for secondary crushing, the crushed material is 10-15mm in size. Through the screening of magnetic separator, the magnetic material such as iron is separated from the crushed material. After the separation of copper and aluminium by vibration separator, copper, iron, aluminium dust and other substances are eventually separated.

Specification table

Model Dimension (mm) Capacity Power (kw) Weight (kg)
TMS-500 7640*6000*4000 800-1000 kg/h 118.3 15000

The details

Item Dimension (mm) Qty (pc) Power (kw)
Double-shaft crusher 1100*1800*1960 1 44
Belt conveyor 3300*1100*2500 4 2.2*4
Second shredder 1700*1550*2900 1 45
Magnetic separator 3500*1500*2100 1 1.5
Vibrating separator 3800*2000*4000 2 9.5*2
