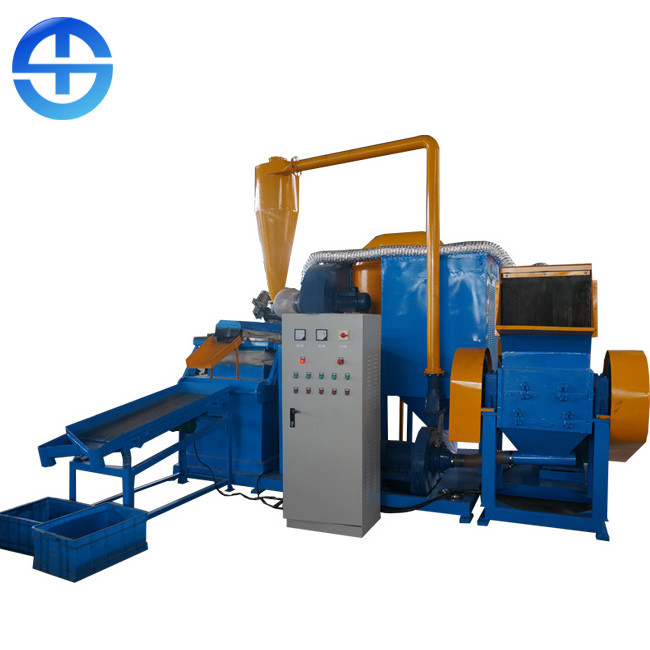

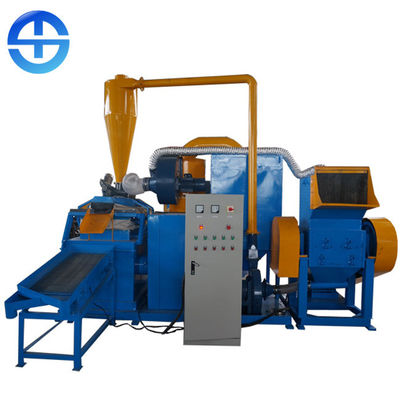

High purity copper granulator recycling machine for scrap copper wire
Copper granulator machine is used for recycling scrap copper wires/cables with diameter less than 20mm, better for single conductor diameter of 0.2-0.5mm. Scrap copper wires are shredded by crushers, then plastic and copper granules are separated by vibration and airflow. They come out from different outlets, dust is collected by dust collector.
Advantage
1. the whole system is controlled by the Electricity Control Panel.
2. The bottom air flow is controlled by the Airlock.
3. The operation is stable.
4. Minimum copper recovery rate can reach 99%.
| Equipment Components | Crusher |
Motor Power:37 kw Blade Quantity: 10 Quantity of Fixed Blades: 4 Screen Size: Φ3mm / Φ4mm Spindle speed: 600r/min |
| Separator |
Vibration Motor: 1.5 kw Vibration: Frequency Regulation Screen Diameter: 100mesh |
|
| Bottom Blower Fan |
Fan Power: 4 kw Filter: Φ325*900*2 Air Volume Control: Airlock Control |
|
| Upper Suction Fan |
Fan power: 4 kw Material Collecting Mode: Cyclone Dust Collector Collecting Bag: 1 Dust bag: 9 |
|
| Regulating Airlock | Fan Power: 0.37 kw |
