Industry Copper Wire Granulator Copper Wire Shredder Machines 23.12 Kw

Minimum Order Quantity : 1 set Price : negotiable
Packaging Details : Standard exported ply wooden case Delivery Time : 10 work days
Payment Terms : L/C, T/T, Western Union Supply Ability : 20 sets per month
Place of Origin: China Brand Name: TMS
Certification: CO, ISO Model Number: TMS-400

Detail Information

Name: Copper Wire Granulator Usage: Crush And Separate Copper
Size: 2700*1900*2300 Mm Power: 23.12 Kw
Wire Diameter Processed: 0.1-20 Mm Capacity: 150-200 Kg/h
Copper Purity: 99.9% Voltage: 380 V Or Customised
High Light:

scrap metal granulators

,

copper cable granulator machine

Product Description

Dry type capacity 150-200 kg/h copper wire granulator in recycling industryDescription

Description of copper wire granulator

The copper wire granulator is used for recycling scrap copper wires & cables with diameter less than 20mm. Such as auto wires, communication cables and kinds of miscellaneous wires and cables. Scrap materials are crushed by crusher, then plastic and copper are separated by vibration and airflow. The copper purity can be reach 99.9%. Greatly increased the profit.

Technical parameters of copper wire granulator

Model TMS-400
Total Power 23.12
Blade QTY 10+2 PCS
Capacity 150-200kg/h
Size 2700*1900*2300mm
Voltage Customised
Weight 1600kg

Features of copper wire granulator

1. Compact structure, Low power consumption, Stable performance.

2. Adopt totally closed production mode, good dust collector, no pollution for environment.

3. One time feeding, Single machine finished.

4. The copper purity can be reach 99.9%.

5. Easy operation, Save labor cost.

Scope of application and function of copper wire granulator

Dry powder mixed copper wire granulator is specialized in processing all kinds of cables with diameter less than 20 mm, such as automobile cable, communication cable, etc., and all kinds of mixed wire cables that are not suitable for processing by wire stripper. After crushing and processing, vibrating screen separation, vibrating separation and washing separation are carried out. It can completely separate copper from plastic and achieve the purpose of comprehensive utilization with high economic benefits. And no dust, no secondary pollution. In addition, the equipment is an integral combined structure, which is convenient for installation and debugging, and convenient for transportation. After customers purchase it, they can produce it by connecting the power supply, with stable performance.

Classification of copper wire granulator

1. The so-called dry type refers to the copper wire granulator without adding water in the separation process. This kind of copper wire granulator mainly uses air separator, air shaker or electrostatic separation and other environmental protection methods. The main technological process is: crushing - Air Separation - Electrostatic Separation - dust collection. (electrostatic separation is rarely used in copper rice machine.)

2. Wet separation is a more traditional method. The idea of this separation method mainly comes from mineral processing. The wet type is mainly separated by gravity shaker. The main technological process is: crushing and (adding water) - gravity shaker (adding water), because water is used in the production process, so in general, this method causes a small amount of secondary pollution to the environment, but it can effectively recover miscellaneous thread, plug thread and wool thread, etc., which is widely used.

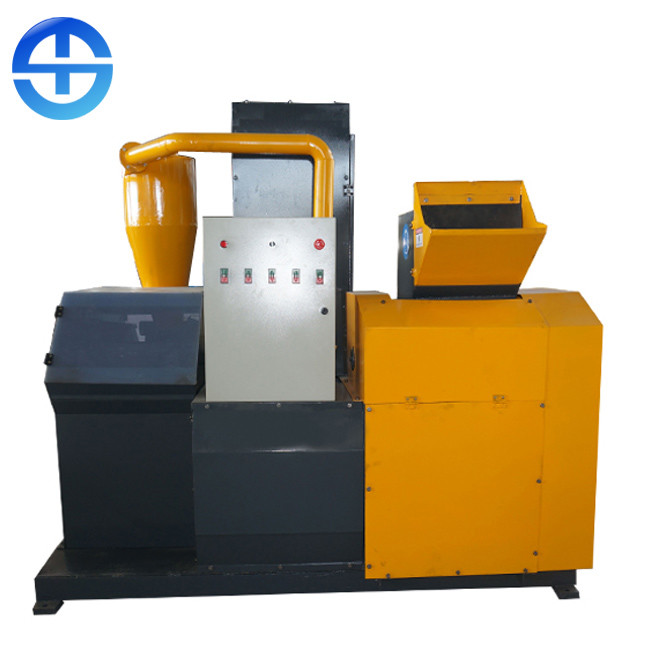

Industry Copper Wire Granulator Copper Wire Shredder Machines 23.12 Kw 0

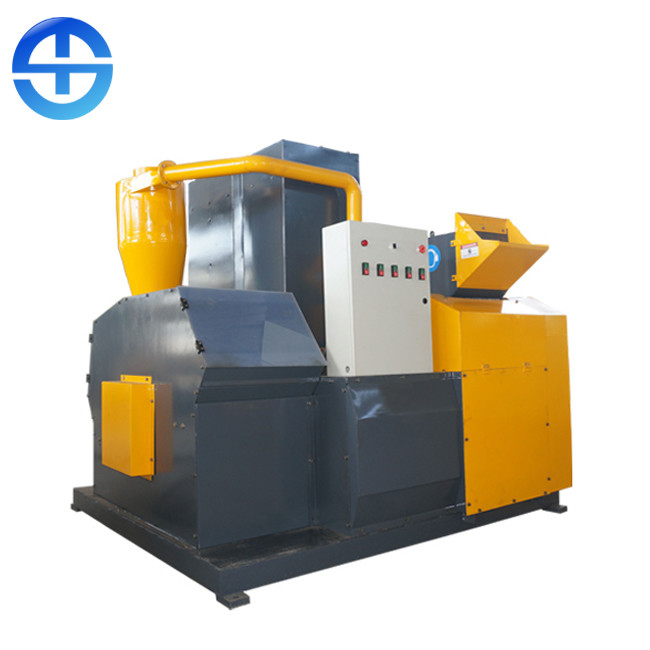

Industry Copper Wire Granulator Copper Wire Shredder Machines 23.12 Kw 1
