Industry Copper Wire Recycling Machine Copper Shredding Machine ISO Certification

Minimum Order Quantity : 1 set Price : negotiable
Packaging Details : One 40 feet container Delivery Time : 15 work days
Payment Terms : L/C, T/T, Western Union Supply Ability : 20 sets per month
Place of Origin: CHINA Brand Name: TMS
Certification: CO, ISO Model Number: TMS-800

Detail Information

Name: Scrap Copper Wire Recycling Machine Function: Crush And Separate Copper From Plastic
Material Processed: Scrap Copper Wire /cable Type: Dry
Capacity: 500-600 Kg/h Wire Diameter: 0.1-30 Mm
Voltage: 380 V Or Customized Weight: 8 Ton
High Light:

scrap metal granulators

,

copper cable granulator machine

Product Description

Full electrical control scrap copper wire cable recycling machine



Products details

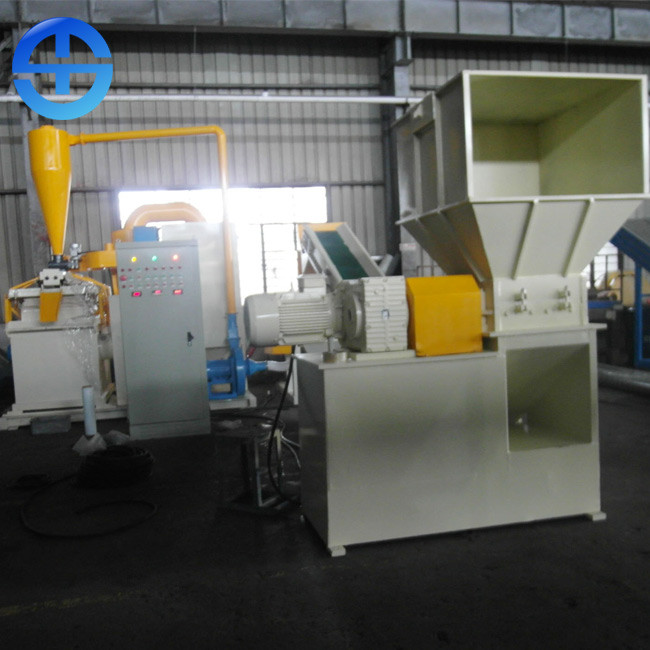

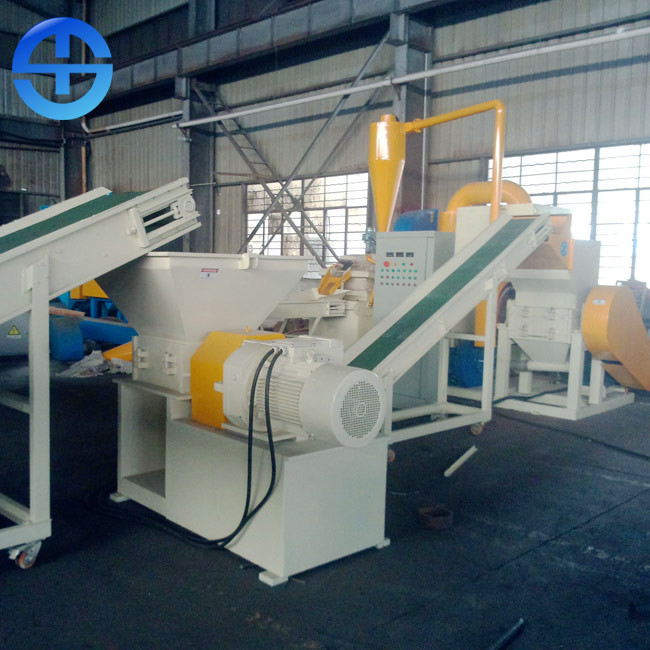

copper wire recycling machine is a complete production line which is used for handling auto wires, communication cables and kinds of miscellaneous wires and cables. It has a compact structure, stable and reliable performance. Scrap copper cables are shredded by the two crushers, then plastic pieces and copper granules are separated by vibration and airflow. They come out from different outlets, dust is collected by dust collector(can recycle the copper cables with diameter less than 25mm, better for single conductor diameter of 0.2-0.5mm).

Feature

1. The whole system is controlled by the Electric cabinet.

2. Converter control bottom air & vibrator.

3. Stable operation, easy operation.

4. Minimum copper recovery rate can reach 99%.

Working process

The material is feed into the first shredder, which shred the cables (φ≤25mm) into length 10—20mm pieces, then convey these pieces into second crusher, the second shredder( 10 pcs rotating blades, 4 pcs fixed blades) will shred the cables into length 3-5mm plastic pieces or coppers pieces. Finally, under the force of push of airflow and vibrating of screen, the pieces will move forward one the screen,the separate copper from plastic and send them out through air duct of vibrating suction.

Motor power

Item Voltage Power(kw)
Air Separator Bottom Blower 380V/50HZ 4
Vibrator 380V/50HZ 1.5
Suction Blower 380V/50HZ 4
High pressure fan 380V/50HZ 5.5
Airlock 380V/50HZ 0.25
Conveyor A 380V/50HZ 2.2
First crusher 380V/50HZ 22
Conveyor B 380V/50HZ 2.2
Second Shredder 380V/50HZ 37
Small vibrating table 380V/50HZ 0.18



Industry Copper Wire Recycling Machine Copper Shredding Machine  ISO Certification 0
