Power 3kw And 4kw Radiator Recycling Machine Copper And Aluminum Stripping Machine

Minimum Order Quantity : 1 Set Price : US $4,000-6,500 / Set
Packaging Details : Radiator copper and aluminum stripping machine is packed by ply wooden case which meet export standard. Delivery Time : 7 work days
Payment Terms : L/C, T/T, Western Union Supply Ability : 50 Set/Sets per Month Radiator copper and aluminum stripping machine
Place of Origin: Henan, China (Mainland) Brand Name: TMS
Certification: CE, CO, ISO Model Number: TMS-016

Detail Information

Condition: New Application: Radiators
Power: 3 Kw+4 Kw Capacity: 2000-3000 Kg/day
Dimension: 1800*800*1200 Mm Weight: 600 Kg
Function: Separator Copper And Aluminum Voltage: 380v/50HZ(as Customers' Request )
High Light:

scrap metal granulators

,

copper cable granulator machine

Product Description

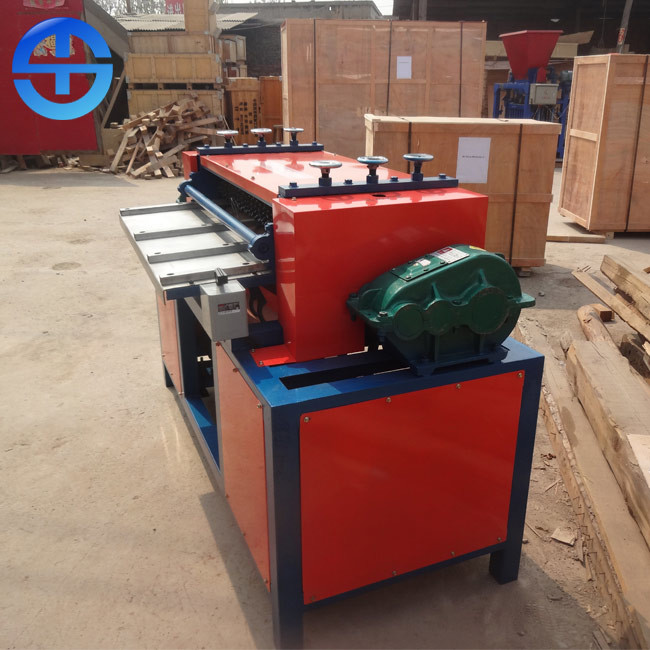

Power 3kw And 4kw Radiator Recycling Machine Copper And Aluminum Stripping Machine 0



Product Description

Radiator copper and aluminum stripping machine is designed to strip and separate the scrap radiator for recycling copper and aluminum with high efficiency and stable performance. There are three kinds of blade center distance: 19mm, 21mm and 25mm; that is to say it can strip the radiator whose copper tube center distance is 19mm, 21mm or 25mm

Power 3kw And 4kw Radiator Recycling Machine Copper And Aluminum Stripping Machine 1

Before processed, the radiators shall be cut with a band saw into pieces of certain width. It can separate one layer or two layers radiators. When radiators are more than two layers, it will be cut into one layer or two layers by band saw machine.

Technical Parameters
Model Dimension Capacity Power Weight Motor
TMS-016 1800*800*1200 mm 2000-3000 kg/day 3+4 kw 600kg customised
Packaging & Shipping

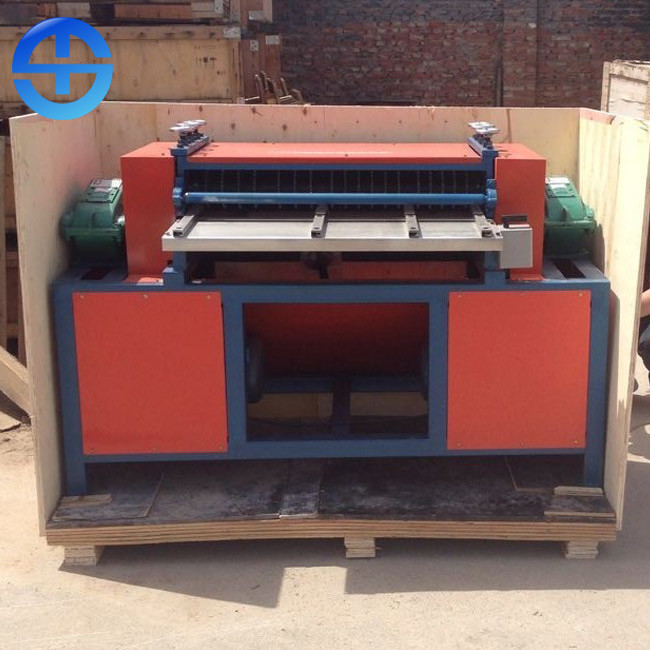

Radiator copper and aluminum stripping machine is packed by export standard ply wooden case. It is solidly and can not broken during transportation.

Power 3kw And 4kw Radiator Recycling Machine Copper And Aluminum Stripping Machine 3

Our Services

1. We provide good after-sale service. If spare part is broken not for man-made reason, we will send new one to you free.

2. We also can send our engineer to your place to guide you and your worker to operate this machine.

3. Extra blades will be sent to you free when deliver this machine.
