Professional Aluminum Shredder Equipment Scrap Metal Crusher 22 Kw 4500kg

Minimum Order Quantity : 1 set Price : negotiable
Packaging Details : Ply wooden case or loaded into a full container Delivery Time : 10 work days
Payment Terms : L/C, T/T, Western Union Supply Ability : 50 set per month
Place of Origin: Henan, China (Mainland) Brand Name: TMS
Certification: CE Model Number: TMS-500

Detail Information

Name: Scrap Metal Shred Machine Application: Copper, Aluminum, Woood Etc
Power: 22kw*2 Capacity: 2-3 Ton/h
Weight: 4500kg Speed: 40 R/min
Size: 3100*1500*1800mm Type: Double Shaft
Function: Shredding
High Light:

scrap metal shredder machine

,

two shaft shredder

Product Description

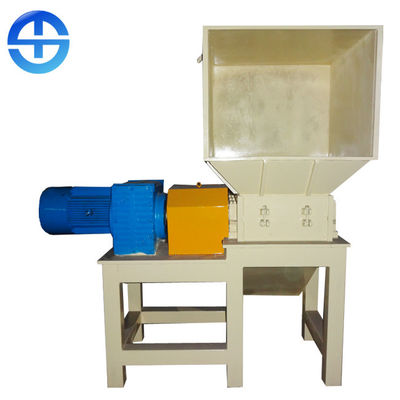

Professional Aluminum Shredder Equipment Scrap Metal Crusher 22 Kw 4500kg

Details of scrap metal crusher

Double shaft crusher can meet the requirements of waste recycling in various industries, and is suitable for shredding thicker and refractory materials, such as electronic waste, plastics, metals, wood, waste rubber, packaging barrels, pallets, etc. There are many kinds of recyclable materials. The torn materials can be directly recycled or further refined according to demand. It is suitable for industrial waste recycling, medical treatment recycling, electronic manufacturing, pallet manufacturing, wood processing, domestic waste recycling, plastic recycling, tire recycling, papermaking and other industries. This series of double shaft crusher has the characteristics of low speed, high torque and low noise. It adopts PLC control system and can be automatically controlled. It has the functions of starting, stopping, reversing and overloading automatic reversing control.

Technical parameters of scrap metal crusher

Model Power (kw) Capacity (T/H) Speed (r/min) Dimension (mm) Weight (kg)
TMS-500 22 1.5-2 20 1900*1100*2500 3500


The main working parts of the shredder are a pair of relatively rotating rollers, which are equipped with spirally arranged gear teeth. When the material enters the machine, it is torn and sheared by the teeth of the high hardness wear-resistant material which rotates staggeredly and is splitted, broken and crushed into smaller than the set size, and then forcibly excluded from the machine. Roller driven by motor through reducer has super-large torque, encounter difficult debris, will automatically reverse under the action of PLC automatic control system, and many times positive and negative, until the material is broken and discharged.

The items that can be torn up by shredder are:

Wood processing industry: wooden pallets, branches, seats, wood, roots; Wisconsin environmental protection

Plastic products industry: mixed plastics, plastic buckets, rubber blocks, nozzle materials, garbage cans;

Waste tire industry: automobile tires, tires with rough steel wire removed, rubber;

Metal recovery industry: scrap iron and steel, lead, aluminum alloy, copper scrap;

Electronic waste industry: electronic appliances, plugs, transformers, air conditioners, induction cookers, television sets

Advantage of scrap metal crusher

1. This machine can shred large block, basket, pipe, board, wood, tire and large roll film which are difficult to crush by single shredder.

2. Extra thick sheet metal precision processing composite structure frame, large angle hexagonal column strong rotation axis, large caliber and strong input hopper, so you can safely put into large raw materials;

3. In the thickness, shape, arrangement and other aspects of the design and processing of a unique rotary knife, strong shearing force, sharp edge, can be highly efficient crushing;

4. PLC control, when the handling material is too large, it has the function of positive and negative operation and shutdown to protect the body, and the safety measures are absolutely safe.

5. Low-speed operation, low noise, less dust;

6. The blade is made of special alloy steel and is durable.



Professional Aluminum Shredder Equipment Scrap Metal Crusher 22 Kw 4500kg 0

Professional Aluminum Shredder Equipment Scrap Metal Crusher 22 Kw 4500kg 1
