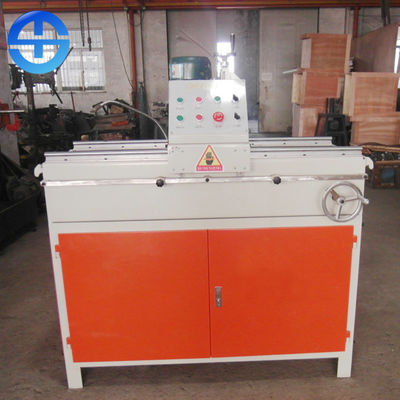

2.2 Kw 380 V Industrial Knife Sharpener Machines For Copper Wire Separator

2.2 Kw 380 V Industrial Knife Sharpener Machines For Copper Wire Separator

    • 2.2 Kw 380 V Industrial Knife Sharpener Machines For Copper Wire Separator
    • 2.2 Kw 380 V Industrial Knife Sharpener Machines For Copper Wire Separator
  • 2.2 Kw 380 V Industrial Knife Sharpener Machines For Copper Wire Separator

    Product Details:

    Place of Origin: China
    Brand Name: TMS
    Certification: CO, ISO
    Model Number: TMS-017

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: negotiable
    Packaging Details: Standard exported ply wooden case
    Delivery Time: 15 work days
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 30 sets per month
    Contact Now
    Detailed Product Description
    Name: Industrial Knife Sharpener Function: Sharpen Kinds Of Blade
    Power: 2.2 Kw Working Angle: 0-180 Degree
    Moving Speed: 2.82 M Per Minute Size: 1500*950*1200 Mm
    Weight: 260 Kg Voltage: 380 V Or Customized

    Description

    This blade sharpener is designed for sharpenning blades in copper wire granulator or plastic crusher etc which edge blunt. It is one of accessory products which can enhance working efficiency of crusher. Meanwhile it also can sharpen woodworking machine tool or other straight blade.

    Main function configuration

    ● dovetail guide rail

    ● centralized refueling device

    ● PLC programming control system

    ● dust cover device

    ● imported electrical components (optional device)

    ● scraper clamp (optional device)

    Features

    1. This machine is composed of main body, worktable, linear, slide block, gear motor, cooling system and electric control system, Compact structure and reasonable appearance between components. Automatic uniform speed and smooth running of grinding head and blade.

    2. This machine is small in size, light in weight, fast in effect, stable in operation and easy to adjust.

    3. This machine is suitbale for all kinds of straight-edged tool processing.

    4. The grinding head adopts the design of automatic feed to improve the degree of automation. It effectively saves the necessary manpower and time for manual feeding and improves the labor level of the operator.

    Operation

    1. Put the knife on the cutting table, adjust the protrusion of the knife to about 0.5-1.0cm, and the protrusion of both ends of the knife should be the same, which can be fine adjusted with jackscrew. Turn on the magnetization switch of the electromagnetic device button to make the knife adsorb on the knife table. Adjust the position of the angle between the grinding wheel and the blade. If the blade contacts the grinding wheel, turn the feed hand wheel to separate it.

    2. Turn on the power, turn on the power switch, and the machine will enter the normal working state.

    4. Rotate the feed hand wheel to make the blade slowly and evenly move inward until it contacts with the grinding wheel. Adjust the contact tightness between the blade and the grinding wheel to make the grinding wheel and the blade work well.

    Debugging

    First of all, when debugging the sharpener, we need to adjust the angle of the sharpener. At this time, we can use the rotation of the adjusting wire and the adjustment of the slide table to achieve; secondly, we need to adjust the cutting amount, shake the hand wheel, so that the slide table seat can move forward and backward to complete; there is also the extension of the sharpener, at this time, we can use the jackscrew to adjust

    Maintain

    The blade grinder is a high-precision mechanical equipment. Regular maintenance will extend its service life.

    1. The rail plate shall be lubricated frequently.

    2. Clean the machine after each grinding.

    3. The grinding wheel shall be replaced in time in case of cracks and notches.

    Technical parameters

    Model TMS-017
    Power 2.2 kw
    Angle 1-20 mm
    Working angle 0-180 degree
    Moving speed 2.82 m per minute
    Size 1500*950*1200 mm
    Weight 260 kg
    Voltage 380V, 220V or Customized

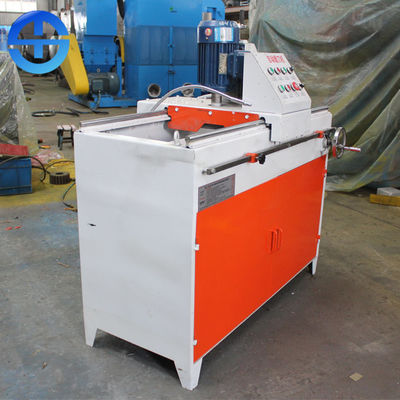

    2.2 Kw 380 V Industrial Knife Sharpener Machines For Copper Wire Separator
