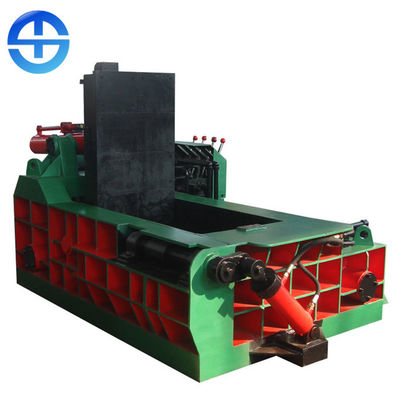

18.5 Kw Iron Scrap Pressing Machine Scrap Metal Chip Compressor Machine

18.5 Kw Iron Scrap Pressing Machine Scrap Metal Chip Compressor Machine

    • 18.5 Kw Iron Scrap Pressing Machine Scrap Metal Chip Compressor Machine
    • 18.5 Kw Iron Scrap Pressing Machine Scrap Metal Chip Compressor Machine
  • 18.5 Kw Iron Scrap Pressing Machine Scrap Metal Chip Compressor Machine

    Product Details:

    Place of Origin: Henan, China (Mainland)
    Brand Name: TMS
    Certification: CE, ISO
    Model Number: TMS-1350

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: negotiable
    Packaging Details: Full container 20'GP or 40'GP
    Delivery Time: 20 work days
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 20 sets per month
    Contact Now
    Detailed Product Description
    Name: Metal Compressor Machine Application: Copper, Aluminum, Steel
    Power: 18.5 Kw Operation: Full Automatic PLC
    Bale Size: 300*300mm Nominal Pressure: 1350 KN
    Capacity: 15-25 Ton/day Function: Make Scrap Into Bale

    Hydraulic pressure scrap metal chip compressor machine for sale


    Product Details

    Metal compressor machine can press all kinds of metal raw materials, such as metal edges and corners, steel shavings, scrap steel, scrap iron, scrap copper, scrap aluminum, aluminum shavings, disintegrated automobile shells, scrap oil drums, etc. into qualified furnace materials of various shapes such as cuboids and cylinders. It is used to extrude various metal scraps (cuttings, shavings, scrap steel, scrap aluminum, scrap copper, scrap iron, waste stainless steel, etc.) with a thickness of less than 6 mm into various shapes of qualified materials such as cubes, cylinders and octagons. Applicable to scrap processing and distribution centers (bases), scrapped car dismantling and remanufacturing companies, steel and non-ferrous metals industries.It is convenient for storage, transportation and recycling.

    Working principle

    The basic principle of metal packing machine is to use the nature that metal materials can produce plastic deformation under the action of external force, to give metal materials enough external force that can gather and produce permanent deformation, so as to form a compact beam block. Therefore, the metal which can not produce plastic deformation or has very small plastic deformation cannot be packaged directly. For example, high carbon steel, tool steel, steel wire rope and cast iron can not be packed directly

    Product advantage

    1. This machine adopts hydraulic drive, reasonable design, compact structure and reliable sealing performance

    2. The machine is easy to use, move and install, simple to operate, easy to maintain, reliable to seal, and no sole screw is used in installation.

    3. Users can customize bale specifications and sizes according to their needs to maximize cooperation with transportation or storage.

    4. It is a good equipment to improve labor efficiency, reduce labor intensity, save manpower and reduce transportation costs.

    5. Manual or PLC automatic control mode is adopted.

    Specification

    Model Nominal pressure Material box size Bale size Daily Output Power Pump
    1250 1250KN 1200*700*600mm 300*300mm 10-20T 15kw YCY-63
    1350 1350KN 1400*800*700mm 300*300mm 15-25T 18.5kw YCY-80
    1600 1600KN 1600*1000*800mm 400*400mm 20-35T 22kw YCY-160
    2000 2000KN 2000*1400*900mm 450*450mm 30-45T 22+15kw YCY-160+63
    2500A 2500KN 2200*1850*1000mm 500*500mm 40-55T 22kw*2 YCY160*2
    2500B 2500KN 2500*2000*1000mm 500*500mm 55-65T 30kw*2 YCY160*2
    3150A 3150KN 2500*2000*1000mm 600*600mm 80-95T 45kw*2 YCY-250*2
    3150B 3150KN 3000*2500*1200mm 600*600mm 100-115T 45w*2 YCY-250*2
    4000 4000KN 3500*3000*1400mm 700*700mm 120-140T 75kw*2

    YCY-350*2



    18.5 Kw Iron Scrap Pressing Machine Scrap Metal Chip Compressor Machine

    18.5 Kw Iron Scrap Pressing Machine Scrap Metal Chip Compressor Machine
