PLC Scrap Metal Baler Aluminium Scrap Baling Press Machine 18.5 Kw Bale Size 300×300 Mm

PLC Scrap Metal Baler Aluminium Scrap Baling Press Machine 18.5 Kw Bale Size 300×300 Mm

    • PLC Scrap Metal Baler Aluminium Scrap Baling Press Machine 18.5 Kw Bale Size 300×300 Mm
    • PLC Scrap Metal Baler Aluminium Scrap Baling Press Machine 18.5 Kw Bale Size 300×300 Mm
    • PLC Scrap Metal Baler Aluminium Scrap Baling Press Machine 18.5 Kw Bale Size 300×300 Mm
  • PLC Scrap Metal Baler Aluminium Scrap Baling Press Machine 18.5 Kw Bale Size 300×300 Mm

    Product Details:

    Place of Origin: Henan, China (Mainland)
    Brand Name: TMS
    Certification: CE, ISO
    Model Number: TMS-1350

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: negotiable
    Packaging Details: Full container 20'GP or 40'GP
    Delivery Time: 20 work days
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 20 Set/Sets per Month aluminum cans press machine
    Contact Now
    Detailed Product Description
    Name: Aluminum Cans Press Machine Application: Copper, Aluminum, Steel
    Power: 18.5 Kw Operation: Full Automatic PLC
    Bale Size: 300*300mm Nominal Pressure: 1350 KN
    Capacity: 15-25 Ton/day Function: Press Scrap Into Bale

    Product Introduction

    Aluminum cans press machine is used for cold pressing various scrap metals into various shape, such as cuboid type, cylinder type and octangle type for convenient storge, transportation and putting into furnace.

    Aluminum cans press machine is suitable for processing various scrap metals within 10mm in thickness, such as scrap steel, aluminum and copper turnings, oil tank, steel windows, bicyle etc.

    Working process

    The raw material is placed in the material box of the machine, and the hydraulic cylinder works to press, and the packing material is compressed into various kinds of metal lumps.

    Overall structure

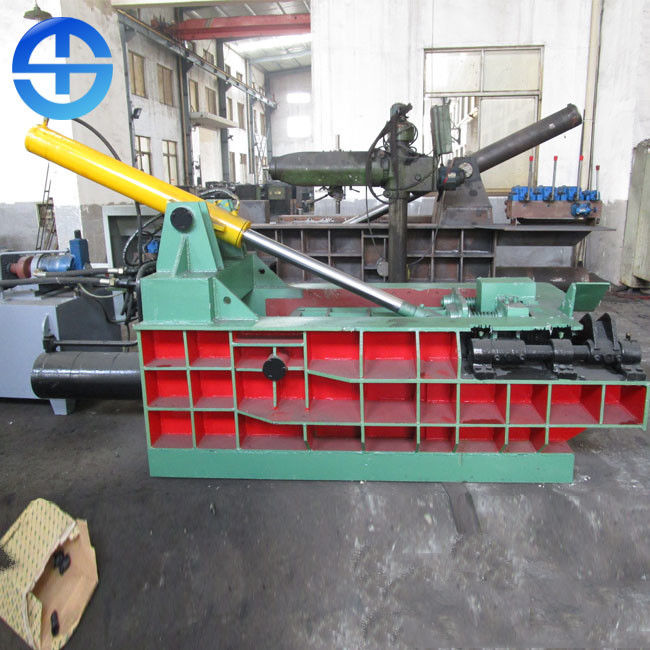

    This machine is composed of frame, hydraulic system and electric system.

    1. Main machine is composed of frame, door cover and cover cylinder, main cylinder and main pressure head, side cylinder and side pressure head, bale turning cylinder and bale turning machine etc.

    1) Frame is composed of base, right and left wall plates, cover plate, main cylinder bracket, side cylinder frame etc. Compressed bin is composed of base, right and left wall plates, door cover, main pressure head, side pressure head and panel turnover etc., each part (except panel turnover) is installed with abrasion resistant lining board through carburizing and quenching.

    2) Door cover and cover cylinder. Door cover should be hinge jointed with spindle sleeve on right and left wall plates, cover cylinder should also be hinge jointed with beam support by pin, slipper of door cover (tapered end should be installed at front end) should be connected with piston rod head of cover cylinder, under movement of cover cylinder, close and open of door cover are finished, at this time, it takes effect of tight locking and loose locking.

    3) Main cylinder and main pressure head. Main cylinder should be installed at lower side part of cover cylinder support, main pressure head should be connected with piston rod of main cylinder with screw, under the advance and retreat effect of main cylinder, impaction and return action of bale block are finished.

    4) Side cylinder and side pressure head. Side cylinder should be installed at lower side part of cover cylinder support, side pressure head should be connected with piston rod of side cylinder with screw, under the advance and retreat effect of side cylinder, precompression and return action of bale block are finished.

    5) Bale turning cylinder and bale turning mechanism. Bale turning cylinder and bale turning mechanism should be installed in opposite to the main cylinder, turnover and reset action of bale block are finished by advance and retreat of bale turning cylinder.

    6) All main cylinder, side cylinder, cover cylinder and bale turning cylinder are of single piston rod double acting cylinder, there is a piston inside cylinder which is installed with sealing component, it makes the cylinder body form front and rear oil chambers. When high-pressure oil acts on front chamber (rear chamber), piston will be pushed and made advance movement (return movement). Cylinder port is designed with a guide sleeve that is used for supporting guides and sealing of piston rod.

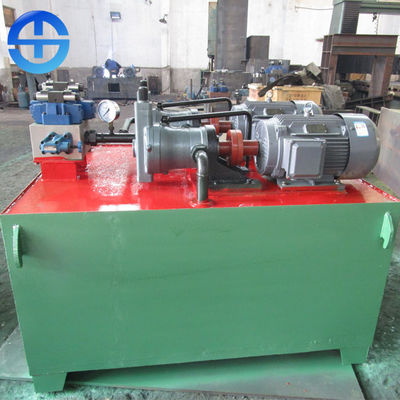

    2. Hydraulic system is composed of motor pump station, valve station, oil tank and pipeline etc.

    3. Electric system is mainly composed of motor start circuit etc.

    Product feature

    1. Driven by hydraulic pressure. It works smoothly and safely.

    2. Manual or PLC automatic control mode is adopted.

    3. The discharging forms are: rollover bale, roll bale, forward bale or no bale.

    4. Installation does not require sole screw, where there is no power supply, diesel engine can be used as power.

    5. Product specifications and types: Metal balers have 63-600 tons, 10 varieties and more than 20 specifications, which can meet the different needs of customers at different levels.

    Specification
    Model Nominal pressure Material box size Bale size Daily Output Power Pump
    1250 1250KN 1200*700*600mm 300*300mm 10-20T 15kw YCY-63
    1350 1350KN 1400*800*700mm 300*300mm 15-25T 18.5kw YCY-80
    1600 1600KN 1600*1000*800mm 400*400mm 20-35T 22kw YCY-160
    2000 2000KN 2000*1400*900mm 450*450mm 30-45T 22+15kw YCY-160+63
    2500A 2500KN 2200*1850*1000mm 500*500mm 40-55T 22kw*2 YCY160*2
    2500B 2500KN 2500*2000*1000mm 500*500mm 55-65T 30kw*2 YCY160*2
    3150A 3150KN 2500*2000*1000mm 600*600mm 80-95T 45kw*2 YCY-250*2
    3150B 3150KN 3000*2500*1200mm 600*600mm 100-115T 45w*2 YCY-250*2
    4000 4000KN 3500*3000*1400mm 700*700mm 120-140T 75kw*2 YCY-350*2
