Durable Radiator Recycling Machine Scrap Copper Radiator Separator Machine
Product Details:
| Place of Origin: | Henan, China (Mainland) |
| Brand Name: | TMS |
| Certification: | CO, ISO |
| Model Number: | TMS-17 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | negotiable |
| Packaging Details: | Packed by ply wooden case which meet export standard or Full container for large quantity |
| Delivery Time: | 10 work days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 50 sets per month |
|
Detail Information |
|||
| Name: | Radiator Recycling Machine | Function: | Separator Copper And Aluminum |
|---|---|---|---|
| Material Processed: | AC Radiators | Power: | 3 Kw+4 Kw |
| Capacity: | 2000-3000 Kg/day | Dimension: | 1800*800*1200 Mm |
| Weight: | 650 Kg | Warranty: | 1 Year |
| High Light: | aluminum recycling machine,plastic separator machine |
||
Product Description
Durable Radiator Recycling Machine Scrap Copper Radiator Separator Machine

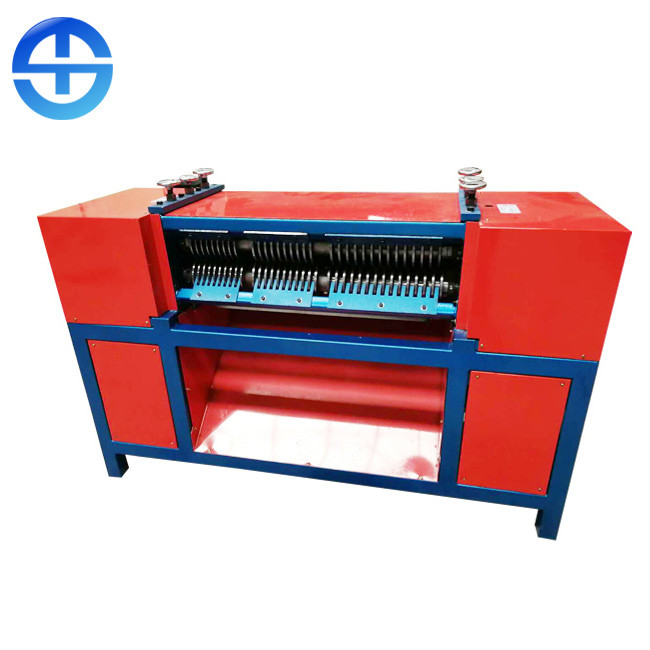

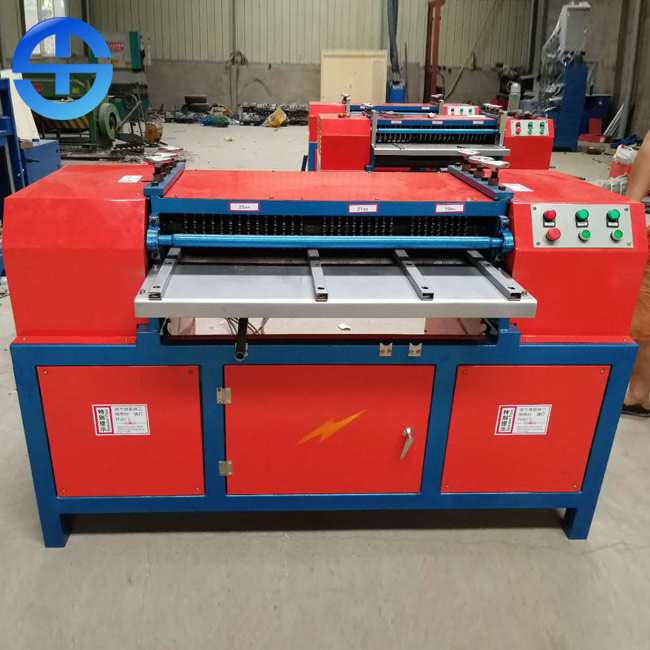

Description of radiator recycling machine
The radiator recycling machine can deal with single-layer and double-layer copper aluminum radiators with 19mm, 21mm and 25mm copper tube spacing. It can completely peel off the copper tube inside the scrap copper aluminum air conditioner radiator, and the aluminum foil can also remain massive. The production of stripping single-layer copper tube and double-layer copper tube can be achieved by simply setting the same machine. The separation speed of copper tube and aluminum foil is fast, the efficiency is high, and the operation is simple. In terms of safety, the light eye control is set at the feeding port, and the hand extends over the set position when working, The machine stops running.
Before processed, the radiators shall be cut with a band saw into pieces of certain width. It can separate one layer or two layers radiators. When radiators are more than two layers, it will be cut into one layer or two layers by band saw machine.
Technical specification of radiator recycling machine
| Model | TMS-017 |
| Size | 1800*800*1200mm |
| Productivity | 2000-3000kg/day |
| Power | 3kw+4kw |
| Weight | 650kg |
| Voltage | 380V/50HZ or Customized |
Applicable materials
Waste air-conditioning radiator, defective radiator of air-conditioning radiator manufacturer, separation of copper tube and aluminum foil of waste automobile radiator tank, dismantling of waste radiator. The same equipment can handle single-layer and double-layer copper aluminum radiators with 19mm, 21mm and 25mm copper tube spacing.
Features of radiator recycling machine
1. PLC control is adopted to make the system equipment work coordinately and feed evenly.
2. The structure is simple and the layout is reasonable; Strong processing capacity and stable operation; Durable, safe and reliable.
3. It is designed with two shafts and opposite rollers. It has the advantages of low noise, large torque and large crushing chamber.
4. The cutter is made of tool steel and processed by special technology. It has a wide range of crushing capacity, such as cracking, tearing and extrusion. The copper aluminum separator for automobile radiator has strong crushing strength. It can easily crush materials of different specifications.
5. The magnetic separation equipment adopts strong magnetic drum separator and radiator copper aluminum separator, which makes the separation rate high.
Packaging & Shipping of radiator recycling machine
Radiator recycling machine is packed by export standard ply wooden case. It is solidly and can not broken during transportation.
1. We provide good after-sale service. If spare part is broken not for man-made reason, we will send new one to you free.
2. We also can send our engineer to your place to guide you and your worker to operate this machine.
3. Extra blades will be sent to you free when deliver this machine.
