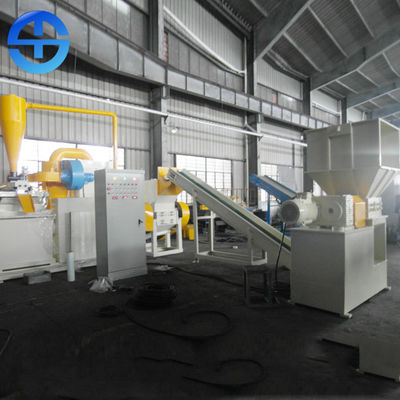

380 V Copper Cable Shredder Cable Recycling Equipment Reliable Performance

380 V Copper Cable Shredder Cable Recycling Equipment Reliable Performance

    • 380 V Copper Cable Shredder Cable Recycling Equipment Reliable Performance
  • 380 V Copper Cable Shredder Cable Recycling Equipment Reliable Performance

    Product Details:

    Place of Origin: CHINA
    Brand Name: TMS
    Certification: CO, ISO
    Model Number: TMS-800

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: negotiable
    Packaging Details: One 40 feet container
    Delivery Time: 15 work days
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 20 sets per month
    Contact Now
    Detailed Product Description
    Name: Copper Cable Granulator Function: Crush And Separate Copper From Plastic
    Material Processed: Scrap Copper Wire /cable Type: Dry
    Capacity: 500-600 Kg/h Wire Diameter: 0.1-30 Mm
    Voltage: 380 V Or Customized Weight: 8 Ton
    High Light:

    scrap metal granulators

    ,

    copper cable granulator machine

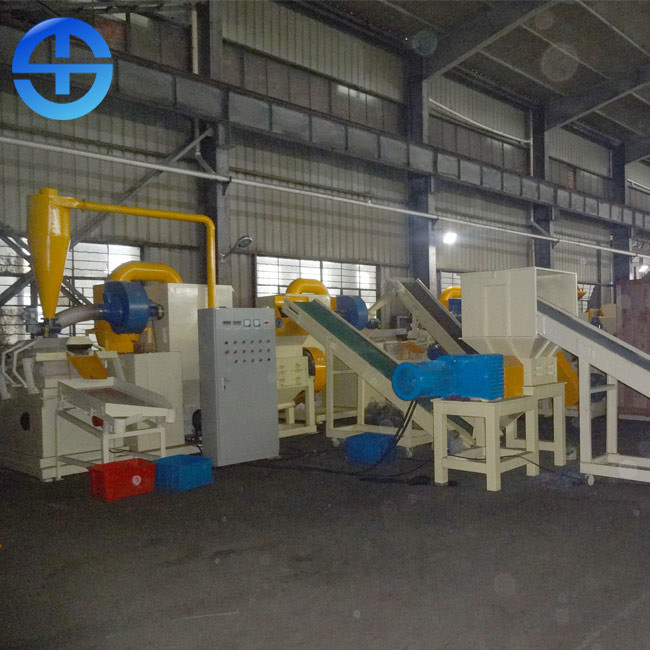

    TMS-800 production line for scrap copper wire cable granulator



    Brief introduction

    copper cable wire granulator is a complete production line which is used for handling auto wires, communication cables and kinds of miscellaneous wires and cables. It has a compact structure, stable and reliable performance. Scrap copper cables are shredded by the two crushers, then plastic pieces and copper granules are separated by vibration and airflow. They come out from different outlets, dust is collected by dust collector(can recycle the copper cables with diameter less than 25mm, better for single conductor diameter of 0.2-0.5mm).

    Machine workflow

    The material is feed into the first shredder, which shred the cables (φ≤25mm) into length 10—20mm pieces, then convey these pieces into second crusher, the second shredder( 10 pcs rotating blades, 4 pcs fixed blades) will shred the cables into length 3-5mm plastic pieces or coppers pieces. Finally, under the force of push of airflow and vibrating of screen, the pieces will move forward one the screen,the separate copper from plastic and send them out through air duct of vibrating suction.

    Power list table

    Item Voltage Power(kw)
    Air Separator Bottom Blower 380V/50HZ 4
    Vibrator 380V/50HZ 1.5
    Suction Blower 380V/50HZ 4
    High pressure fan 380V/50HZ 5.5
    Airlock 380V/50HZ 0.25
    Conveyor A 380V/50HZ 2.2
    First crusher 380V/50HZ 22
    Conveyor B 380V/50HZ 2.2
    Second Shredder 380V/50HZ 37
    Small vibrating table 380V/50HZ 0.18



    380 V Copper Cable Shredder Cable Recycling Equipment Reliable Performance 0
