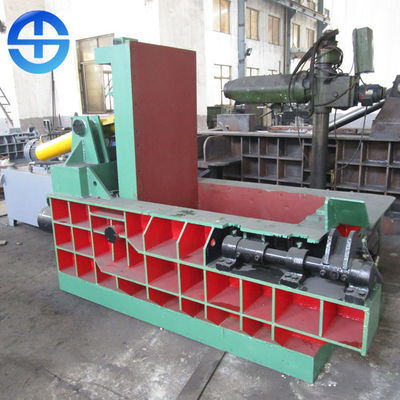

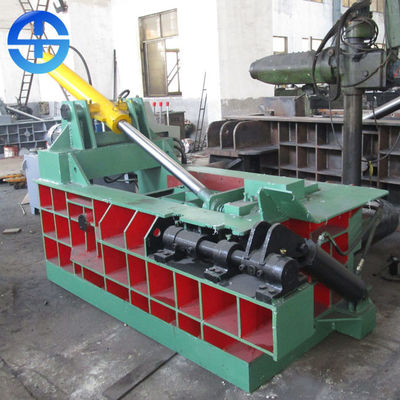

Full Automatic Scrap Metal Recycling Machine / Scrap Metal Press Machine
Product Details:
| Place of Origin: | Henan, China (Mainland) |
| Brand Name: | TMS |
| Certification: | CE, ISO |
| Model Number: | TMS-1250 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | negotiable |
| Packaging Details: | Full container 20'GP or 40'GP |
| Delivery Time: | 20 work days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 20 Set/Sets per Month aluminum cans press machine |
|
Detail Information |
|||
| Name: | Scrap Metal Press Machine | Application: | Copper, Aluminum, Steel |
|---|---|---|---|
| Power: | 15 Kw | Operation: | Full Automatic PLC |
| Bale Size: | 300*300mm | Nominal Pressure: | 1250 KN |
| Capacity: | 10-20 Ton/day | Function: | Press Scrap Into Bale |
| High Light: | copper wire recycling machine,scrap metal recycling equipment |
||
Product Description
Full Automatic Scrap Metal Recycling Machine / Scrap Metal Press Machine
Scrap metal press machine is widely used to squeeze various metal wastes (scrap material, shaving, scrap steel, scrap aluminum, scrap copper, waste stainless steel, scrap car, etc.) into qualified furnace materials of rectangular, octagonal and cylinder shapes, which can reduce transportation and smelting costs and improve the furnace feeding speed. The price of hydraulic packer fluctuates with the fluctuation of raw material price. This series of hydraulic packers are mainly used in steel plant, recycling industry, as well as non-ferrous and ferrous metal smelting industry.
| Model | Nominal pressure | Material box size | Bale size | Daily Output | Power | Pump |
| 1250 | 1250KN | 1200*700*600mm | 300*300mm | 10-20T | 15kw | YCY-63 |
| 1350 | 1350KN | 1400*800*700mm | 300*300mm | 15-25T | 18.5kw | YCY-80 |
| 1600 | 1600KN | 1600*1000*800mm | 400*400mm | 20-35T | 22kw | YCY-160 |
| 2000 | 2000KN | 2000*1400*900mm | 450*450mm | 30-45T | 22+15kw | YCY-160+63 |
| 2500A | 2500KN | 2200*1850*1000mm | 500*500mm | 40-55T | 22kw*2 | YCY160*2 |
| 2500B | 2500KN | 2500*2000*1000mm | 500*500mm | 55-65T | 30kw*2 | YCY160*2 |
| 3150A | 3150KN | 2500*2000*1000mm | 600*600mm | 80-95T | 45kw*2 | YCY-250*2 |
| 3150B | 3150KN | 3000*2500*1200mm | 600*600mm | 100-115T | 45w*2 | YCY-250*2 |
| 4000 | 4000KN | 3500*3000*1400mm | 700*700mm | 120-140T | 75kw*2 | YCY-350*2 |
Working principle of scrap metal press machine
The basic principle of scrap metal press machine to use the properties of plastic deformation of metal materials under the action of external force, and give the metal materials enough external force to gather and produce deformation, thus forming a compact bundle. Therefore, the metal with little plastic deformation or plastic deformation cannot be packed directly. For example, high carbon steel, tool steel, steel wire rope and cast iron, etc., it is not allowed to pack directly by machine.
Composition and structure of scrap metal press machine
The packer is generally divided into two parts - the main engine part and the power system. The main engine part - the part of the machine for packing work. According to its function, it is mainly composed of two hydraulic machines installed vertically and horizontally with some auxiliary mechanisms. If it is divided into components, it is: (1) body (2) side cylinder system (3) main cylinder system (4) cover system (5) side door system (6) locking mechanism.
Features of scrap metal press machine
1. All models adopt hydraulic drive, and can be operated manually or controlled automatically by PLC.
2. The way of package delivery includes turn over out, side pushing out, forward-out and manual operation.
3. A variety of models are available: different pressure, material box size, bale size and shape.
4. Where there is no power supply, it can be powered by diesel engine.
