|Place of Origin:||Henan, China (Mainland)|
|Minimum Order Quantity:||1 set|
|Packaging Details:||Standard export ply wooden case.|
|Delivery Time:||15 work days|
|Payment Terms:||L/C, T/T, Western Union|
|Supply Ability:||50 sets per month|

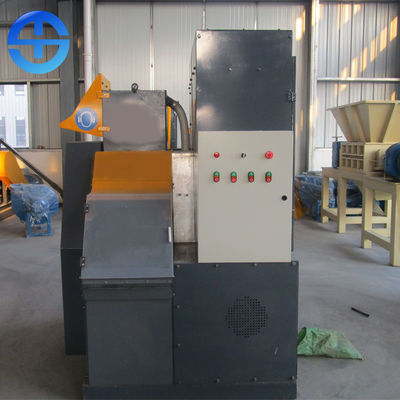

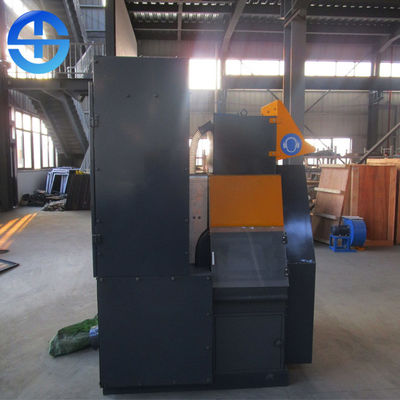

|Name:||Copper Cable Recycling Machine||Type:||Dry Type|
|Power:||11.92kw||Function:||Separate Copper From Plastic|
|Separating Rate:||99.9%||Output:||80-100 Kg/h|
copper cable granulator machine,
copper wire recycling machine
Copper wire granulator is used for recycling scrap copper wires/cables, such as auto wires, communication cables and kinds of miscellaneous wires and cables.
Scrap wires and cables are crushed into plastic and copper granules. Plastic granules and copper granules are separated under the double action of airflow suction and linear excitation of screen vibrator, so that they can make great efforts to move forward in the waveform of screen surface. Copper, plastic and mixture of copper and plastic are sent out from different outlets respectively. Dust is sent to the dust collector through the air duct. (1-20MM waste cable can be machined, and 0.2-0.3mm diameter of single conductor is the best.)
1. Control box control coordinates the operation of each system
2. The air lock regulates the bottom wind.
3. Running stably
4. The recovery rate of copper granules can reach 99%.
|Model||Size (mm)||Capacity||Wire diameter range||Power||Voltage||Weight|
|80-100 kg/h||0.1-20 mm||11.92kw||380/240V||750kg|
Machine flow chart
Machine type and main technical parameters
Motor power: 7.5KW
Knife Quantity: 6
Number of fixed knife: 2
Screen Aperture: Φ3mm / Φ4mm
Spindle speed: 900r/min
Vibration motor: 0.18 KW (2 units)
Vibration frequency: frequency regulation
Screen diameter: 40 mesh / 100 mesh
|Down scution fan||
Fan power: 2.2KW
Filter: Φ280 * 1000
Air volume control: Off Air Control
|Up scution fan||
Fan power: 1.5KW
Rewind mode: cyclone barrel
Rewind bag: 1
Dust bag: 1
|Regulator off the wind||Fan power:0.37KW|
Proper use of equipment
Proper use of copper-meter machines to be selected depending on the material properties of the model can not only improve the crushing efficiency, but also to extend the life of the machine. Using wire cutting blades, blade interchangeability.For our different lines have different blades of the machine requirements.
1: Wool thread, strands
When dealing with wool and silk strands require copper meters machine fixed knife and moving
Sharp knife to make to the broken line is cut blade, so out of the copper-meter clean high purity.
2: Single stocks, single conductor
When dealing with single stocks, single core cable,
For the knife blade is dull, fixed blade. Under the request of the moving blade and fixed cutter spacing between lines just stuck cable for single stock, do not touch the wire core again, at this point, the cable broken made by inertia cable break, can effectively avoid the production of copper clad.
For the first time using the device, please complete the following measures:
1. Before starting the cleaning machine should be expected to check the installation screen is normal, so no-load start.
2. Check the wire line is really well.
3. Turn on the butten.
4. Pull the strat butten than seee the machine wether workde well if not please try to remove the oil butten.
5. After you have finished all the steps, you can start the machine
Activate or deactivate the crusher
1)Start of production of copper meters machine
In order to start at boot time: Suction hair → vibration mill Interval of one minute each action operations. (In the order of the boot sequence from right to left).Wait for the device to start completely start feeding. According to the material circumstances rotary airlock knob to adjust to the ideal state
2)Turn off the copper-meter production line
In order to close the crusher suction → shock hair, every action one minute interval operation. (From left to right in turn shut down).
In case of emergency, you should press the red emergency stop button, if you want to start the device again, the emergency stop button clockwise to reset it.
