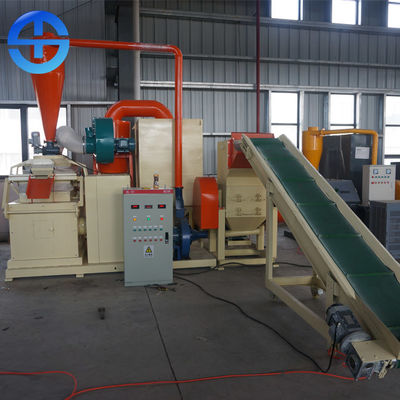

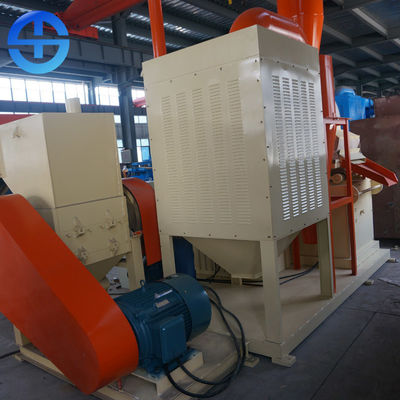

52.36kw Scrap Metal Recycling Machine Copper Wire Granulator Separator 12 Month Warranty

52.36kw Scrap Metal Recycling Machine Copper Wire Granulator Separator 12 Month Warranty

    • 52.36kw Scrap Metal Recycling Machine Copper Wire Granulator Separator 12 Month Warranty
    • 52.36kw Scrap Metal Recycling Machine Copper Wire Granulator Separator 12 Month Warranty
    • 52.36kw Scrap Metal Recycling Machine Copper Wire Granulator Separator 12 Month Warranty
  • 52.36kw Scrap Metal Recycling Machine Copper Wire Granulator Separator 12 Month Warranty

    Product Details:

    Place of Origin: Henan, China (Mainland)
    Brand Name: TMS
    Certification: CO, ISO
    Model Number: TMS-600

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: negotiable
    Packaging Details: 1*20 feet container
    Delivery Time: 15 work days
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 30 sets per month
    Contact Now
    Detailed Product Description
    Name: Scrap Copper Wire Recycling Machine Type: Dry Type
    Power: 52.36kw Usage: Recycling Scrap Wires
    Copper Purity: 99.9% Output: 300-400 Kg/h
    Weight: 3400kg Warranty: 12 Month
    High Light:

    copper cable granulator machine

    ,

    scrap metal recycling equipment

    TMS-600 scrap copper wire granulator machine for recycling field


    Product Summary

    Scrap copper wire recycling machine is mainly used for recycling waste copper wire, waste wire, waste cable and so on. Simply speaking, it is to crush the waste copper wire, wire and cable first, and then separate the crushed copper and plastic to achieve the distribution and utilization after separation. Because the copper granules is as big as the rice grain, it is called "copper rice machine". It can also be seen that it is an environmentally friendly mechanical product.

    Feature

    1. The whole system is controlled by the Electricity Control Panel.

    2. The bottom air flow is controlled by the Airlock.

    3. Minimum copper recovery rate can reach 99%.

    Working principle

    1. Crushing. First crush the cable into granular, copper and plastic particles, after crushing, the size and diameter is generally (2MM-8MM).

    2. Separation. Using the principle of different specific gravity of metal (copper) and non-metal (plastic), two kinds of media with different specific gravity are separated by air flow and vibration.

    Technical parameters
    Size (mm) Capacity Wire diameter range Power Voltage Weight

    4300*1950*2400

    300-400 kg/h 0.1-20 mm 52.36 kw 380/240V 3400kg
    Components parameters
     Components Chopper

    Motor Power:37KW

    Blade Quantity: 10

    Quantity of Fixed Blades: 4

    Screen Size: Φ3mm / Φ4mm

    Spindle speed: 600r/min

    Separator

    Vibration Motor: 1.5 KW

    Vibration: Frequency Regulation

    Screen Diameter: 100mesh

    Bottom Blower Fan

    Fan Power: 4KW

    Filter: Φ325*900*2

    Air Volume Control: Airlock Control

    Upper Suction Fan

    Fan power: 4KW

    Material Collecting Mode: Cyclone Dust Collector

    Collecting Bag: 1

    Dust bag: 9

    Regulating Airlock Fan Power: 0.37KW
