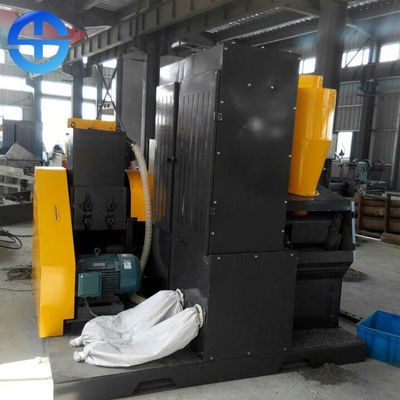

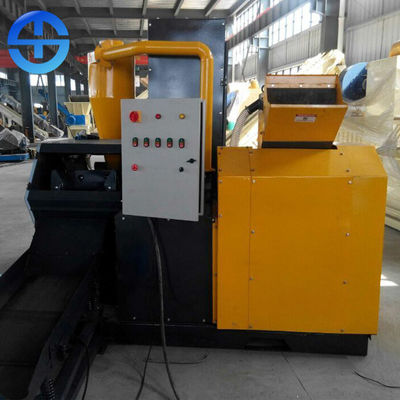

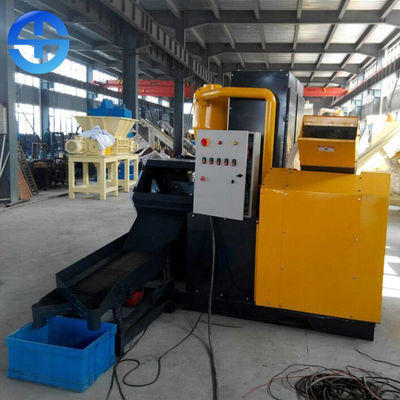

380 V Scrap Metal Processing Equipment Scrap Copper Wire Granulator 99.9% Copper Purity

380 V Scrap Metal Processing Equipment Scrap Copper Wire Granulator 99.9% Copper Purity

    • 380 V Scrap Metal Processing Equipment Scrap Copper Wire Granulator 99.9% Copper Purity
    • 380 V Scrap Metal Processing Equipment Scrap Copper Wire Granulator 99.9% Copper Purity
    • 380 V Scrap Metal Processing Equipment Scrap Copper Wire Granulator 99.9% Copper Purity
  • 380 V Scrap Metal Processing Equipment Scrap Copper Wire Granulator 99.9% Copper Purity

    Product Details:

    Place of Origin: China
    Brand Name: TMS
    Certification: CO, ISO
    Model Number: TMS-400

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: negotiable
    Packaging Details: Standard exported ply wooden case
    Delivery Time: 10 work days
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 20 sets per month
    Contact Now
    Detailed Product Description
    Wire Diameter Processed: 0.1-20 Mm Capacity: 150-200 Kg/h
    Copper Purity: 99.9% Name: Copper Recycling Machine
    Voltage: 380 V Or Customised Function: Recycle Scrap Copper Cables
    Size: 2700*1900*2300 Mm Power: 23.12 Kw
    High Light:

    copper wire recycling machine

    ,

    scrap metal recycling equipment

    Brief Introduction

    400 Copper recycling machine is used for handling automobile wires, communication cables and other types of miscellaneous wires and cables. This machine has a compact structure, and shows stable and reliable performance. Scrap copper wires and cables are chopped by the Chopper in the machine and then plastic pieces and copper granules are separated by airflow and vibration. Copper granules and plastic pieces come out of the machine through different outlets, and dust is collected by Dust Collector.

    (Copper wires less than 20mm in diameter are suitable; single conductor with diameter of 0.2-0.3mm is best.). If the diameter of cables is more than 20mm and less than 40mm, the large model TMS-800 and 1000 are best choice for you.

    Machine features:

    1. The whole system is controlled by the Electricity Control Panel.

    2. The operation is stable.

    3. Minimum copper recovery rate can reach 99%.

    4. Small area occupy and save labour.

    Specifications

    Processing capacity: 150-200kg/hour.

    Total Power: 23.12kw.

    Dimensions: L2300*W1950*H2150mm.

    Weight: 2000kg.

    Blade Quantity: 8 Rotating, 4 Fixed.

    Technical specifications

    Equipment Components

    Chopper

    Motor Power: 15kw

    Rotating Blade Quantity: 8

    Quantity of Fixed Blades: 4

    Screen Size: Φ3mm / Φ4mm

    Spindle speed: 900r/min

    High pressure fan

     3kw

    Separator

    Vibration Motor: 0.18kw (2 Units)

    Vibration: Frequency Regulation

    Bottom Blower Fan

    Fan Power: 2.2 kw

    Filter: Φ280 * 1000

    Air Volume Control: electric control panel on the electric control box

    Upper Suction Fan

    Fan power: 2.2 kw

    Material Collecting Mode: Cyclone Dust Collector

    Collecting Bag: 1

    Dust bag: 1

    Small shaking table

    0.18 kw*2sets

    The choice of a Cable Granulator depends on the material properties of the types of copper wires and cables. Correct choice can not only improve the working efficiency, but also extend the service life of the machine. The cutting blades are made with Wire Cutting Technique, blades are replaceable for each other. We have different requirements for blades to different types of copper wires.

    1). Air-fine Wires, Multi-strands

    When dealing with Air-fine Wires and Multi-strands fixed blades and rotating blades must be very sharp so that copper wires can be cut and copper granules will be very clean and pure.

    2). Single-strand and Single-core Wires:

    When dealing with Single-strand and Single-core Wires, the rotating blades shall be a little blunt and fixed blades must be sharp. In this case, the spacing between the rotating blades and fixed blades is just able to hold wires but does not touch the cores. The wires are crushed but there will be little copper granules with plastics outside.

    (Note: if blades are not adjusted in accordance with the requirements, it may cause too many copper clad granules and the separation is not clean, etc.)

    380 V Scrap Metal Processing Equipment Scrap Copper Wire Granulator 99.9% Copper Purity
