35-40 Ton/Day Scrap Metal Baler Bale Size 500*500mm

Minimum Order Quantity : 1 set Price : Negotiated
Packaging Details : Full container 20'GP or 40'GP for scrap metal baler Delivery Time : 20 work days
Payment Terms : L/C, T/T, Western Union Supply Ability : 10 sets per month
Place of Origin: Zhengzhou, China Brand Name: TMS
Certification: CE, ISO Model Number: 2500B

Detail Information

Name: Scrap Metal Baler Application: Scrap Metal Raw Materials
Function: Compress Metals Into Cuboids Bale Motor Power: 22kw+22kw
Nominal Pressure: 250Ton Bale Size: 500*500mm
Material Box: 2000*1400*900mm Capacity: 35-40 T/day
High Light:

40 Ton/Day Scrap Metal Baler

,

500*500mm Scrap Metal Baler

,

500*500mm hydraulic metal baler

Product Description

35-40 Ton/Day Scrap Metal Baler Bale Size 500*500mm



Introduction of scrap metal baler



Scrap metal baler can extrude various metal wastes (leftover materials, shavings, scrap steel, scrap aluminum, scrap copper, waste stainless steel, scrap cars, etc.) into qualified furnace materials of various shapes such as cuboid, octagonal and cylinder, which can not only reduce the transportation and smelting cost, but also improve the feeding speed. This series of scrap metal baler are mainly suitable for steel mills, recycling industries, as well as non-ferrous and ferrous metal smelting industries.

Scrap metal baler can extrude all kinds of metal raw materials, such as metal edges and corners, steel shavings, scrap steel, scrap iron, scrap copper, scrap aluminum, aluminum shavings, disintegrated automobile shells, scrap oil drums, etc. into qualified furnace materials of various shapes such as cuboids and cylinders. It is convenient for storage, transportation and recycling.



Specification data of scrap metal baler

Model 2500B
Nominal pressure 250T
Power 22kw+22kw
Pump

160YCY14-1B

Material box size 2000*1400*900mm
Bale size 500*500mm
Bale-out mode Turn over / manual Note: Full automatic operation can be configured
Bale density ≥1800kg/m3
Production efficiency 35-40 Ton / day



Features of scrap metal baler



1. All models are hydraulically driven, and manual operation or PLC automatic control can be selected.

2. The methods of bag delivery include bag turning, side pushing, front pushing, manual bag taking, etc.

3. A variety of models are available: different pressure, bin size, package size and shape.

4. Where there is no power supply, it can be powered by diesel engine.

5. The size of the compression chamber and the shape and size of the packing block can be designed and customized according to the user's requirements.

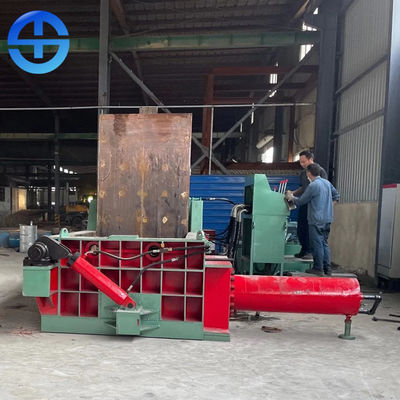

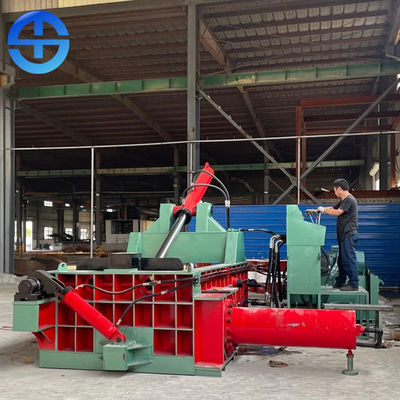

Structure of scrap metal baler



This machine is composed of frame, hydraulic system and electric system.

1. Main machine is composed of frame, door cover and cover cylinder, main cylinder and main pressure head, side cylinder and side pressure head, bale turning cylinder and bale turning machine etc.

1) Frame is composed of base, right and left wall plates, cover plate, main cylinder bracket, side cylinder frame etc. Compressed bin is composed of base, right and left wall plates, door cover, main pressure head, side pressure head and panel turnover etc., each part (except panel turnover) is installed with abrasion resistant lining board through carburizing and quenching.

2) Door cover and cover cylinder. Door cover should be hinge jointed with spindle sleeve on right and left wall plates, cover cylinder should also be hinge jointed with beam support by pin, slipper of door cover (tapered end should be installed at front end) should be connected with piston rod head of cover cylinder, under movement of cover cylinder, close and open of door cover are finished, at this time, it takes effect of tight locking and loose locking.

2. Hydraulic system is composed of motor pump station, valve station, oil tank and pipeline etc.

3. Electric system is mainly composed of motor start circuit etc.


35-40 Ton/Day Scrap Metal Baler Bale Size 500*500mm 0
