Small 15 Kw Metal Smelting Furnace Electric Overturning Medium Frequency

Minimum Order Quantity : 1 set Price : negotiable
Packaging Details : Standard exported ply wooden case or Full feet container for large quantity Delivery Time : 10-15 work days
Payment Terms : L/C, T/T, Western Union Supply Ability : 100 sets per month
Place of Origin: CHINA Brand Name: TMS
Certification: CO, ISO, CE Model Number: TMS-15

Detail Information

Name: Metal Smelting Furnace Function: Smelting Copper Aluminum And Gold
Input Power: 15 Kw Output Current: 3-22 A
Output Voltage: 70-550V Capacity: 3-10 Kg Per Furnace
Power Size: 270*450*460 Mm Power Weight: 24 Kg
High Light:

gold melting furnace


aluminum melting furnace

Product Description

Small 15 Kw Metal Smelting Furnace Electric Overturning Medium Frequency


Introduction of metal smelting furnace


Main applications: It is used for heating steel, stainless steel, copper, aluminium, gold, silver and other metal materials; smelting capacity from 4KG to 200KG

Typical applications: The basic composition of medium frequency smelting furnace includes medium frequency power supply, compensation capacitor box and smelting furnace. According to different application requirements, it may also include infrared thermometer, temperature controller and other devices. There are three kinds of smelting furnaces: overturned smelting furnace, ejection smelting furnace and fixed smelting furnace. The overturning furnace can be divided into mechanical overturning furnace, electric overturning furnace and hydraulic overturning furnace according to the overturning mode.

Technical parameters of metal smelting furnace


Input Power 90kw
Output Current 25-170A
Output Voltage 70-550V
Oscillation frequency 1KHZ-20KHZ
Load continued rate 100% 24hours work continuous work
Power weight 57KG
Power size W400*H870*L750mm
Capacitance box size L850*W530*H600mm
Furnace size Customized by capacity
Requirement of cooling water system ≥0.2Mpa ≥6L/Min


Product Application scope: (one-time melting capacity)


Model Power Melting capacity of Steel, stainless steel Melting capacity of aluminium , aluminum alloy Melting capacity of copper, gold, silver
TMS-15 15 KW 3 KG 3 KG 10 KG
TMS-25 25 KW 6 KG 6 KG 20 KG
TMS-35 35 KW 10 KG 12 KG 40 KG
TMS-45 45 KW 15 KG 21 KG 70 KG
TMS-70 70 KW 25 KG 30 KG 100 KG
TMS-90 90 KW 40 KG 40 KG 120 KG
TMS-110 110 KW 60 KG 50 KG 150 KG
TMS-160 160 KW 75 KG 75 KG 200 KG


Features of metal smelting furnace


(1) Medium frequency smelting furnace is used for smelting steel, stainless steel, copper, aluminium, gold, silver and other materials.

(2) Medium frequency smelting has good electromagnetic stirring effect, which is beneficial to the uniformity of temperature and structure of smelting metal, to the scum and to the reduction of impurities.

(3) The frequency range is wide, ranging from 1 KHZ to 20 KHZ. The induction coil and matching compensation capacitor can be designed to determine the output frequency by considering the factors of melting volume, electromagnetic stirring, heating efficiency and working noise.

(4) Compared with Thyristor Intermediate frequency, energy saving is at least 20%.

(5) The equipment is small in size, light in weight, and the smelting capacity ranges from several kilograms to several hundred kilograms. It has a wide range of choices. It is suitable not only for factory production, but also for small smelting in schools and research institutes.

Main smelting furnace specifications and heating capacity:

The larger heating capacity of each furnace listed in the table below is 50-60 minutes for each furnace at cold furnace and 20-30 minutes for each furnace at hot furnace.

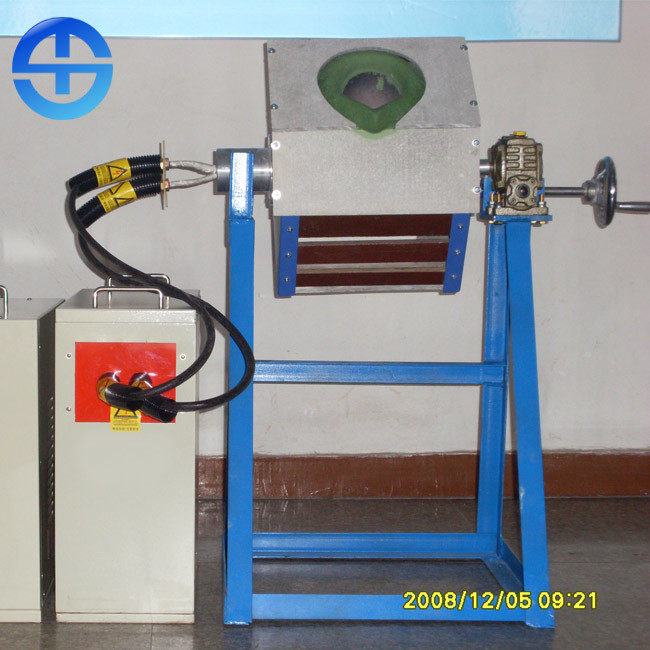

Small 15 Kw Metal Smelting Furnace Electric Overturning Medium Frequency 0



Small 15 Kw Metal Smelting Furnace Electric Overturning Medium Frequency 1
