Auto Motor Coil Binding Machine Stator Engine Cracker Hydraulic System

Minimum Order Quantity : 1 set Price : negotiable
Packaging Details : Standard exported ply wooden case or Full container for large quantity Delivery Time : 10 work days
Payment Terms : L/C, T/T, Western Union Supply Ability : 30 sets per month
Place of Origin: China Brand Name: TMS
Certification: CO, ISO Model Number: TMS-003

Detail Information

Name: Motor Recycling Machine Function: Cutting And Pulling Copper From Stator
Stator Diameter: 100-250 Mm Power: 4.5 Kw
Capacity: 30-50 Pieces/h Size: 1470*740*2040 Mm
Weight: 1050 Kg Voltage: 380V Or Customized
High Light:

electric motor wrecker

,

electric motor recycling machine

Product Description

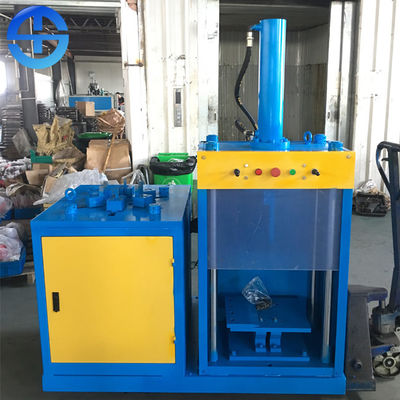

Auto Motor Coil Binding Machine Stator Engine Cracker Hydraulic System



Description of motor recycling machine



Motor recycling machine is used to cut copper from the stator. It can process various motor stators with an outer diameter of 10-25CM. First cut the stator / motor in half, and finally remove all the internal copper in 2 steps. It is mainly composed of hydraulic pump, hydraulic control system,tangential cylinder, pull cylinder and electronic control system. It uses a hydraulic system with stable disassembly function, which greatly improves disassembly efficiency and reduces labor intensity. The cutting blade is made of high wear-resistant hard alloy, which is easy to operate, reliable, fast cutting, and does not produce adhesion and burrs.Equipped with automatic thread gripping device, which can greatly reduce the labor intensity during operation.The cutting blade and the gripper can adjust the reciprocating distance, which is more conducive to the placement of the stator coil. The cutting part has two pieces difference blades:One piece named sharp knives usd to cut the stators. Another piece named flat knives used to cut the motor housing.



Technical parameters of motor recycling machine



Model Power Capacity External diameter Size Weight
TMS-003 4.5kw 30-50 pcs/h 100-250mm 1470*740*2040mm 1050kg



Features of motor recycling machine



1. Adopted hydraulic system, the disassembly function is stable, the disassembly efficiency is greatly improved, and the labor intensity is reduced.

2. It is targeted with high efficiency, after cut the stator in half, it can take out all the copper winding within 2 times, which is high economic efficiency.
3. Nice appearance with reasonable structure.
4. Using heavy cylinder, large torque, can withstand high loads.
5. We use international famous brand for hydraulic solenoid valve with durable long life.
6. The material of fixture is alloy steel with durable long life.
7. The processing of equipment is without metal loss, with improved recycling value, and environmental friendly.

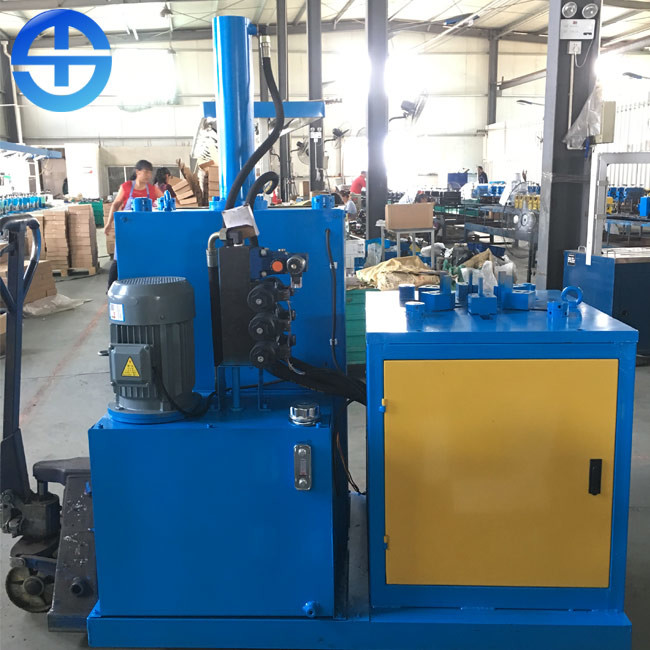

Structure of motor recycling machine

1.Electric Box: Strong operation funtion,stable system.
2.Cutting Panel: Cut the motor stator into 2pcs.
3.Blade: The blade is made of alloy steel with high hardness material, has a long service life.
4.Pulling Panel: Pull the copper wire out of the stator.


Use and Maintance of motor recycling machine



1. Use ordinary hydraulic oil, the oil volume is about 35L.

2. Claws with screw, check every two.

3. Oil cylinder screw, check every two weeks whether it is loose.

4. With a description video, customers can use for reference.


Auto Motor Coil Binding Machine Stator Engine Cracker Hydraulic System 0
