Scrap Electric 30 Piece/H 50 Piece/H Motor Stator Recycling Machine

Minimum Order Quantity : 1 set Price : USD8100-9500 per set
Packaging Details : Standard exported ply wooden case or Full container for large quantity Delivery Time : 10 work days
Payment Terms : L/C, T/T, Western Union Supply Ability : 30 sets per month
Place of Origin: China Brand Name: TMS
Certification: CO, ISO Model Number: TMS-003

Detail Information

Name: Scrap Electric Motor Recycling Machine Function: Recycle Scrap Motors
Stator Diameter: 100-250 Mm Power: 4.5 Kw
Capacity: 30-50 Pieces/h Size: 1470*740*2040 Mm
Weight: 1050 Kg Voltage: 380V/50hz, 3 Phase
High Light:

50 Piece/H Motor Stator Recycling Machine

,

30 Piece/H Motor Stator Recycling Machine

,

50 Piece/H electric motor recycling machine

Product Description

30-50 Piece/H Scrap Electric Motor Recycling Machine Recycle 100-250mm Motors

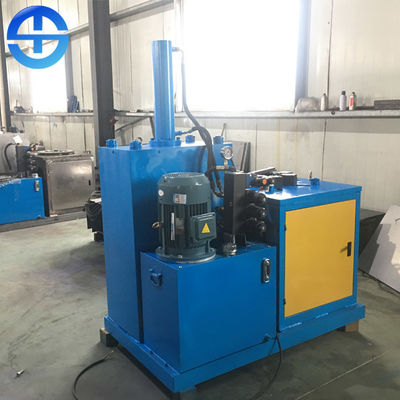

Scrap Electric 30 Piece/H 50 Piece/H Motor Stator Recycling Machine 0



Summary of scrap electric motor recycling machine

The scrap stator recycling machine is used for cutting and pulling copper out from stator. It can be process all kinds of motor stator with external diameter 100-250mm. It cut the stator/motor in half firstly, then take all the inside copper out finally that all steps within 2 times. This machine is composed of hydraulic system, electronic control system, blade, push rod, claws, motors and main body. It is used in the motor factory to recover the unqualified motor stator enameled wire and steel sheet, and also widely used in some factories specialized in the recovery of motor disassembly. It is also widely used in the recovery of copper wire in washing machine motor and air conditioning compressor.The machine is flexible and convenient, easy to operate, compact in structure and large in output.

Specifications of scrap electric motor recycling machine

Model Power Capacity External diameter Size Weight
TMS-003 4.5kw 30-50 pcs/h 100-250mm 1470*740*2040mm

1050kg

Advantage of scrap electric motor recycling machine

1. Cutting blade, gripping claw can adjust the reciprocating distance, more conducive to the placement of stator coil.

2. Equipped with automatic line grabbing device, the worker can greatly reduce the labor intensity in the process of operation.

3. The cutting blade is made of high wear-resistant carbide, which is easy to operate, reliable, fast to cut, and does not produce adhesion and burr.

4. Adopted hydraulic system, the disassembly function is stable, the disassembly efficiency is greatly improved, and the labor intensity is reduced.

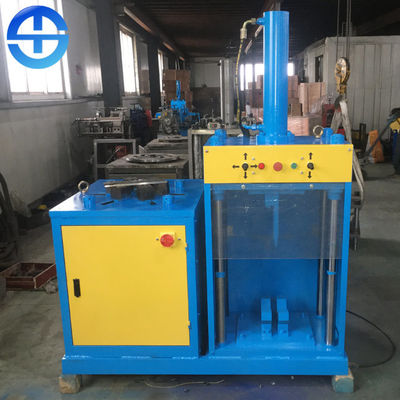

Scrap Electric 30 Piece/H 50 Piece/H Motor Stator Recycling Machine 1
