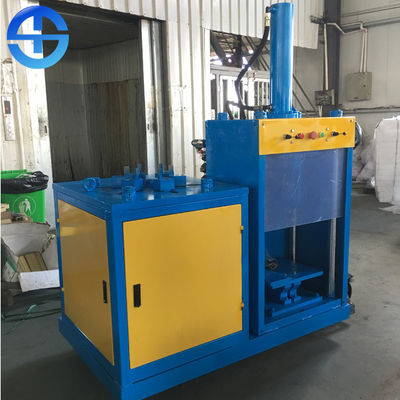

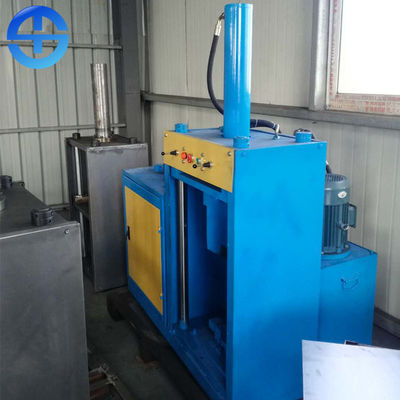

Scrap Motor Stator Recycling Machine Copper Cutting And Pulling Machine
The copper cutting and pulling machine is used for cutting and pulling copper out from stator. It can be process all kinds of motor stator with external diameter 80-300 mm. It cut the stator/motor in half firstly, then take all the inside copper out finally that all steps within 2 times. And it is mainly composed of hydraulic pump, hydraulic control system, tangential cylinder, pull cylinder and electronic control system.It's very cost-effective and convenient in using.
Machine characteristics
1. Adopted hydraulic system, the disassembly function is stable, the disassembly efficiency is greatly improved, and the labor intensity is reduced.
2. The cutting blade is made of high wear-resistant carbide, which is easy to operate, reliable, fast to cut, and does not produce adhesion and burr.
3. Equipped with automatic line grabbing device, the worker can greatly reduce the labor intensity in the process of operation.
4. Cutting blade, gripping claw can adjust the reciprocating distance, more conducive to the placement of stator coil.
Product specifications
| Model | Power | Capacity | External diameter | Size | Weight |
| TMS-003 | 5.5kw | 30-50 pcs/h | 80-300mm | 1260*710*1860mm | 790kg |
