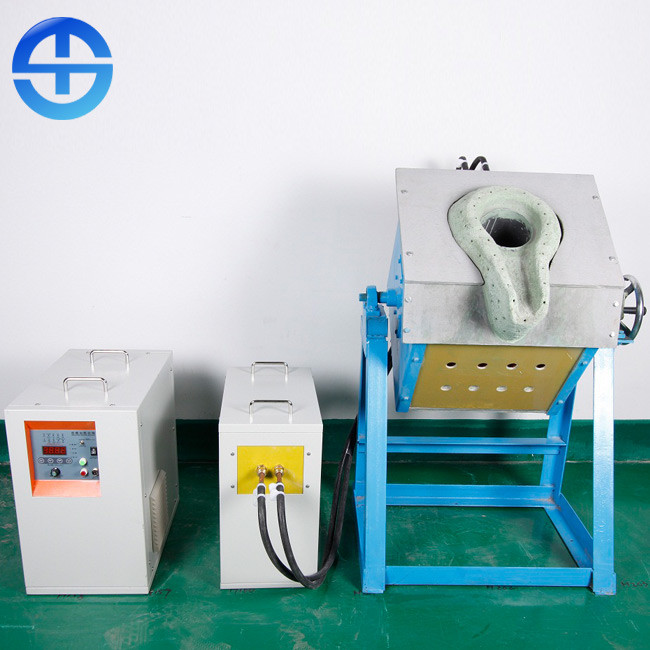

Electrical control metal smelting furnace for copper aluminum and gold
Description
The metal smelting furnce is used for smelting copper, aluminum, gold and other metals. The smelted metal can be recycled to make related product. The alternating current flows to a conductor (usually a copper tube) that is curled into a ring, which generates a magnetic beam. When the metal is placed in it, the magnetic beam runs through the metal body and generates a pit current (rotating current) in the direction of the Self-turning of the magnetic beam... At this time of induction, the resistance in the metal produces Joule heat (1 square R), which makes the temperature rise. This is induction heating. Thus, the heated objects such as metals can be heated in a non-contact state. (Fever is caused by Joule heat and hysteresis loss, but mainly by Joule heat).
Features
1. Using IGBT power devices and our company's unique converter control technology, the equipment has higher reliability and lower maintenance cost.
2. 100% load sustainability, 24 hours operation at maximum power;
3. It has constant voltage/constant power control function and higher heating efficiency.
4. Full display of output power, frequency and current;
5. Installation is simple. It can be used only by connecting electricity and water, and no special person is required to install it.
6. Miniaturization is only 20-130KG.
Technical parameters
| Input Power | 25kw |
| Output Current | 5-45A |
| Output Voltage | 70-550V |
| Oscillation frequency | 1KHZ-20KHZ |
| Load continued rate | 100% 24hours work continuous work |
| Power weight | 34KG |
| Power size | W270*H450*L460mm |
| Capacitance box size | L430*W230*H430mm |
| Furnace size | Customized by capacity |
| Requirement of cooling water system | ≥0.2Mpa ≥10L/Min |
