90KW Gold Smelting Furnace / Copper Smelting Furnace Lightweight Small Size

90KW Gold Smelting Furnace / Copper Smelting Furnace Lightweight Small Size

90KW Gold Smelting Furnace / Copper Smelting Furnace Lightweight Small Size

Product Details:

Place of Origin: CHINA
Brand Name: TMS
Certification: CO, ISO, CE
Model Number: TMS-90

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: Standard exported ply wooden case or Full feet container for large quantity
Delivery Time: 10-15 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100 sets per month
Contact Now
Detailed Product Description
Name: Copper Smelting Furnace Function: Smelting Copper Aluminum And Gold
Input Power: 90 Kw Output Current: 25-170 A
Output Voltage: 70-550V Capacity: 40-120 Kg Per Furnace
Power Size: 400*870*750 Mm Power Weight: 57 Kg

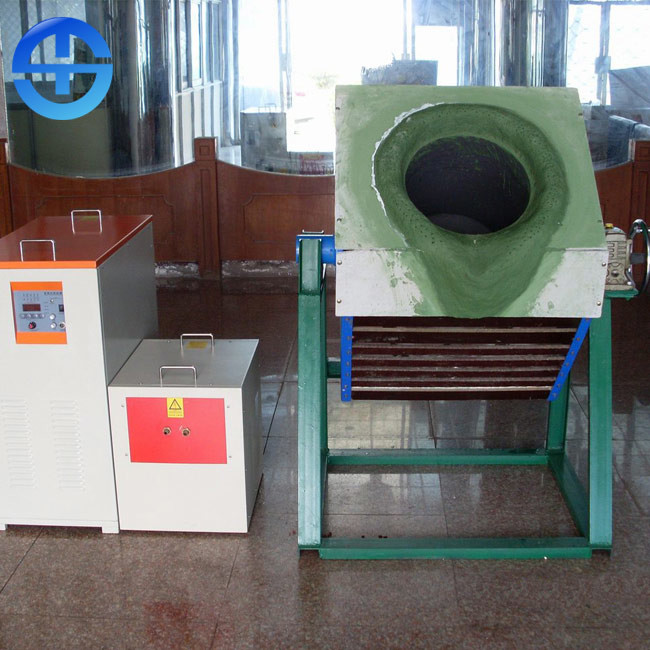

90 KW Electric Overturning Medium Frequency Copper Gold Smelting Furnace





Copper smelting furnace characteristics

Main applications: It is used for heating steel, stainless steel, copper, aluminium, gold, silver and other metal materials; smelting capacity from 4KG to 200KG

Typical applications: The basic composition of medium frequency smelting furnace includes medium frequency power supply, compensation capacitor box and smelting furnace. According to different application requirements, it may also include infrared thermometer, temperature controller and other devices. There are three kinds of smelting furnaces: overturned smelting furnace, ejection smelting furnace and fixed smelting furnace. The overturning furnace can be divided into mechanical overturning furnace, electric overturning furnace and hydraulic overturning furnace according to the overturning mode.

Copper smelting furnace features

(1) Medium frequency smelting furnace is used for smelting steel, stainless steel, copper, aluminium, gold, silver and other materials.

(2) Medium frequency smelting has good electromagnetic stirring effect, which is beneficial to the uniformity of temperature and structure of smelting metal, to the scum and to the reduction of impurities.

(3) The frequency range is wide, ranging from 1 KHZ to 20 KHZ. The induction coil and matching compensation capacitor can be designed to determine the output frequency by considering the factors of melting volume, electromagnetic stirring, heating efficiency and working noise.

(4) Compared with Thyristor Intermediate frequency, energy saving is at least 20%.

(5) The equipment is small in size, light in weight, and the smelting capacity ranges from several kilograms to several hundred kilograms. It has a wide range of choices. It is suitable not only for factory production, but also for small smelting in schools and research institutes.

Main smelting furnace specifications and heating capacity:

The larger heating capacity of each furnace listed in the table below is 50-60 minutes for each furnace at cold furnace and 20-30 minutes for each furnace at hot furnace.

Application scope of copper smelting furnace: (one-time melting capacity)

Model Power Melting capacity of Steel, stainless steel Melting capacity of aluminium , aluminum alloy Melting capacity of copper, gold, silver
TMS-15 15 KW 3 KG 3 KG 10 KG
TMS-25 25 KW 6 KG 6 KG 20 KG
TMS-35 35 KW 10 KG 12 KG 40 KG
TMS-45 45 KW 15 KG 21 KG 70 KG
TMS-70 70 KW 25 KG 30 KG 100 KG
TMS-90 90 KW 40 KG 40 KG 120 KG
TMS-110 110 KW 60 KG 50 KG 150 KG
TMS-160 160 KW 75 KG 75 KG 200 KG

Copper smelting furnace technical parameters

Input Power 90kw
Output Current 25-170A
Output Voltage 70-550V
Oscillation frequency 1KHZ-20KHZ
Load continued rate 100% 24hours work continuous work
Power weight 57KG
Power size W400*H870*L750mm
Capacitance box size

L850*W530*H600mm

Furnace size Customized by capacity
Requirement of cooling water system ≥0.2Mpa ≥6L/Min
