1-30mm Diameter Copper Cable Stripper Wire Stripping Equipment

1-30mm Diameter Copper Cable Stripper Wire Stripping Equipment

Product Details:

Place of Origin: China
Brand Name: TMS
Certification: CO, ISO
Model Number: 918-F

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: Standard exported ply wooden case
Delivery Time: 7 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100 sets per month
Get Best Price Contact Now

Detail Information

Name: Copper Wire Stripper Function: Strip Copper Wire
Power: 1.5 Kw Wire Diameter Stripped: 1-30 Mm
Size: 560*550*840 Mm Blades: 9 Pieces
Wire Hole: 2+9 Weight: 70 Kg
High Light:

electric cable stripping machine

,

scrap copper cable stripper

Product Description

1-30mm Diameter Copper Cable Stripper Wire Stripping Equipment



Description of copper wire stripper



This machine is suitable for all kinds of wires and loose wires to spread automatically, including copper wire, aluminum wire and steel wire. Strippable diameter( Ø 1- Ø 30 mm). The equipment is stable, easy to use, easy to operate, practical, is the most commonly used wire stripper.



Technical parameters of copper wire stripper



Model 918-F
Power 1.5 kw
Wire diameter stripped 1-30 mm
Blades 9pcs
Hole 2+9
Size 560*550*840 mm
Weight 70 kg
Output 30 m per minute



Features of copper wire stripper



1. It has simple structure(single roller single blade), easy using and affordable.

2. Small noise, preacticable.

Two adjusting handles can change the distance between knives to process wires with different diameter.
3. Gearbox and electric motor is equipped with start and stop button which can ensure safe operation.
4. The copper wires stripped by wire stripper machine is still entire which are easy to store and convenient to be remanufactured.
5. Easy operation, simple knife change, low cost and no pollution. What’s more, all our wire stripping machines are with CE certification.



Working principle of copper wire stripper



Before the separation and recycling of the surface layer and the inner core of the waste cable, the connector of the cable should be cut off to ensure the long-term durability of the blade, and then the feeding starts. The surface layer of the cable will be cut by the blade on the machine, and then the cut waste cable will be sent to the roller by the conveyor belt, and the inner core and the surface layer will be separated by the strong extrusion force of the roller, However, starting from the personnel, the surface layer and the inner core should be tied up by classification, which is the complete working principle of the waste cable stripping machine.



Application of copper wire stripper



Copper wire stripper can strip three types of wires, one is short wire, the head and tail of short wire are completed through the front wire feeding wheel and front wire pressing. The second is the long line, which only needs to be peeled. The end of the long line is completed by the cooperation of the front wire feeding wheel and the front wire pressing wheel, and the end of the line is completed by the cooperation of the rear wire feeding wheel and the rear wire pressing wheel. The third is sheath, which needs to peel one to three layers of wires. The first three layers of wires are completed through the cooperation of the front wire feeding wheel and the front wire pressing wheel, and the last three layers are completed through the cooperation of the rear wire feeding wheel and the rear wire pressing wheel.



Points for attention in recycling process



1. The blade should not be too sharp to damage the inner core. At the same time, the position of the blade should be set according to different cables.

2. Pay attention to check whether the position is wrong when feeding.

3. Pay attention to whether the pressure of the springs on both sides is too tight, which will cause the cable cannot pass through.

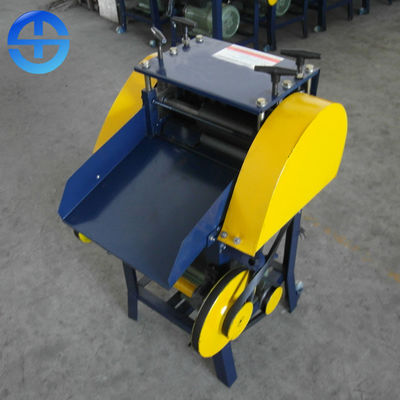

1-30mm Diameter Copper Cable Stripper Wire Stripping Equipment 0
