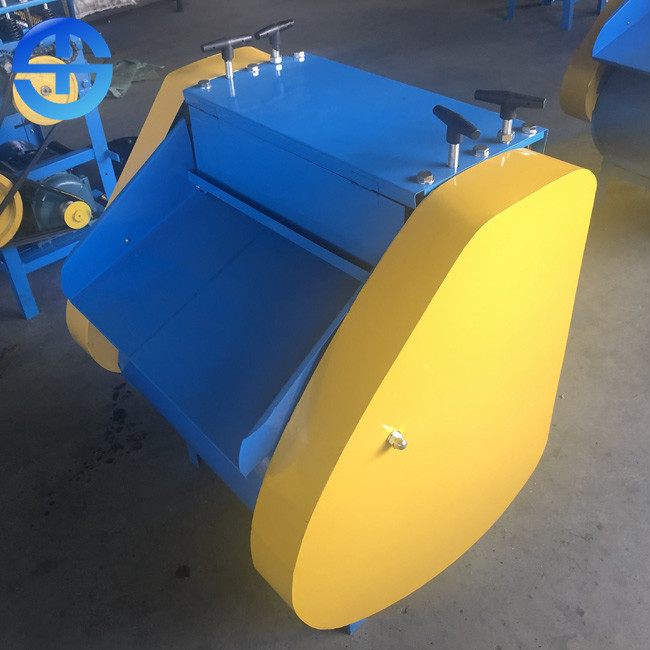

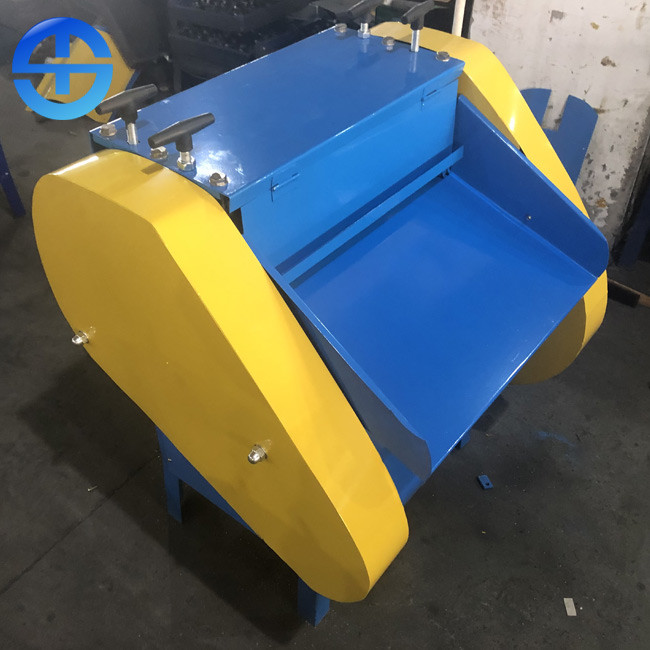

30m/Min Copper Wire Cable Stripper Machine 1-50mm Diameter

30m/Min Copper Wire Cable Stripper Machine 1-50mm Diameter

Product Details:

Place of Origin: Zhengzhou, China
Brand Name: TMS
Certification: ISO, CE, CO
Model Number: KOF

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Ply wooden case
Delivery Time: 7 work days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 150 sets per month
Get Best Price Contact Now

Detail Information

Name: Wire Stripping Machine Function: Strip Copper Wires
Motor Power: 3kw Wire Diameter Stripped: 1-50mm
Machine Size: 700*610*840 Mm Voltage: 380 V Or Customised
Productivity: 30m/min Gross Weight: 110kg
High Light:

Copper Wire Cable Stripper Machine

,

30m/Min Copper Cable Stripper Machine

,

50mm Wire Stripping Machine

Product Description

30m/Min Copper Cable Stripper 1-50mm Wire Diameter Wire Stripping Machine



Description of wire stripping machine



Wire stripping machine has the most funtions among our stripper machines. It applies to various types of electric wires and cables, including copper wires, aluminum wires, steel wires, etc. Various rubber cables are easy to be stripped. Moreover, the cable stripper can strip single-core or twin-core flat wires at one time. The diameter range of cables that can be stripped is 2-120mm. The cutting speed is 30 m/minute.

The machine has totally 15 feeding holes for the wires, including 1 big and 1 small hole, 11 small round knife and 2 big round knife inlets for sheath wire, which can press out the metal in single-core wires directly.



Technical Parameters of wire stripping machine



Model KOF
Machine size 700*610*840mm
Productivity 30m/min
Motor Power 3kw
Gross Weight 110kg
Motor 380V/220V
Wire diameter stripped 1-50mm
Blades 19 pcs
Hole 2+2+11



Feature of wire stripping machine



1) Nice appearance, stable performance

2) This machine suitable for a variety of wire. Wire stripping range:2-120mm.This machine is practicable and easy to handle.

3) Frame dual blades principal, can process different diameter cable, easy to operate and durable.

4) This machine is easily to use, portable,energy saving and good looks,just like the normal stripper machine usage.

5) This model are easy to operate, convenient to carry, energy saving, for single copper wire(hard wires) can be rolled or blades stripping, other cables(soft wires) can be easily stripped.



Use direction of wire stripping machine



1. When start the machine, check that whether the operation is normal. When feeding, according to the size of the cable diameter, enter the corresponding feeding hole one by one.

2. In order to make the blade durable for a long time, the joint of rubber plastic cable should be cut off when feeding, so as to avoid the blade gap from collapsing.

3. If the feed is too deep and broken, pay attention to a few points

(1). The spring pressure on both sides of the feed gear and blade shaft should be adjusted.

(2). Check whether the position of feed hole is misplaced during feeding.

(3). If the blade is replaced, whether the edge is too sharp, use the grindstone to trim slightly until it is moderate

4. If after feeding, the skin has been stripped, but the copper wire can not be exposed, there are mainly the following situations.

(1). If the spring pressure is too loose, the pressure should be adjusted tightly.

(2). If the knurling of the upper shaft is too deep, the upper shaft should be polished with a grindstone, but it should not be grinded too much. Too much grinding will make it difficult for oily cables.

(3). If the cable diameter is too small or the gap between the upper and lower shafts is too large, adjust the clearance between the two shafts properly.

(4). The processed cable has been heated, the copper wire will not be easily exposed to the skin.

5. If the cable cannot be driven by the rolling gear after feeding, and the material stays in the middle, the following situations will occur.

(1). Check whether the belt of each gear is loose.

(2). Check whether the spring pressure on both sides of each gear is too tight and there is no jacking force. The pressure should be relaxed.

(3). Too much oil in cable leads to slipping of two shafts. Clean the two shafts frequently.
