Light Weight Copper Wire Stripping Machine Manual Copper Wire Stripper Model SD-025
Product Details:
| Place of Origin: | China |
| Brand Name: | TMS |
| Certification: | CO, ISO |
| Model Number: | SD-025 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | negotiable |
| Packaging Details: | Standard exported ply wooden case or Full container for large quantity |
| Delivery Time: | 7 work days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 100 sets per month |
|
Detail Information |
|||
| Name: | Wire Stripping Machine | Function: | Strip Copper Cable |
|---|---|---|---|
| Wire Diameter Stripped: | 1.5-25 Mm | Size: | 150*130*310 Mm |
| Blades: | 1 Pieces | Wire Hole: | 1 |
| Weight: | 5.5 Kg | Color: | As Customer's Requirement |
| High Light: | scrap copper wire stripping machine,scrap copper cable stripper |
||
Product Description
Light Weight Copper Wire Stripping Machine Manual Copper Wire Stripper Model SD-025

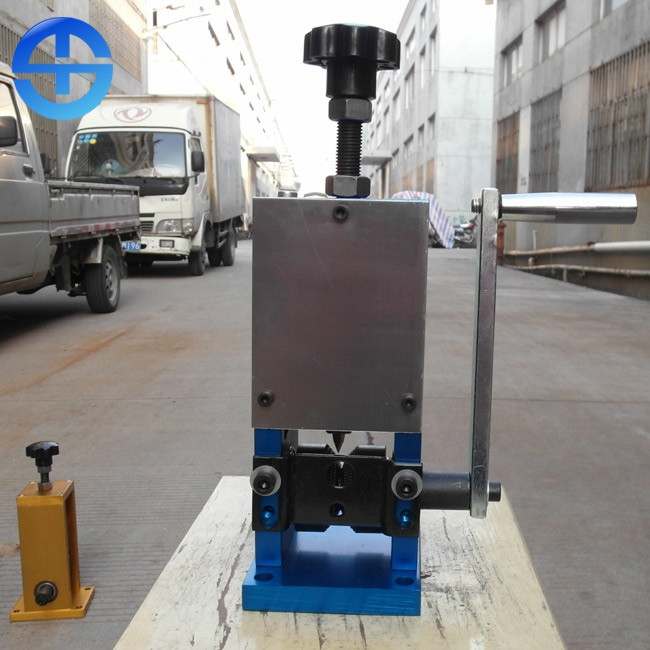

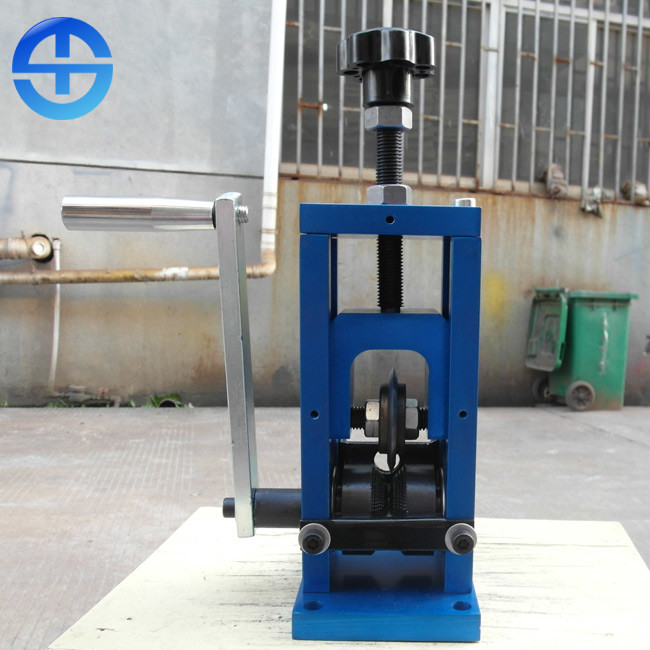

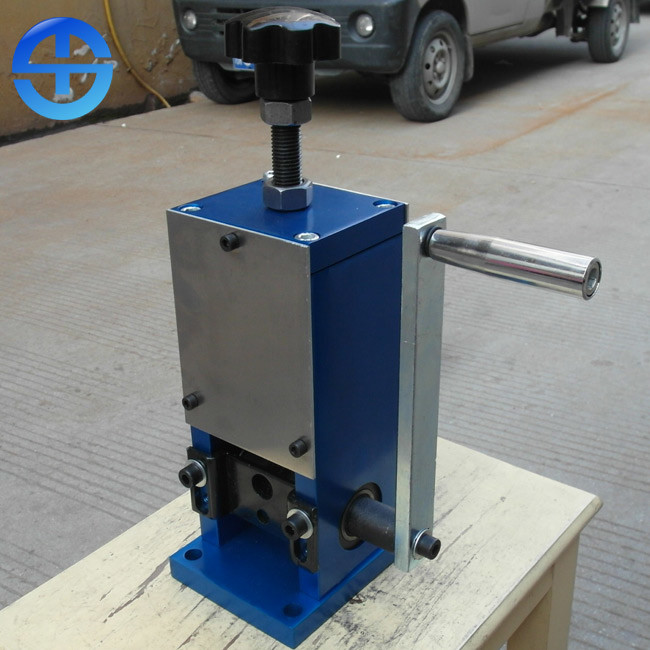

Description of wire stripping machine
The aluminum alloy manual wire stripper is easy to operate with hand crank or hand drill. It is portable and convenient to use, energy saving, small body, light weight, easy to carry.
This machine is easy to operate, easy to carry, energy saving and environmental protection, beautiful appearance; wire and cable through the blade to break the insulation layer after taking out the core, power can be hand or electric drill drive, energy saving and environmental protection.
Technical specification of wire stripping machine
| Model | SD-025 |
| Power | By hand |
| Wire diameter stripped | 1.5-25mm |
| Blades | 1pcs |
| Hole | 1 |
| Size | 150*130*310 mm |
| Weight | 5.5 kg |
Features of wire stripping machine
1. This wire stripper has a small shape and can be operated on any place as long as there is a platform, which greatly broadens the use conditions of the site.
2. Hand wire stripping, no motor, safer.
3. The fuselage is made of high quality aluminum alloy, which is lighter and easier to carry.
4. the machine can connect the electric drill to drive the machine to run by electric drill to achieve the purpose of stripping the line.
Manual of wire stripping machine
1. Adjust distance between blades and shaft in accordance with the cable size(the insulating layer stripped but not hurt the inner conductor)
2. Feeding: strip the cables through feeding hole( u can adjust the feeding hole according cable size to the proper position which cables can enter into but not swing)
3. Stripping: (hand operated) rotate hand crank in order to peeling, if can’t peel:
(1). Too small wire diameter
(2). The blades center not in line with groove center( adjust the blades core)
(3). Blades edge is too dull( sharpen the blades)
Drill driven: if u want drill driven in operation, pull down the hand crank first, then install the drill driven rod with drill, u can begin to strip the cables)
Notice: don’t input your hands into the machine in any circumstance.
