Scrap Copper Wire Stripping Machine For 2mm 160mm Cables

Scrap Copper Wire Stripping Machine For 2mm 160mm Cables

Product Details:

Place of Origin: Zhengzhou, China
Brand Name: TMS
Certification: CE, ISO
Model Number: 918-B1

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: USD1480-1550 per set
Packaging Details: Standard exported ply wooden case for scrap copper wire stripping machine
Delivery Time: 7 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 80 sets per month
Get Best Price Contact Now

Detail Information

Name: Scrap Copper Wire Stripping Machine Function: Recycle Pure Copper
Motor Power: 5.5kw Diameter Stripped: 2-160mm
Dimension: 900*680*1300mm Knife: 4 Pieces
Feeding Hole: 2 Pieces Net Weight: 250kg
High Light:

160mm Cables Scrap Copper Wire Stripping Machine

,

2mm Cables Copper Wire Stripping Machine

,

160mm Cables automatic Copper Wire Stripping Machine

Product Description

918-B1 Scrap Copper Wire Stripping Machine For 2-160mm Cables



Description of scrap copper wire stripping machine



We provide various types of wire stripping machines for you to strip the scrap wires and cables easily. They can not only strip wires with plastic cover but also can make rubber cable stripped easily. The metal core can be either copper wires or aluminum wires.

918-B1 scrap copper wire stripping machine applies to various types of cables, high-voltage cables, fiber optic cables, single-core wires above 2mm thick, sheathed flat cables, steel wires, etc. The motor is four-grade speed adjusting and 3 phase. The diameter range of cable that can be stripped is 2 to 160 mm. This machine has totally 2 feeding holes for the wires, 4 pieces knives.

Scrap copper wire stripping machine is composed of Frame, knife shaft, rolling shaft, inlet hole, gear, motor etc.



Technical data of scrap copper wire stripping machine



Model 918-B1
Motor Power 5.5kw
Wire diameter stripped 2-160mm
Knife 4 pieces
Feeding Hole 2 pieces
Dimension 900*680*1300mm
Net Weight 250kg
Output 30m per minute



Features of scrap copper wire stripping machine



1. Nice appearance, stable performance.

2. Small dimensions, easy to move.

3. High efficiency, low power consumption.

4. Easy operation and easy maintenance.

5. Holder can be provided to support the stripping machine.

6. Various voltages are optional and customized as required.



Use direction of scrap copper wire stripping machine



1. When start the machine, check that whether the operation is normal. When feeding, according to the size of the cable diameter, enter the corresponding feeding hole one by one.

2. In order to make the blade durable for a long time, the joint of rubber plastic cable should be cut off when feeding, so as to avoid the blade gap from collapsing.

3. If the feed is too deep and broken, pay attention to a few points

(1). The spring pressure on both sides of the feed gear and blade shaft should be adjusted.

(2). Check whether the position of feed hole is misplaced during feeding.

(3).  If the blade is replaced, whether the edge is too sharp, use the grindstone to trim slightly until it is moderate

4. If after feeding, the skin has been stripped, but the copper wire can not be exposed, there are mainly the following situations.

(1). If the spring pressure is too loose, the pressure should be adjusted tightly.

(2). If the knurling of the upper shaft is too deep, the upper shaft should be polished with a grindstone, but it should not be grinded too much. Too much grinding will make it difficult for oily cables.

(3). If the cable diameter is too small or the gap between the upper and lower shafts is too large, adjust the clearance between the two shafts properly.

(4). The processed cable has been heated, the copper wire will not be easily exposed to the skin.

5. If the cable cannot be driven by the rolling gear after feeding, and the material stays in the middle, the following situations will occur.

(1). Check whether the belt of each gear is loose.

(2). Check whether the spring pressure on both sides of each gear is too tight and there is no jacking force. The pressure should be relaxed.

(3). Too much oil in cable leads to slipping of two shafts. Clean the two shafts frequently.

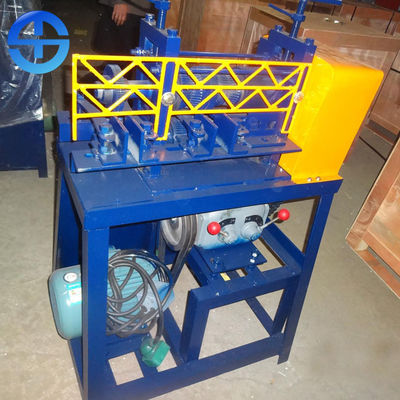

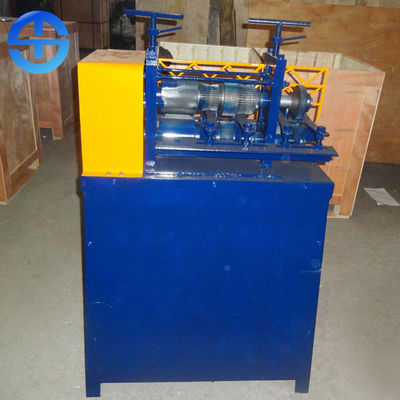

Scrap Copper Wire Stripping Machine For 2mm 160mm Cables 0
