30m/Min Scrap Wire Stripping Machine 30-120mm Stripping Range
Contact Person : Thomas Wang
Phone Number : +86 18203683590
WhatsApp : +8618203683590
|Minimum Order Quantity :||1 set||Price :||USD540-600 per set|
|Packaging Details :||Standard exported ply wooden case for copper wire stripper||Delivery Time :||7 work days|
|Payment Terms :||L/C, T/T, Western Union||Supply Ability :||100 sets per month|
|Place of Origin:||Zhengzhou, China||Brand Name:||TMS|
|Certification:||CE, ISO||Model Number:||MS-001|
|Name:||Copper Wire Stripper||Function:||Strip Copper Wire|
|Motor Power:||1.5kw||Diameter Stripped:||2-60mm|
|Feeding Hole:||1 Pieces||Net Weight:||50kg|
1.5kw Copper Wire Stripper,
60mm Cables Copper Wire Stripper,
1.5kw scrap cable stripping machine

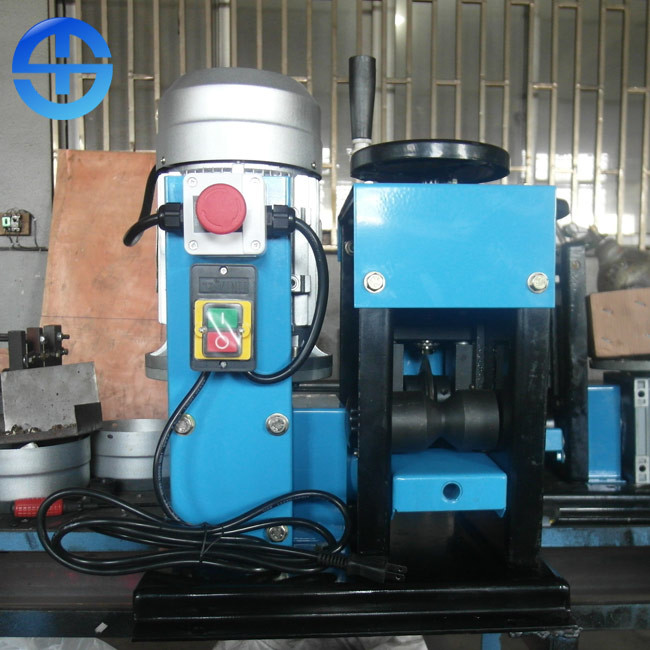

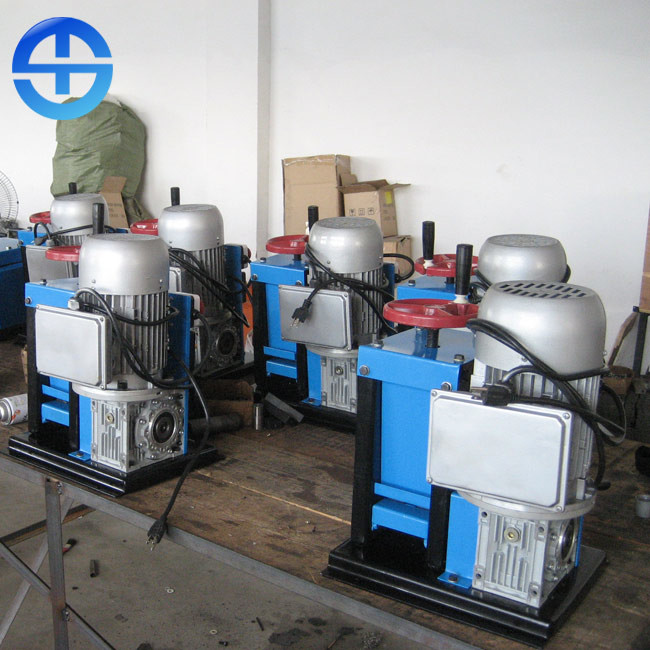

Small 1.5kw Copper Wire Stripper For 20mm 60mm Cables
Description of copper wire stripper
We provide various types of copper wire stripper for you to strip the scrap wires and cables easily. They can not only strip wires with plastic cover but also can make rubber cable stripped easily. The metal core can be either copper wires or aluminum wires. Copper wire stripper is composed of Frame, knife shaft, rolling shaft, inlet hole, gear, motor etc.
This MS-001 model machine adopts special blade. This machine is suitable for all kinds of wire, single wire, multi wire, aluminum wire. The waste wires and cables (without armor) with the diameter of 2-60mm can be peeled (the wires with the diameter of 2-12mm can be fed into the machine through the incoming hole on the incoming hole plate. When the diameter of the wire is greater than 12mm, it is put into the machine from the top of the incoming hole plate, and the wire is pressed by the wire pressing cylinder to make it not deviate.
Features of copper wire stripper
1. Small dimensions, easy to move.
2. High efficiency, low power consumption.
3. Easy operation and easy maintenance.
4. Various voltages are optional and customized as required.
Operation instruction of copper wire stripper
1. When start the machine, check that whether the operation is normal. When feeding, according to the size of the cable diameter, enter the corresponding feeding hole one by one.
2. In order to make the blade durable for a long time, the joint of rubber plastic cable should be cut off when feeding, so as to avoid the blade gap from collapsing.
3. If the feed is too deep and broken, pay attention to a few points
(1). The spring pressure on both sides of the feed gear and blade shaft should be adjusted.
(2). Check whether the position of feed hole is misplaced during feeding.
(3). If the blade is replaced, whether the edge is too sharp, use the grindstone to trim slightly until it is moderate
4. If after feeding, the skin has been stripped, but the copper wire can not be exposed, there are mainly the following situations.
(1). If the spring pressure is too loose, the pressure should be adjusted tightly.
(2). If the knurling of the upper shaft is too deep, the upper shaft should be polished with a grindstone, but it should not be grinded too much. Too much grinding will make it difficult for oily cables.
(3). If the cable diameter is too small or the gap between the upper and lower shafts is too large, adjust the clearance between the two shafts properly.
Technical specificaition of copper wire stripper
|Wire diameter stripped||2-60mm|
|Feeding Hole||1 pieces|
|Output||20m per minute|
