2 Pieces Knife Cable Stripping Machine For Various Cable
Product Details:
Place of Origin: | Zhengzhou, China |
Brand Name: | TMS |
Certification: | CE, ISO |
Model Number: | MS-120 |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 set |
---|---|
Price: | USD840-880 per set |
Packaging Details: | Standard exported ply wooden case for cable stripping machine |
Delivery Time: | 10 work days |
Payment Terms: | L/C, T/T, Western Union |
Supply Ability: | 100 sets per month |
Detail Information |
|||
Name: | Cable Stripping Machine | Function: | Strip Various Cable |
---|---|---|---|
Motor: | 5.5kw | Cables Diameter: | 20-120mm |
Size: | 660*680*1500mm | Blade: | 2 Pieces |
Wire Hole: | 1 Pieces | Weight: | 250kg |
High Light: | 2 Pieces Knife Cable Stripping Machine,dia 120mm Cable Stripping Machine,2 Pieces Knife wire stripping machines |
Product Description

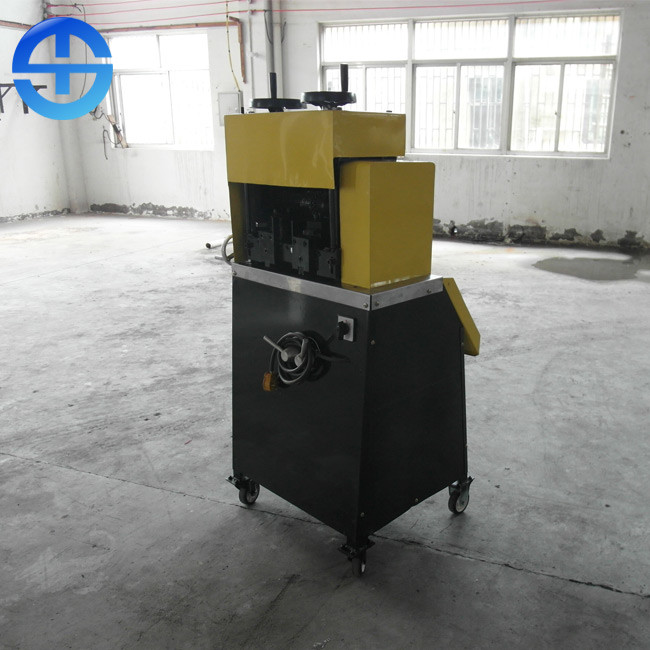

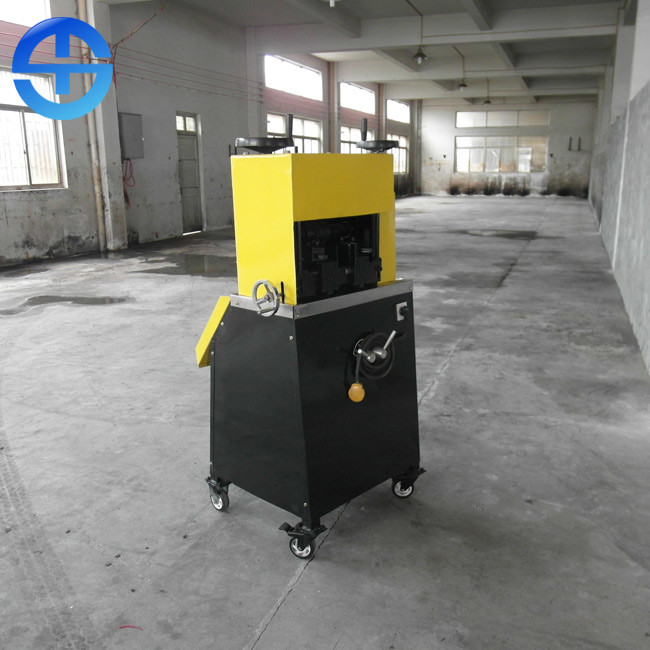

2 Pieces Knife Cable Stripping Machine For Various Cable
Introduction of cable stripping machine
Our company provide various types of cable stripping machine for you to strip the scrap wires and cables easily. They can not only strip wires with plastic cover but also can make rubber cable stripped easily. The metal core can be either copper wires or aluminum wires. Copper wire stripper is composed of Frame, knife shaft, rolling shaft, inlet hole, gear, motor etc.
This model MS-120 cable stripping machine can strip many types of cables including electric cables, high-tension cables and optic fiber cables, etc.. The motor is 4*4, 3 Phase. Gearbox can provide 4 speeds which are adjusted according to your need. It has forward and reverse running switch.
1. Screws for Blades
2. Screws for Blade Bases
3. Screws for Blade Base Frame
4. Lower Roller
5. Upper Roller 6. Blades
A. Adjusting Handle for Upper Roller Height
B. Adjusting Handle for Blade Distance
C. Adjusting Handle for Blade Height
Features of cable stripping machine
1. Small dimensions, easy to move.
2. High efficiency, low power consumption.
3. Easy operation and easy maintenance.
4. Various voltages are optional and customized as required.
Operation Steps of cable stripping machine
1. Grounding
Before running, the machine must be grounded to avoid danger of electricity leakage in operation.
2. Loding
Before running, the machine must be connected to power supply,
then turn on the switch and make it idle for a while to see if there is any noise. At the same time, check if all running parts are running in good condition and whether the running direction is the in compliance with the switch direction.
If there is abnormal noise, cut off the power and find the noise origin and solve the problem; if you do not know how to solve the problem please contact the manufacturer.
Technical data of cable stripping machine
Model | MS-120 |
Motor | 5.5kw |
Cable diameter stripped | 20-120mm |
Blade | 2 pieces |
Wire Hole | 1 pieces |
Size | 660*680*1500mm |
Weight | 250kg |
Productivity | 1000-3000kg/day |
